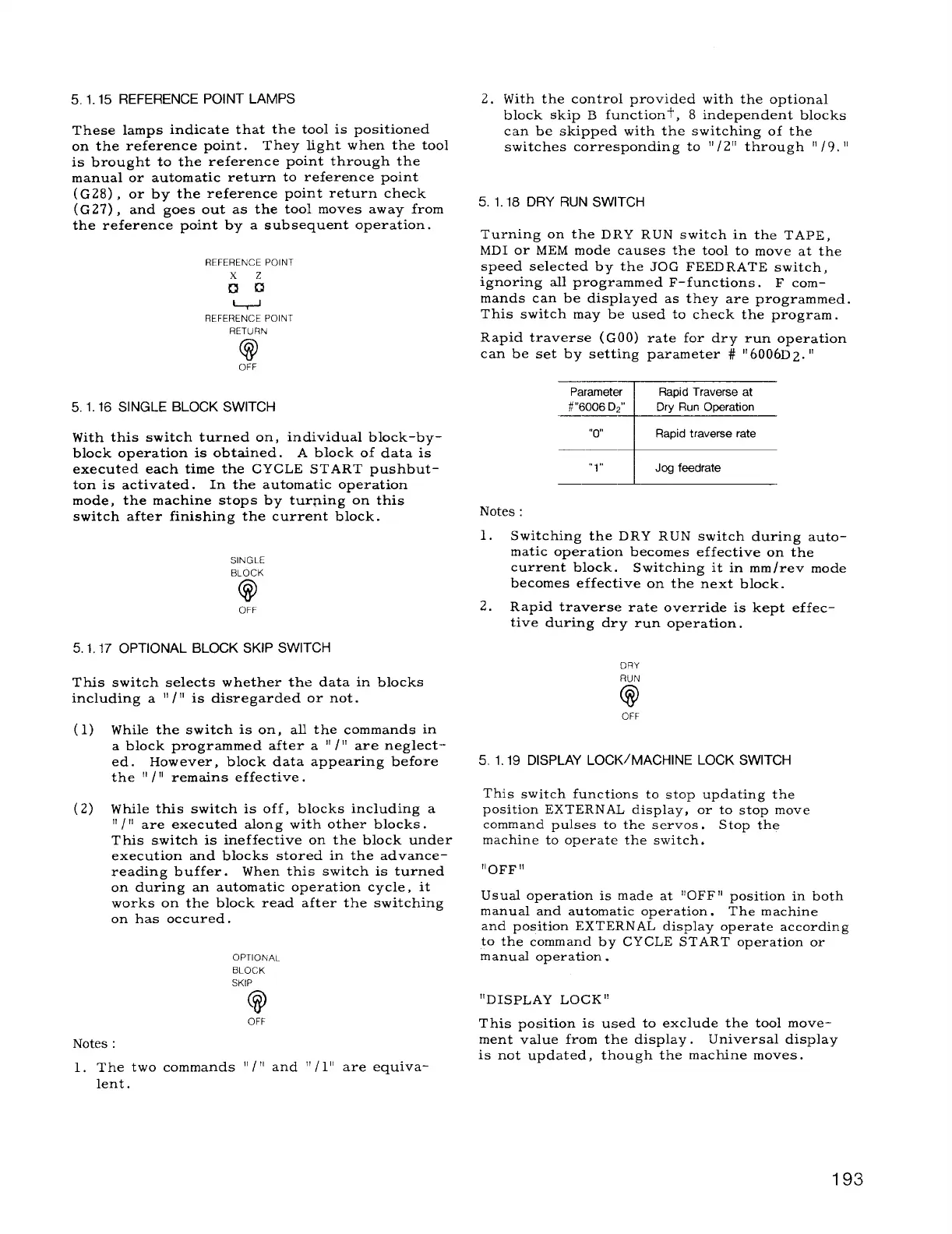

5.1.15 REFERENCE POINT LAMPS
These lamps indicate that the tool is positioned
on the reference point.
They light when the tool
is brought to the reference point through the
manual or automatic return to reference point
( G28) , or by the reference point return check
(G 27) , and goes out as the tool moves away from
the reference point by a subsequent operation.
REFERENCE POINT
:a
Q
REFERENCE POINT
RETURN
@
oFF
2. With the control provided with the optional
block skip B function~, 8 independent blocks
can be skipped with the switching of the
switches corresponding to “/2“ through “/9.“
5.1.18
DRY RUN SWITCH
Turning on the DRY RUN switch in the TAPE,
MDI or MEM mode causes the tool to move at the
speed selected by the
JOG FEED RATE switch,
ignoring all programmed F–functions.
F com-
mands can be displayed as they are programmed.
This switch may be used to check the program.
Rapid traverse ( GOO) rate for dry run operation
can be set by setting parameter # “6006D2. “
5.1.16 SINGLE BLOCK SWITCH
With this switch turned on, individual block-by-
block operation is obtained. A block of data is
executed each time the CYCLE START pushbut–
ton is activated.
In the automatic operation
mode, the machine stops by turping on this
switch after finishing the current block.
SINGLE
BLOCK
5.1,17 OPTIONAL BLOCK SKIP SWITCH
This switch selects whether the data in blocks
including a “/” is disregarded or not.
(1) While the switch is on, all the commands in
a block programmed after a “ /” are neglect-
(2)
ed.
However, block data appearing before
the “ /” remains effective.
While this switch is off, blocks including a
“/” are executed along with other blocks.
This switch is ineffective on the block under
execution and blocks stored in the advance–
reading buffer.
When this switch is turned
on during an automatic operation cycle, it
works on the block read after the switching
on has occured.
OPTIONAL
BLOCK
SKIP
OFF
Notes :
1. The two commands
“/” and “/1“ are equiva-
lent.
Parameter
Rapid Traverse at
#“6006
Dz”
Dry Run Operation
O I Rapid traverse rate
i
Notes :
1.
Switching the DRY RUN switch during auto-
matic operation becomes effective on the
current block.
Switching it in mm/rev mode
becomes effective on the next block.
2.
Rapid traverse rate override is kept effec-
tive during dry run operation.
DRY
RUN
OFF
5.1.19 DISPLAY LOCKIMACHINE LOCK SWITCH
This switch functions to stop updating the
position EXTERNAL display, or to stop move
command pulses to the servos . Stop the
machine to operate the switch.
“OFF”
Usual operation is made at “OFF” position in both
manual and automatic operation. The machine
and position EXTERNAL display operate according
to the command by CYCLE START operation or
manual operation .
“DISPLAY LOCK”
This position is used to exclude the tool move-
ment value from the display. Universal display
is not updated, though the machine moves.
