Yealink MP56 E2 - Hardware Component Instructions

2
3. Connect cables:
A
B
΋;
΄ΩίΠέΩΠί
Ϳ;ͰΑ
΋; ΄ΩίΠέΩΠί
Ϳ;ͰΑ
PC
PC PC
PC

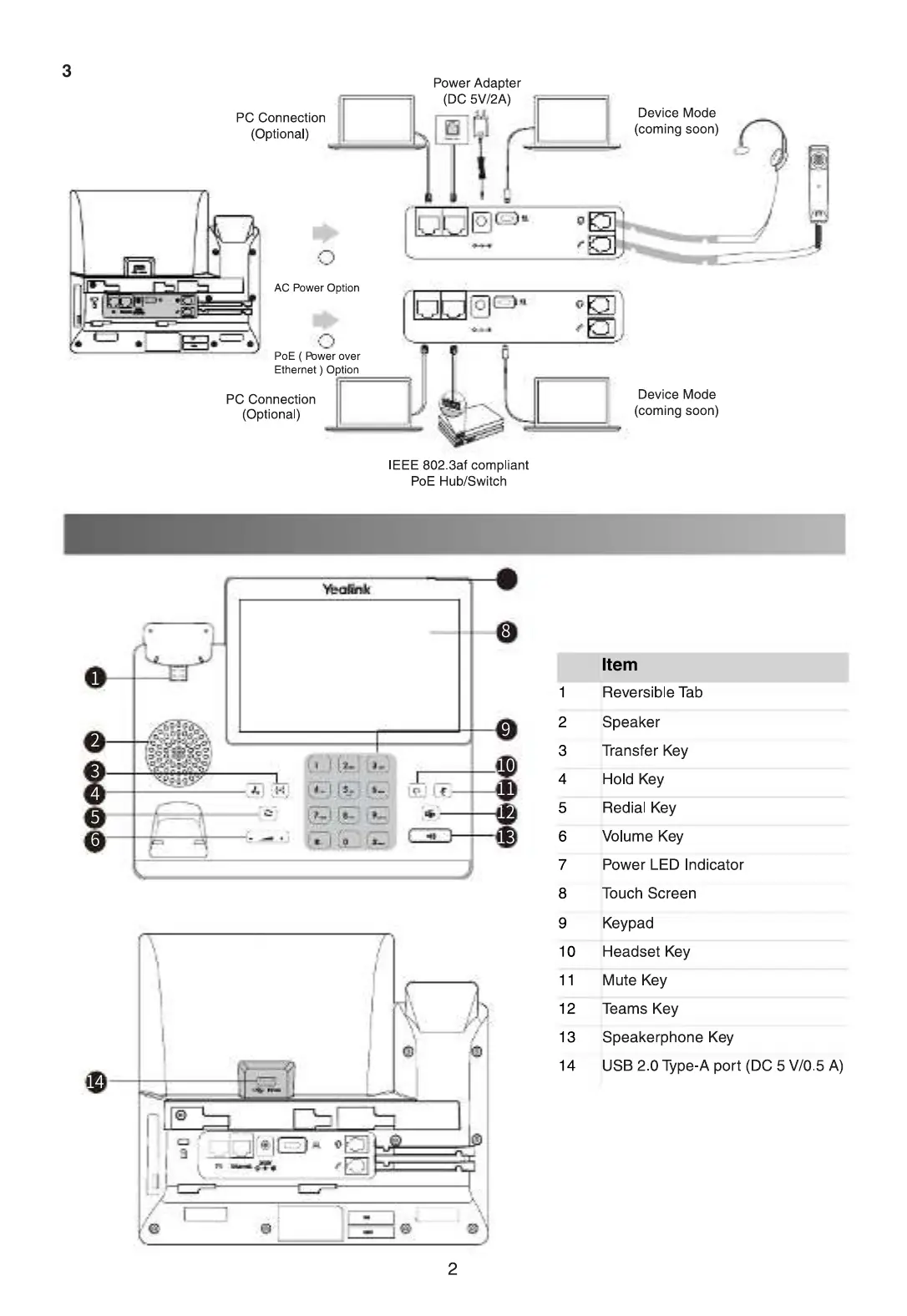

Hardware Component Instructions
AC Power Option
PoE ( Power over
Ethernet ) Option
Power Adapter
(DC 5V/2A)
IEEE 802.3af compliant
PoE Hub/Switch
PC Connection
(Optional)
PC Connection
(Optional)















Item
1
Reversible Tab
2 Speaker
3 Transfer Key
4 Hold Key
5 Redial Key
6 Volume Key
7 Power LED Indicator
8 Touch Screen
9 Keypad
10 Headset Key
11 Mute Key
12 Teams Key
13 Speakerphone Key
14 USB 2.0 Type-A port (DC 5 V/0.5 A)
Device Mode
(coming soon)
Device Mode
(coming soon)
