| Introduction | 10
Camera-Hub

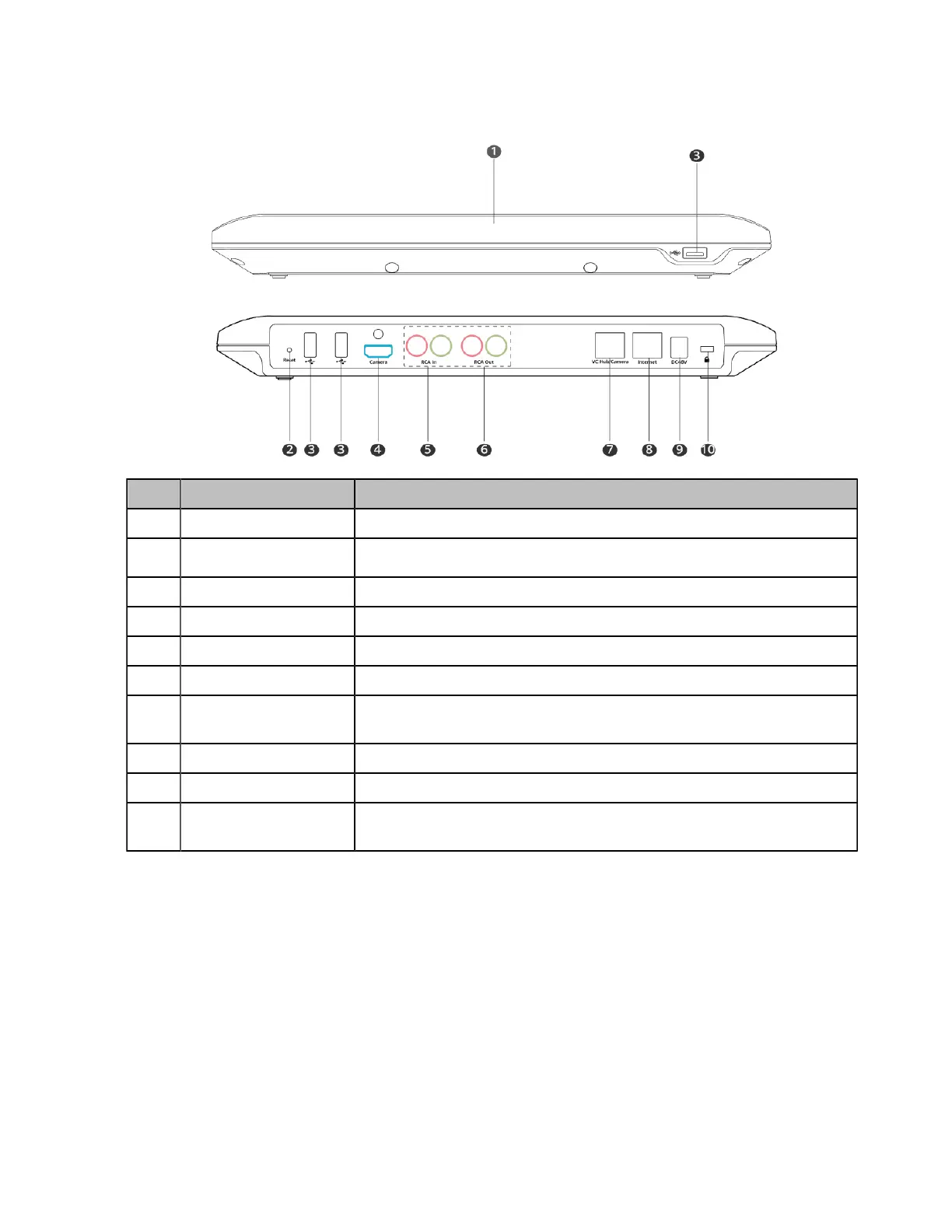

Port Name Description
1 LED Indicator Indicates different status of the system.
2 Reset Key
Resets to factory defaults.
3 USB port /
4 Camera Port /
5 RCA In Connects to an audio input device via a RCA cable.
6 RCA Out Connects to an audio output device via a RCA cable.
7 VC Hub/Camera Connect to audio devices via PoE switch (VCM34/VCM38, MSpeaker
II)
8 Internet port Connects to the switch to connect UVC84/UVC80.
9 DC48V port Connects to the power source via a power adapter.
10 Security Slot Creates a secure connection to Camera-Hub with a universal security
cable to lock Camera-Hub down.
