| Introduction | 12
Port Name Description
②
Line In port
Connects to an audio input device using a 3.5 mm audio
cable.
③
USB port Inserts the DD10 to connect to the CPW90.
④
Video Out port Connects to a PC as a video output.
⑤
Microphone port Connects to VCM34/VCM38 or connects to audio devices
via PoE switch. (cascaded star)
⑥
DC48V port Connects to the power source via a power adapter.
⑦
Reset Key Resets to factory defaults.
⑧
Security Slot Creates a secure connection to the camera with a
universal security cable to lock the camera down.

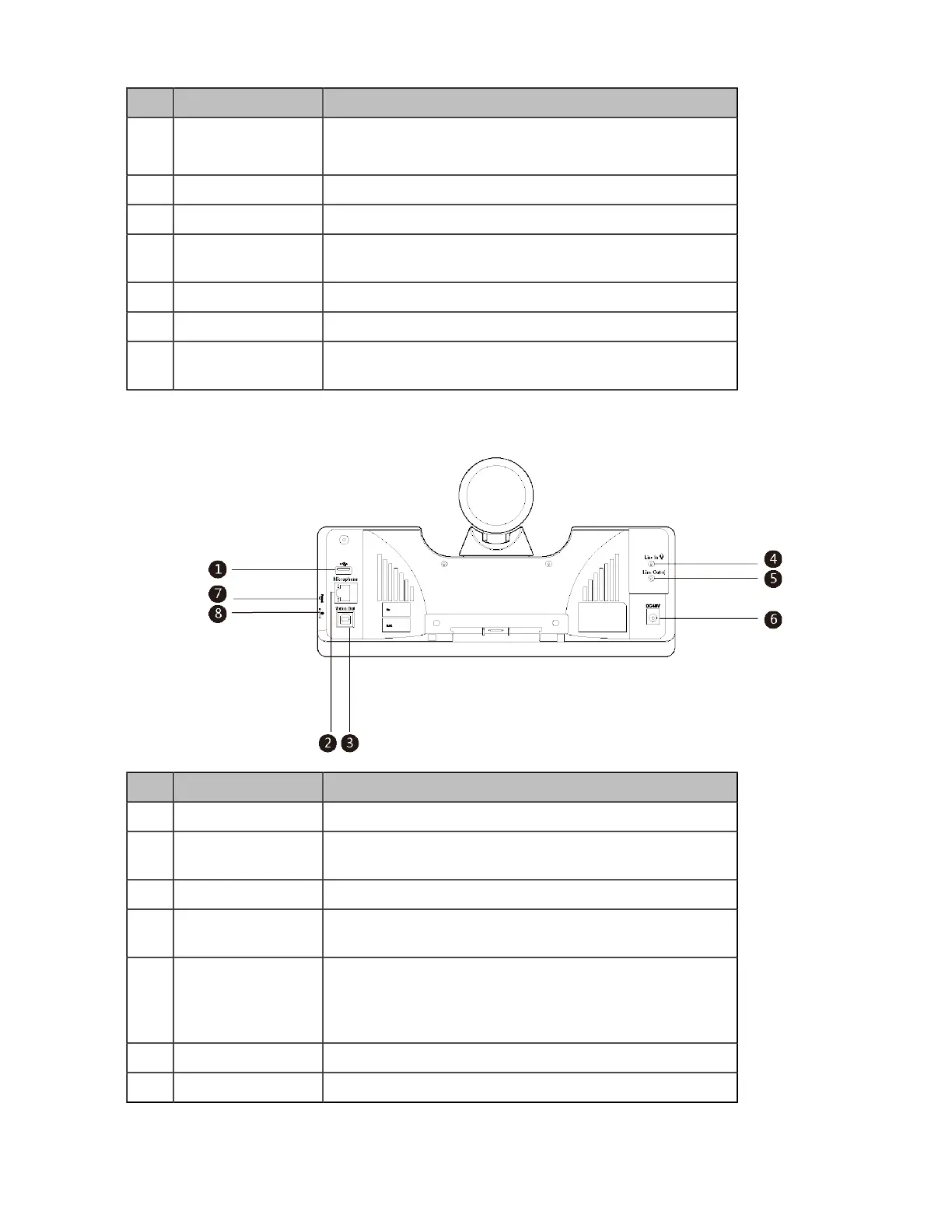

UVC50
Port Name Description
①
USB port (optional) Inserts DD10 to connect to CPW90.
②
Microphone port Connects to VCM34/VCM38 or connects to audio devices
via PoE switch. (cascaded star)
③
Video Out port Connects to a PC as a video output.
④
Line In port Connects to an audio input device using a 3.5mm audio
cable.
⑤
Line Out port
Connects to an audio output device using a 3.5mm audio
cable.
⑥
DC48V port Connects to the power source via a power adapter.
⑦
Reset Key Resets to factory defaults.
