Yealink MVC860 Deployment Guide

| Introduction | 12

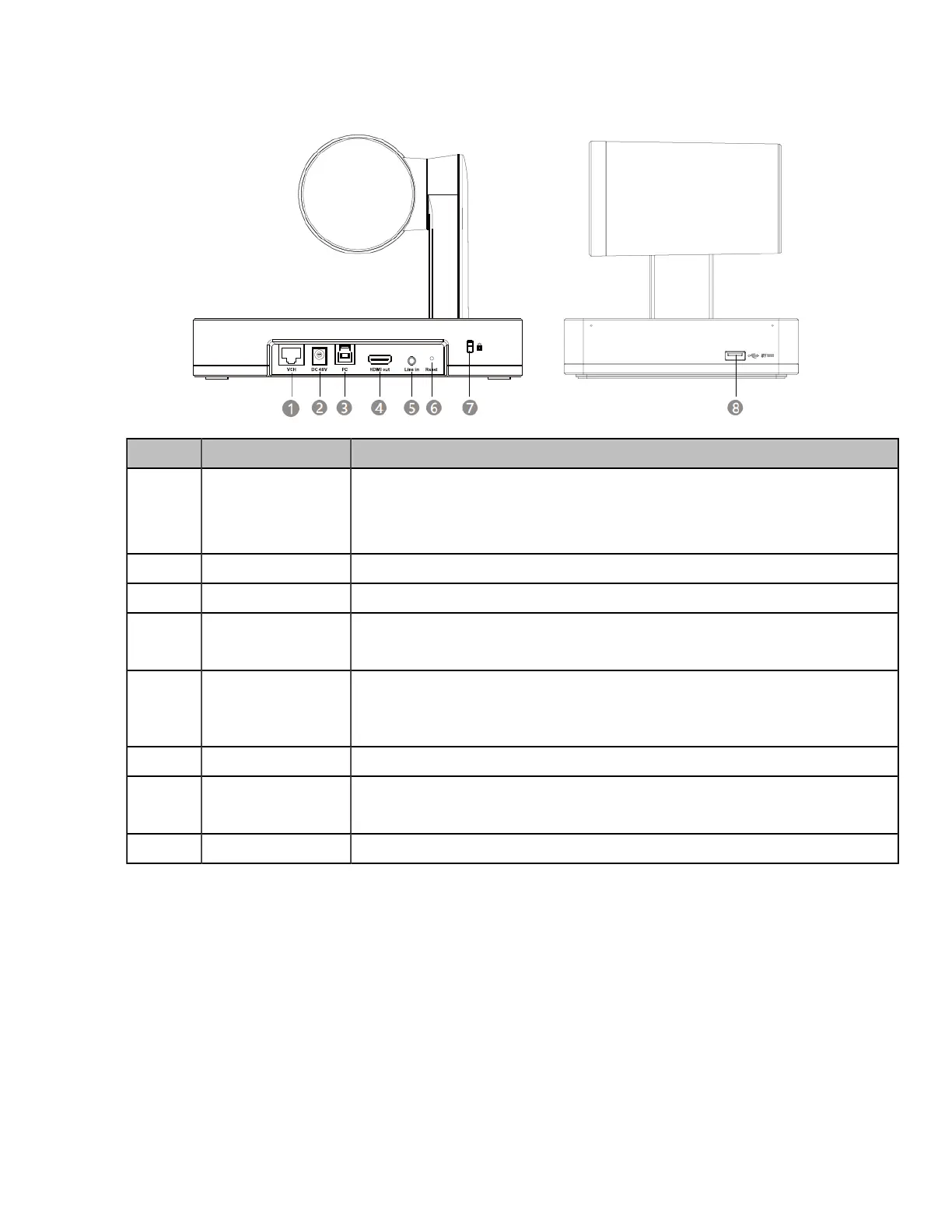

UVC86
Port Name Description
①
VCH Port
In the MVC system, connect to audio device (for example: VCM34).
In video conference system, connect to the endpoint (for example:
MeetingEye 800).
②
DC48V Connect to the power adapter.
③
PC Port Connect to a PC as video output.
④
HDMI out
In the VCS system, used for sharing content or camera image (it does not
apply to the MVC system).
⑤
Line in
The UVC86 can be connected to a third-party audio playback device via a
3.5mm audio cable, and the audio output from third-party audio device is
used as an audio reference signal for the UVC86 voice tracking.
⑥
Reset Reset the UVC86 to factory defaults.
⑦
Security slot Connect a universal security cable to the UVC86 so that you can lock the
UVC86 down.
⑧
USB-A Port Connect to DD10 or USB disk.

Yealink MVC860 Specifications

General

Bluetooth	Yes
Pan range	-100 - 100 °
Product type	Group video conferencing system
Product color	Black, Grey
Internal memory	8 MB
Tilt angle range	-90 - 40 °
Number of cameras	2
Number of persons	- person(s)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Megapixel	8 MP
Camera type	Dual camera
Sensor type	-
Digital zoom	1.7 x
Optical zoom	12 x
Combined zoom	20.4 x
Image sensor size	- \
AC input voltage	100 - 240 V
DC output current	0.7 A
DC output voltage	48 V
Power source type	AC
Processor family	Intel® Core™ i5
Operating system installed	Windows 10 IoT Enterprise
Storage media type	SSD
Total storage capacity	128 GB
Display diagonal	8 \
Touchscreen type	Capacitive
Display resolution	1280 x 800 pixels
Harmonized System (HS) code	85176990

Weight and Dimensions

Weight	6880 g
Camera weight	3270 g
Package depth	275 mm
Package width	420 mm
Package height	387 mm
Package weight	7540 g
Camera dimensions (WxDxH)	210 x 155.6 x 157.6 mm
