Yealink SIP-T23G Administrator's Guide

Advanced Features
482
Press OK on the phone to allow remote control. The phone will return to the previous screen.
Refresh the web page.

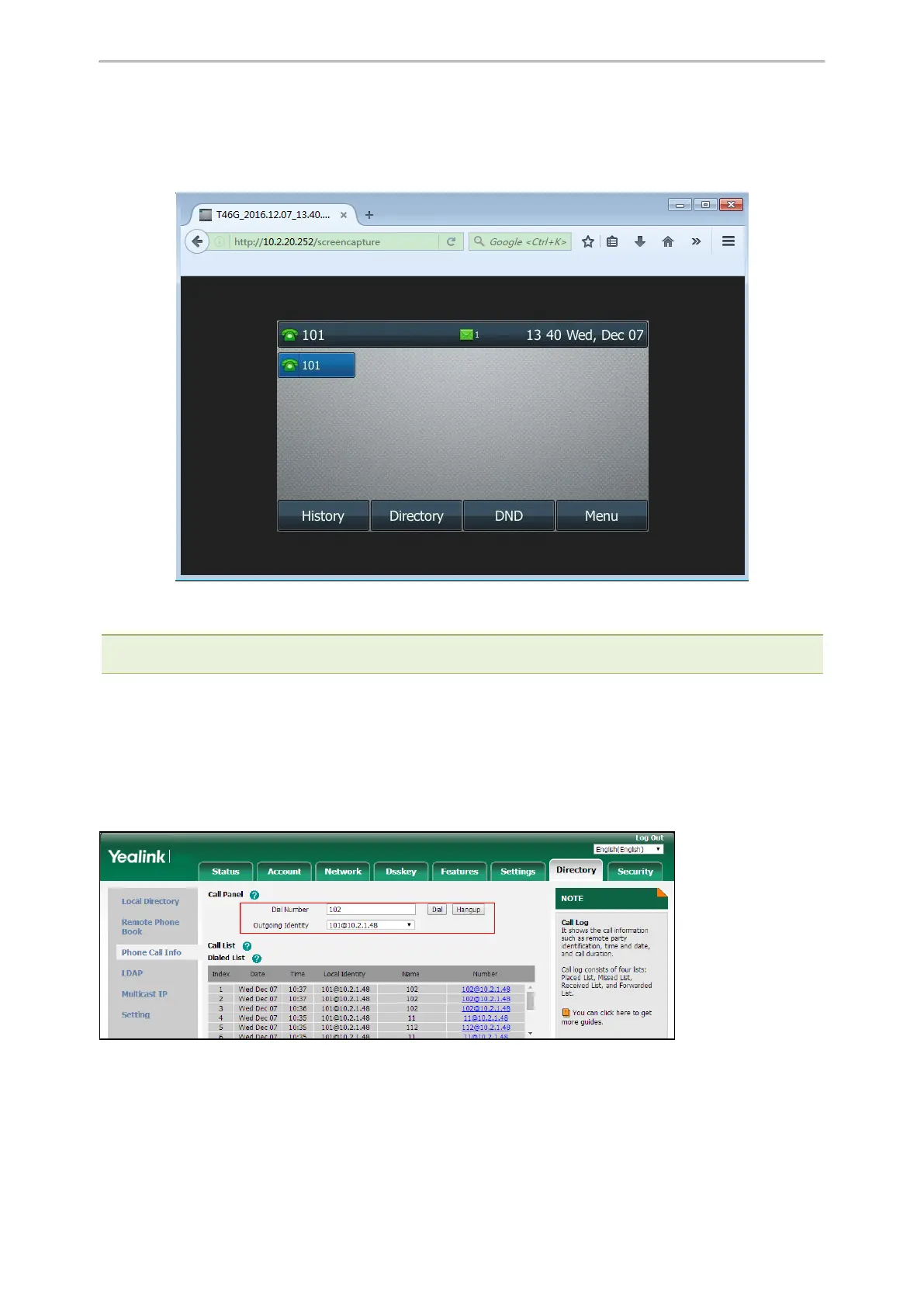

The browser will display an image of the phone’s current screen. You can save the image to your local sys-
tem.
l Else, the browser will display an image of the phone’s current screen directly. You can save the image to
your local system.
Note: Frequent capture may affect phone performance. Yealink recommends you to capture the phone screen display within
a minimum interval of 4 seconds.
Example: Placing a Call via Web User Interface
Procedure
1. Navigate to Directory > Phone Call Info.
2. Select the desired account from the Outgoing Identity drop-down menu.
3. Enter the callee’s number in the Dial Number field.
4. Click Dial to dial out the number.
The web user interface prompts “Call Success” and the phone will automatically dial out the number.
You can click Hang Up to end the call.

Yealink SIP-T23G Specifications

General

Backlight	Yes
Voice codecs	G.711a, G.722.2, G.726, G.729ab, iLBC
Volume control	Digital
Handset type	Wired handset
Product type	IP Phone
Product color	Black, Silver
Display resolution	132 x 64 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
AC adapter output voltage	5 V
Power consumption (typical)	1.56 W
Number of handles included	- pc(s)
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	188 mm
Width	209 mm
Height	150 mm
