Yealink SIP-T43U Recovery Guide

Recovery Mode on Yealink IP phones
4
Configuring the HTTP Server
This section shows how to configure a HTTP server for the windows system using the HFS tool. You can
download the HFS software online: http://www.snapfiles.com/get/hfs.html. If there is a HTTP server
installed on your local system, you can skip this section and go to the next.
Procedures
1. Create an HTTP root directory on the local system.
2. Place resource files to this root directory.
3. Double click the hfs.exe to start the application.

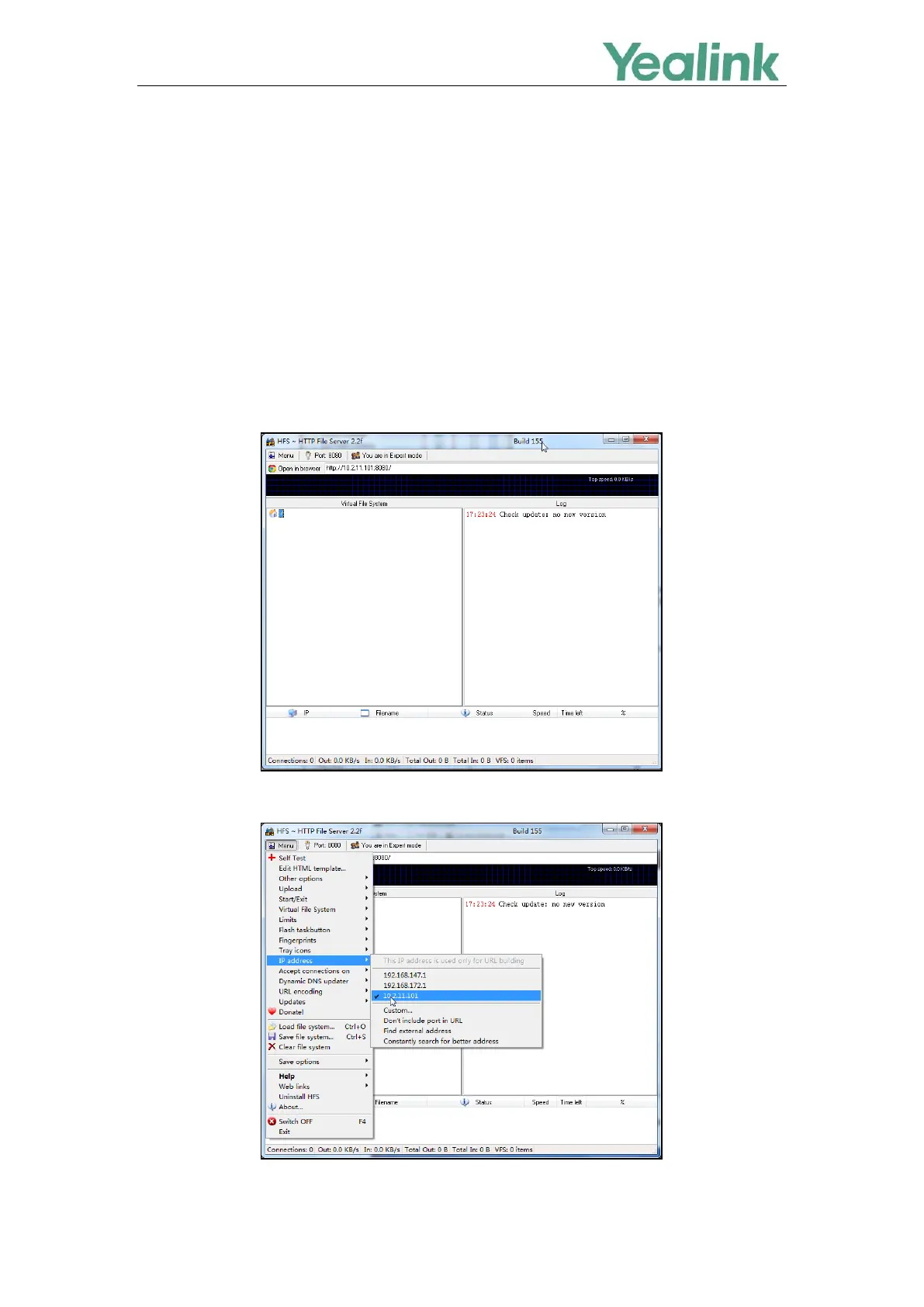

The main configuration page is shown as below:
4. Click Menu in the main page and select the IP address of the PC from IP address.

Yealink SIP-T43U Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Gray
Wall mountable	Yes
Sustainability certificates	REACH, RoHS
AC adapter input voltage	100 - 240 V
AC adapter output current	1.2 A
AC adapter output voltage	5 V
Power consumption (typical)	2.2 W
Bluetooth version	4.1
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP/TFTP/HTTP/HTTPS, IPv6, LLDP/CDP/DHCP VLAN
USB 2.0 ports quantity	2
Lines quantity	12 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	12
Voice codecs	AGC, AJB, AMR-NB, AMR-WB, G.711Mu, G.711a, G.723.1, G.726, G.729ab, OPUS, PLC, VAD, iLBC
Number of handles included	1 pc(s)
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	3.7 \
Display resolution	360 x 160 pixels
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	206.2 mm
Width	224.9 mm
Height	174.9 mm
Package depth	223 mm
Package width	246 mm
Package height	120 mm
