Yealink SIP-T43U Getting Started

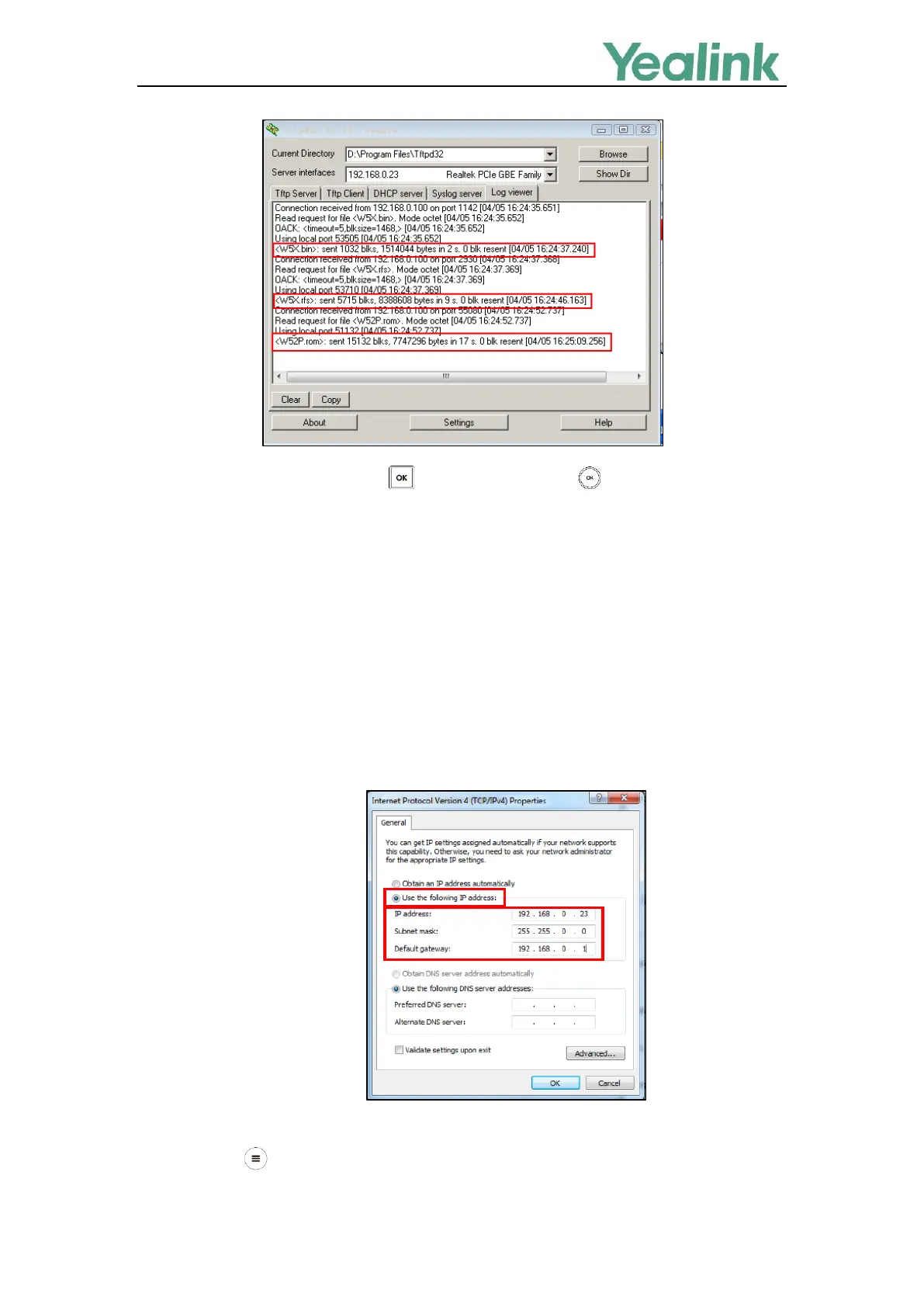

Recovery Mode on Yealink IP phones
12
4. After a handset is registered, press (for W52P/W56P base) or (for W60B base) on the
handset to verify the current firmware version.
For W80DM/W80B
For the W80DM/W80B, there is no screen to show information for you. The W80DM/W80B uses
192.168.0.23 as its default IP address, so you need to configure a static IP address for your local PC
where you have the TFTP server installed.
Procedures:
1. Configure the static IP address on your local PC.
It must be configured as below:
2. Click OK twice to save the settings.
3. Long press and reconnect the power adapter to trigger the recovery mode.
The W80DM/W80B will download and upgrade the firmware from the TFTP server.

Yealink SIP-T43U Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Gray
Wall mountable	Yes
Sustainability certificates	REACH, RoHS
AC adapter input voltage	100 - 240 V
AC adapter output current	1.2 A
AC adapter output voltage	5 V
Power consumption (typical)	2.2 W
Bluetooth version	4.1
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP/TFTP/HTTP/HTTPS, IPv6, LLDP/CDP/DHCP VLAN
USB 2.0 ports quantity	2
Lines quantity	12 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	12
Voice codecs	AGC, AJB, AMR-NB, AMR-WB, G.711Mu, G.711a, G.723.1, G.726, G.729ab, OPUS, PLC, VAD, iLBC
Number of handles included	1 pc(s)
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	3.7 \
Display resolution	360 x 160 pixels
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	206.2 mm
Width	224.9 mm
Height	174.9 mm
Package depth	223 mm
Package width	246 mm
Package height	120 mm
