Yeastar Technology NeoGate TG100 User Manual

NeoGate TG Series Installation Guide
http://www.yeastar.com 8/14

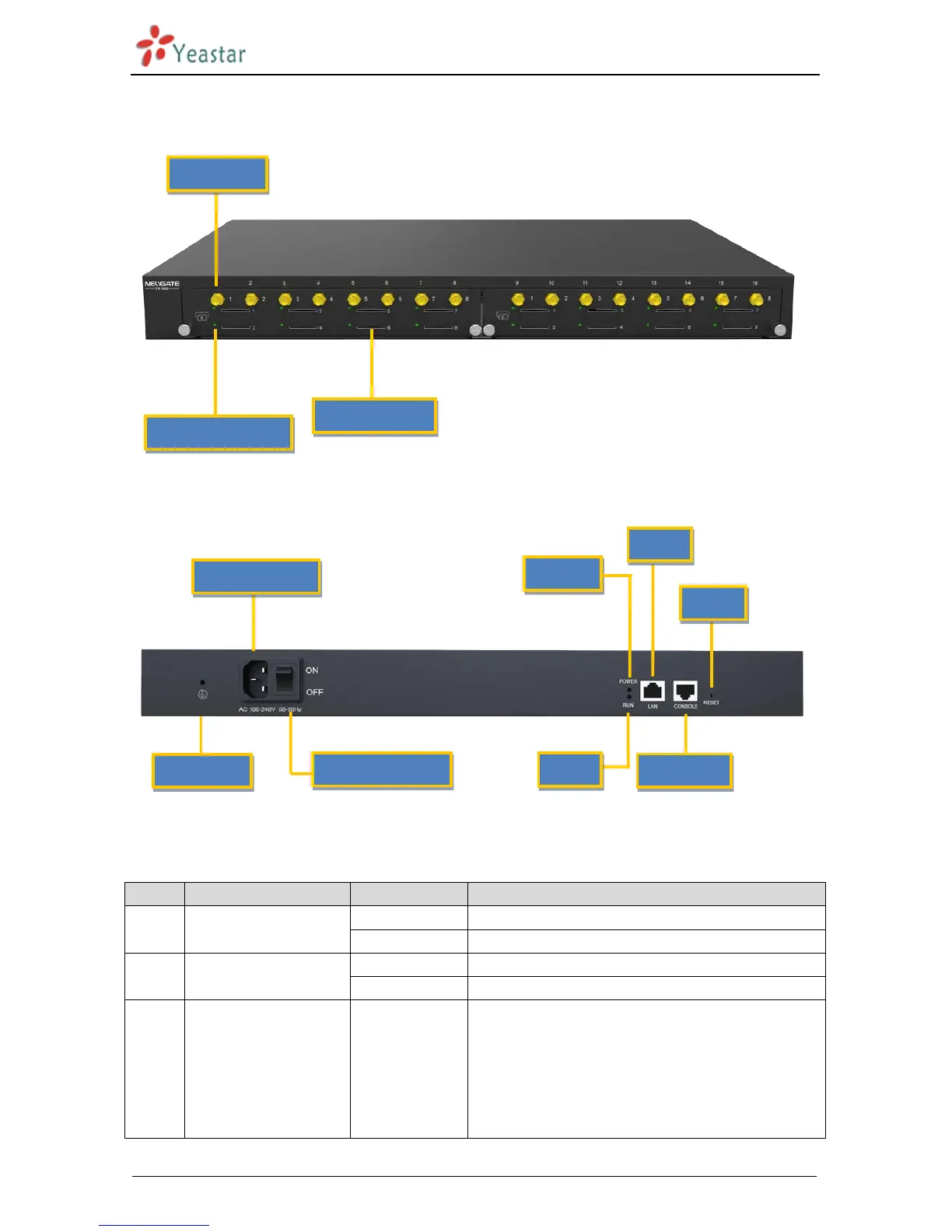

Figure 2-5 NeoGate TG1600 Front Panel
Figure 2-6 NeoGate TG1600 Rear Panel
LED
Indication
Status
Description
Power Power status
On
The power is switched on.
Off The power is switched off.
RUN NeoGate status Blinking NeoGate is running properly.
Not Blinking/Off NeoGate goes wrong.
1-16 GSM port status Green light The green light is solid green: the port is working
properly.
The green light is blinking: there is an ongoing call on
the port.
The green light is off: no SIM card is detected or the
port is not working properly.
GSM PORT STATUS
ANTENNA
SIM CARD SLOT
PROTECTIV
POWER INLET
POWER SWITCH
RUN
CONSOLE
RESET
POWER
LAN

Yeastar Technology NeoGate TG100 Specifications

General

Brand	Yeastar Technology
Model	NeoGate TG100
Category	Gateway
Language	English
