Yeti SB165 - Switch Infinity V2 Bearing Assembly

SB165 | OWNER’S MANUAL
12

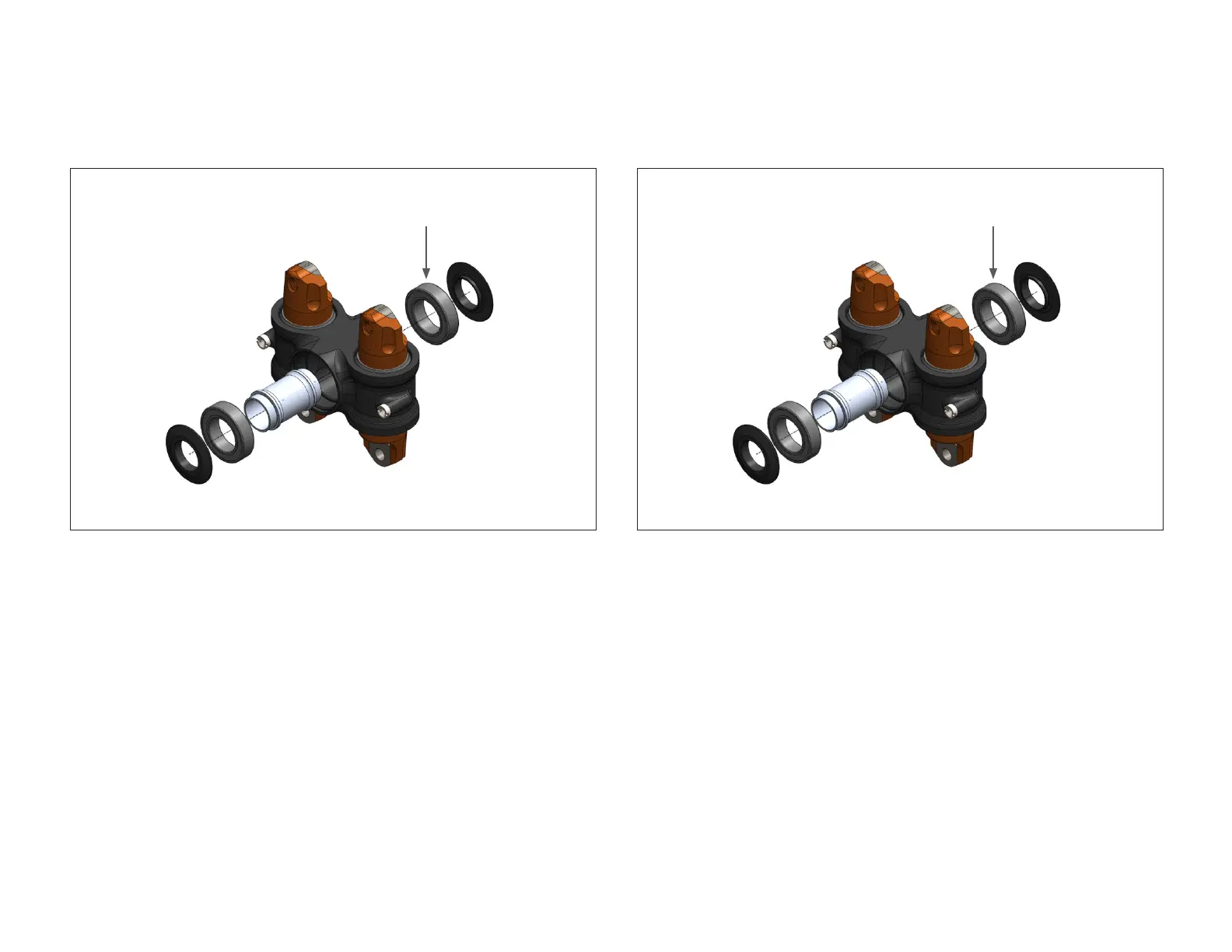

SWITCH INFINITY V2 BEARING ASSEMBLY
Remove dust caps on the outside of the bearings.
Remove non-drive side bearing.
It can be pushed out using a 17mm arbor installed through
the drive-side bearing, allowing the axle sleeve to push the
non-drive bearing out the far end.
Remove axle sleeve from drive side bearing.
Remove drive side bearing.
Press drive side bearing into Switch Innity body.
Slide axle sleeve into drive side bearing.
Press non-drive side bearing onto sleeve.
Replace bearing caps.
1 1
2 2
3
3
3
4
4
BEARING INSTALLBEARING REMOVAL
DRIVE SIDE BEARING DRIVE SIDE BEARING
3
2
1
4
1
4
2
3
4
1
