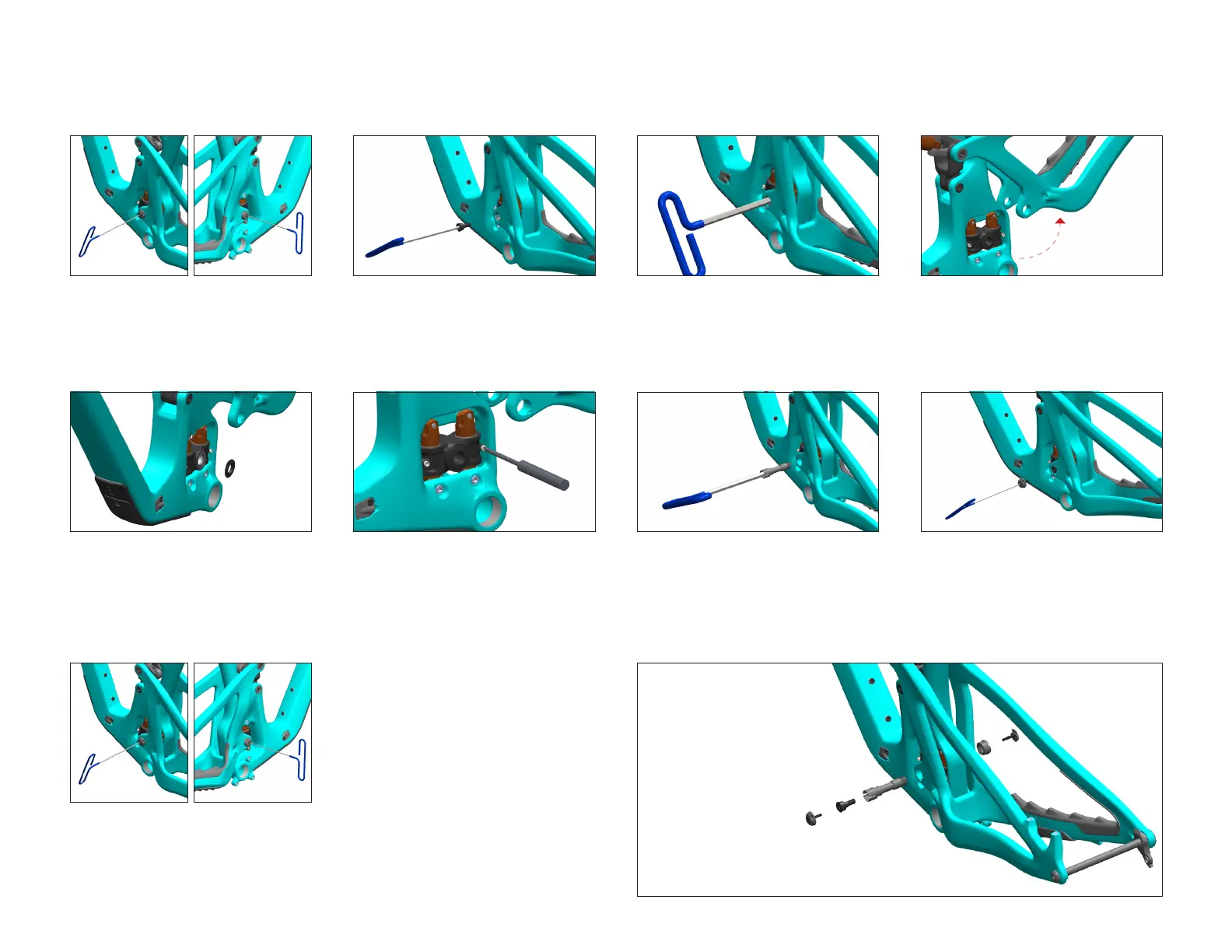

SWITCH INFINITY SERVICE
03
With a 10mm allen wrench, remove the Main
Pivot Collet Axle (3.1).
01
With a 2.5mm allen wrench, remove the four
clamps securing the shifter and brake housing to
the main pivot and front triangle. You may also
need to loosen the clamps at the head tube ports.
04
Rotate your swingarm upwards to expose the
Switch Innity Link and access both grease zerks.
With a clean rag and mild detergent, clean any
mud, dust, or debris off the Switch Innity Link.
02
With a 5mm allen wrench, remove the main pivot
Collet Wedge Bolt (3.9).
07
Apply assembly grease to the Main Pivot Collet
Axle (3.1) shaft and head and apply anti-seize to
the threads. Lower the swing arm and re-install
your Main Pivot Collet Axle (3.1). Torque: 25 Nm.
09
Re-install the housing clamps at the main pivot.
Place a single clamp onto the shifter housing
and secure with a M4 x 16L screw. Place a clamp
and clamp base around the brake housing and
secure with a M4 x 25L screw. Tighten until snug.
06
Using a needle-type grease gun, push new
grease into the two Switch Innity grease ports
until you see fresh grease extruding from the
shaft seals. Wipe off any excess grease that was
pushed out of the seals.
08
Apply assembly grease to the Main Pivot Collet
Wedge head and threads. Install into the Main
Pivot Collet Axle (3.1). Torque: 14 Nm.
EXPLODED VIEW
A Clamps
B Collet Wedge Bolt (3.9)
C Main Pivot Collet Axle (3.1)
D Main Pivot Collet Wedge
A
A
B
C
D
05
Remove the two dust caps from the Switch
Innity Link. Clean any debris or dust off the
dust caps and bearing races in the Switch
Innity Link. Reinstall dust caps when nished.
