SB165 | OWNER’S MANUAL
14
SEAT POST SET-UP

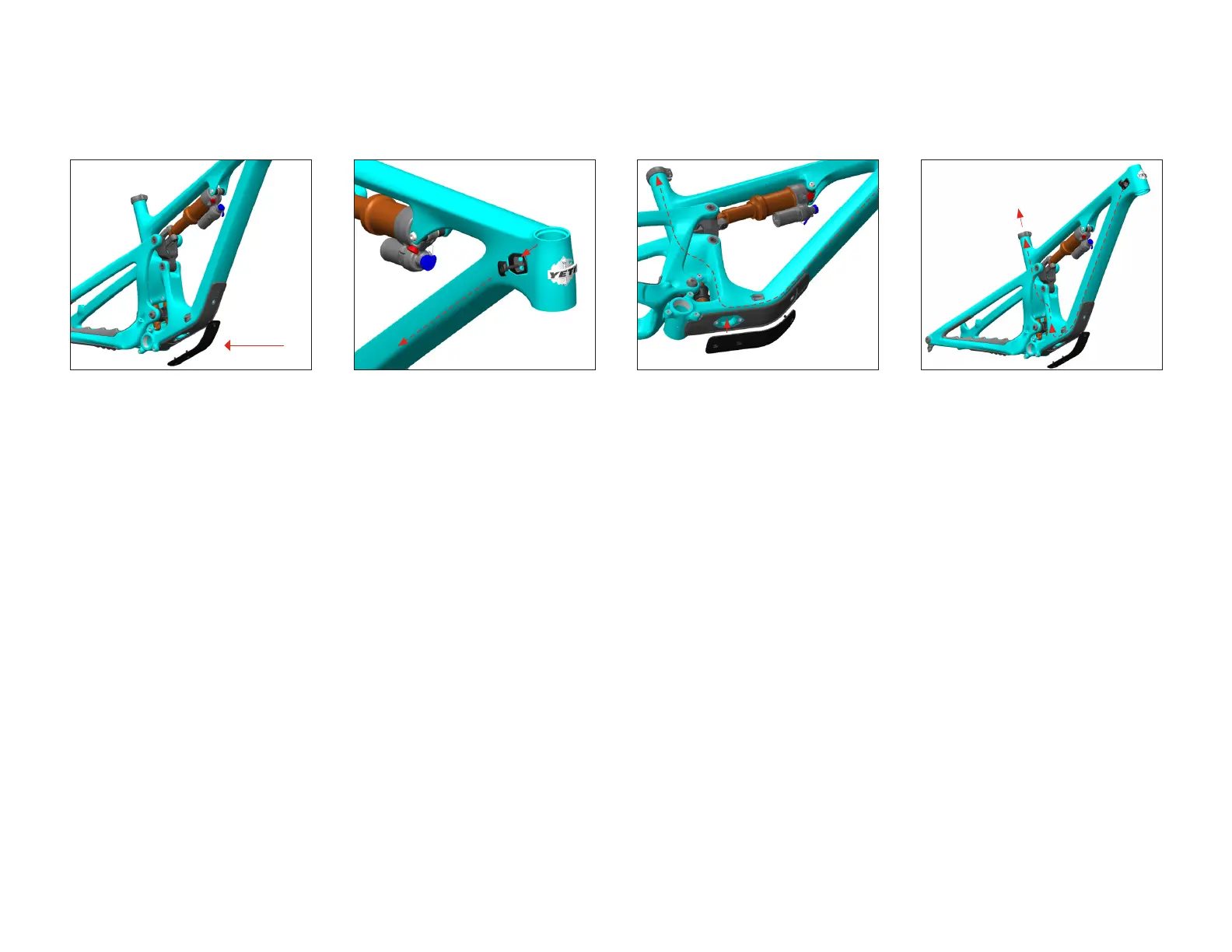

01
With a 3mm allen wrench, remove the outer
plastic downtube protector.
02
Install your seatpost housing into the drive-side
head tube port, pushing until it exits near the
downtube cable port access hole.
STANDARD ROUTING SET-UP
04
While pushing the housing into the head tube
port, continue guiding the cable up the seat
tube through the access hole until the housing
exits the seat tube.
03
The hole under the downtube protector
provides an access point to use your nger to
help push the housing around the bend in the
frame up into the seat tube.
