Yeti SB165 - Exploded View and Parts List; Component Diagram and List

SB165 | OWNER’S MANUAL
17
3.27
3.37
3.11
3.12
3.13
3.34
3.25
3.8
3.7
3.29
3.33
3.26
3.8
3.6
3.9
3.1
2
3.29
3.33
3.4
3.9
3.5
3.17
3.21
3.19
3.20
3.2
3.5
3.3
3.16
3.5
3.2
3.35
3.15
3.22
3.23
3.14
3.10
3.15
3.24
3.39
3.38
3.36
3.31
3.2
EXTRA PARTS
SUPPLIED IN KIT
3.20
3.19
3.21
3.18
3.27
3.28
3.33
3.29
3.2
3.26
3.30
3.32
3.31
3.26
4
3.40
2.2
2.3
1.2
3.16.2
3.16.3
3.16.2
3.22.2
ITEM NO. VIP/YETI PART NUMBER STOCK CODE DESCRIPTION DESCRIPTION MANDARIN VENDOR VENDOR P/N PREPARATION
TORQUE
[NM]
TORQUE
[in-lb]
UNIT QTY.
1 09266 ASSY, SB160 FT, PURCH 1
1.1 08285 [MASTER] FRONT TRIANGLE 1
1.1.4.7.9 06558
ENVELOPE, 2022 FOX 34 ST, 44 OFFSET,
FIT4+GRIP
1
1.2 VIP 09658 200020419 DT GUARD, MY23 INNER, RUBBER VELO VLF-I-1479 1
2
14883 ASSY, SB165 G1.3 RT, PURCH 1
2.1 12748 [MASTER] SWINGARM 1
2.1.11 VIP 14838 300040571 UPPER CS/SS PROTECTOR, 165MX VELO VLF-C-1763e 1
2.2 VIP 14838 300040571 UPPER CS/SS PROTECTOR, 165MX VELO VLF-C-1763e 1
2.3 VIP 09169 200020405 LOWER CS PROTECTOR, SHARED VELO VLF-I-1437 1
3
14882 SMALL PARTS KIT, SB165 G1.3 1
3.1 YETI 07286 300030361 COLLET AXLE, 15MM X 58.5L, M15X1.5
軸心插銷
PARTS
BADGER
TBD
GREASE SHAFT + LOCTITE 243
ON THREADS
25 177 1
3.2 YETI 07287 300030362
COLLET NUT, M15, 9.5 THICK, ROUND
CAP
PARTS
BADGER
300030362 LIGHTLY GREASE EXTERIOR 4
3.3 YETI 07856 300030364
SHOULDER SCREW, 15 X 27.35L, M15
THREAD, SS PIVOT
PARTS
BADGER
GREASE SHAFT + LOCTITE 243
ON THREADS
25 177 2
3.4 YETI 08096 300030376 COLLET AXLE 15MM, 43.0L
軸心插銷
PARTS
BADGER
TBD
GREASE SHAFT + LOCTITE 243
ON THREADS
25 221 1
3.5 YETI 08098 300030365 RACE EXTENDER, 25 X 15.1 X 3.35
PARTS
BADGER
TBD
LIGHTLY GREASE UNDER
FLANGE
4
3.6 YETI 08446 300030366
CLAMP BASE, 23MM X 3.5T, BRAKE
HOUSING
PARTS
BADGER
1
3.7 YETI 08465 300030367
COLLET NUT, M15 X 1.5, SHIFTER HOSE
CLAMP
PARTS
BADGER
LIGHTLY GREASE EXTERIOR 1
3.8 YETI 08467 300030368 CLAMP CAP, HOUSING, G1.3
PARTS
BADGER
2
3.9 YETI 09003 300030378
COLLET WEDGE SUB-ASSEMBLY 15MM,
M4 THREADED WEDGE BOLT
PARTS
BADGER
GREASE BOLT WEDGE AND
THREADS
14 124 2
3.10 YETI 01445 300040486 COLLET WEDGE SUB-ASSEMBLY 10MM
軸心插銷
YOZU YETI-300040486
GREASE BOLT HEAD, WEDGE,
AND THREADS
8 71 1
3.11 YETI 01111 300030057 SHCS, M6 X 1.0, 20L
螺絲
YOZU 582-060S-200
BLUE NYLOK PATCH +
LOCTITE 243
12 106 4
3.12 YETI 01113 300030214 WASHER 6.3 X10.0 X 1.0 MM
白鐵墊片 6.2x10x1mm
CHUNG HO 6.2X10X1MM SUS 4
3.13 YETI 10020 200020422
ASSY, SWITCH INFINITY, G1.3
MECHANISM, FACTORY SERIES
FOX 1
3.14 YETI 01448 300030296 COLLET AXLE M10X1.0, 30.5L X 10.5T
軸心插銷
YAMANO 01448 GREASE + LOCTITE 243 15 133 1
3.15 YETI 01467 300030375
SHOCK EXTENDER BEARING
EXTENSION
墊片 18.5X5.25MM
PARTS
BADGER
YETI-300030375
LIGHTLY GREASE UNDER
FLANGE
2
3.16 YETI 14881 TBD ASSY, SB165 MX G1.3 LINK 1
3.16.1 13920 LINK, SB165, 20230516 SURFACES 1
3.16.2 YETI 00839
HNA00000BA0
0000000000
BEARING, 3802-2RS, 15 X 24 X 7 ABI 4
3.16.3 YETI 08097 300030369 SPACER, 15.2 X 17 X 7.3L
PARTS
BADGER
1
3.17 YETI 09358 300030372 BOLT, FEMALE, 8 X 41.0, M6 THREAD
鈦螺母
PARTS
BADGER
YETI-300030372 1
3.18 YETI 09357 300030371 BOLT, FEMALE, 8 X 45.0, M6 THREAD
鈦螺母
PARTS
BADGER
YETI-300030371 LIGHTLY GREASE SHAFT 1
3.19 YETI 09356 300030370
BHCS, CUSTOM, M6 X 1.0, 12L,
STAINLESS
鈦製圓頭螺絲 M6x12mm
PARTS
BADGER
YETI-300030370 NYLON + LOCTITE 243 10 88.5 2
3.20 YETI 00790 300030062 WASHER 6.5 X 12.5 X 0.5 MM
白鐵墊片 6.5x12.5x0.5mm
CHUNG HO 6.5X12.5X0.5MM SUS 2
3.21 YETI 00761 300030069 WASHER 8.5 X 12.5 X 0.5 MM
白鐵墊片 8.5x12.5x0.5mm
CHUNG HO 8.5X12.5X0.5MM SUS 2
3.22 02150 200020323
ASSY, SHOCK EXTENDER_60MM,
BOTTOM
避震器延長座組裝-下
(60MM)
1
3.22.1 YETI 01462 300040503 SHOCK EXTENDER BOTTOM [60MM]
避震器延長座-下 (60MM)
YAMANO 01462 1
3.22.2 YETI 01101 300020032
BEARING, 398 MAX DBL, 8 X 19 X
10/11
培林 8X19X10/11
ABI TBD 1
3.23 02151 200020322 ASSY, SHOCK EXTENDER_60MM, TOP
避震器延長座組裝-上
1
3.23.1 YETI 01463 300040502 SHOCK EXTENDER TOP [60MM]
避震器延長座-上 (60MM)
YAMANO 01463 1
3.23.2 YETI 01101 300020032
BEARING, 398 MAX DBL, 8 X 19 X
10/11
培林 8X19X10/11
ABI TBD 1
3.24 YETI 00984 300030374 SHOCK EYELET SPACER
套筒 15X12.55MM
PARTS
BADGER
YETI-300030374 1
3.25 YETI 04214 300030174 SCREW, FH, M4 X 0.7, 16L
內六角螺絲, M4 x 0.7,
15mm 長
SYUN
CHENG
NYLON PATCH 2.5 22 1
3.26 YETI 05875 300030177 SCREW, FH, M4 X 0.7, 25L
內六角螺絲, M4 x 0.7,
25mm 長
SYUN
CHENG
TBD NYLON PATCH 2.5 22 3
3.27 YETI 08402 300030357 SHCS, LOW PROFILE, M5 X 0.8, 16L
SYUN
CHENG
YETI-300030357
GREASE (H2O) / LOCTITE 243
(GUARD)
5 44 5
3.28 YETI 08534 300030358
WASHER 5.2 X 8.8 X 1.0 MM, STAINLESS
ED BLACK
白鐵墊片 5.2x8.8x1mm
SYUN
CHENG
5.2X8.8X1MM SUS
ED BLACK
2
3.29 YETI 04475 300040518
COVER-CABLE PORT, SINGLE, RIGHT
EXIT
下叉導線座, 內側
CHENG TE YETI-04475 3
3.30 YETI 05843 300040522 CLAMP, HT PORT DOUBLE, PA6
頭管導線座, 雙孔
CHENG TE YETI-05859-2 1
3.31 YETI 05843 300040521 CLAMP, HT PORT SINGLE, PA6
頭管導線座, 單孔
CHENG TE YETI-05859-1 2
3.32 YETI 05806 300040524
CABLE PORT COVER, HEAD TUBE, 2
PIECE
頭管導線座, 雙孔
CHENG TE YETI-05806 2
3.33 YETI 00843 300030173 SCREW, FH, M4 X 0.7, 10L
內六角螺絲, M4 x 0.7,
10mm 長
SYUN
CHENG
NYLON PATCH 2.5 22 3
3.34 YETI 03988 300060080 SRAM UNIVERSAL HANGER
SRAM Universal
後變速器吊耳
SRAM 00-7918-089-000 25 221 1
3.35 YETI 01951 300060078 ASSY, YETI SEAT CLAMP, BOLT ON, 31.6
座束
YAMANO 01951 1
3.36 YETI 05864 300040523 COVER, HT PORT, BLIND, PA6
頭管導線座
CHENG TE YETI-05864 1
3.37 YETI 09232 200020418 DT GUARD, MY23 OUTER, PA/ABS VLF-I-1478 1
3.38 YETI 08520 300040542
COVER-CABLE PORT, BLANK, RIGHT
EXIT
下叉導線座, 內側
CHENG TE YETI-08520 1
3.39 YETI 03101 300040510 FRAME PLUG, CABLE PORT CHENG TE 300040510 2
3.40 YETI 05745 100425009 AXLE, M12X1 X 174L, BOLT-ON, BLACK
GW
MANUFACT
URING
411K12B18YE001 POLYMER PATCH 15 133 1
4
YETI 09269 SB160 SHOCK ASSEMBLY FOX TBD 1
P. RUSSELL
LENGTH
<5
5-20
20-100
>100
ANGLE
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS IN MILLIMETERS
SIZE:
TITLE:
DWG. NO.
D
SCALE: 1:3
SHEET 1 OF 1
REV
ENGINEERING
DRAWN
APPROVAL STAMP
TOLERANCES
14884_MANUAL
A
ALL MODIFICATIONS MUST BE APPROVED BY YETI CYCLES
TOL.
0.1
0.2
0.5
1
0.5
DATE
4/5/2024
G. ARAMAYO
EXPL, SB165 G1.3 ASSY, ALL
P. RUSSELL
A A
B B
C C
D D
E E
F F
G G
H H
16
16
15
15
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1

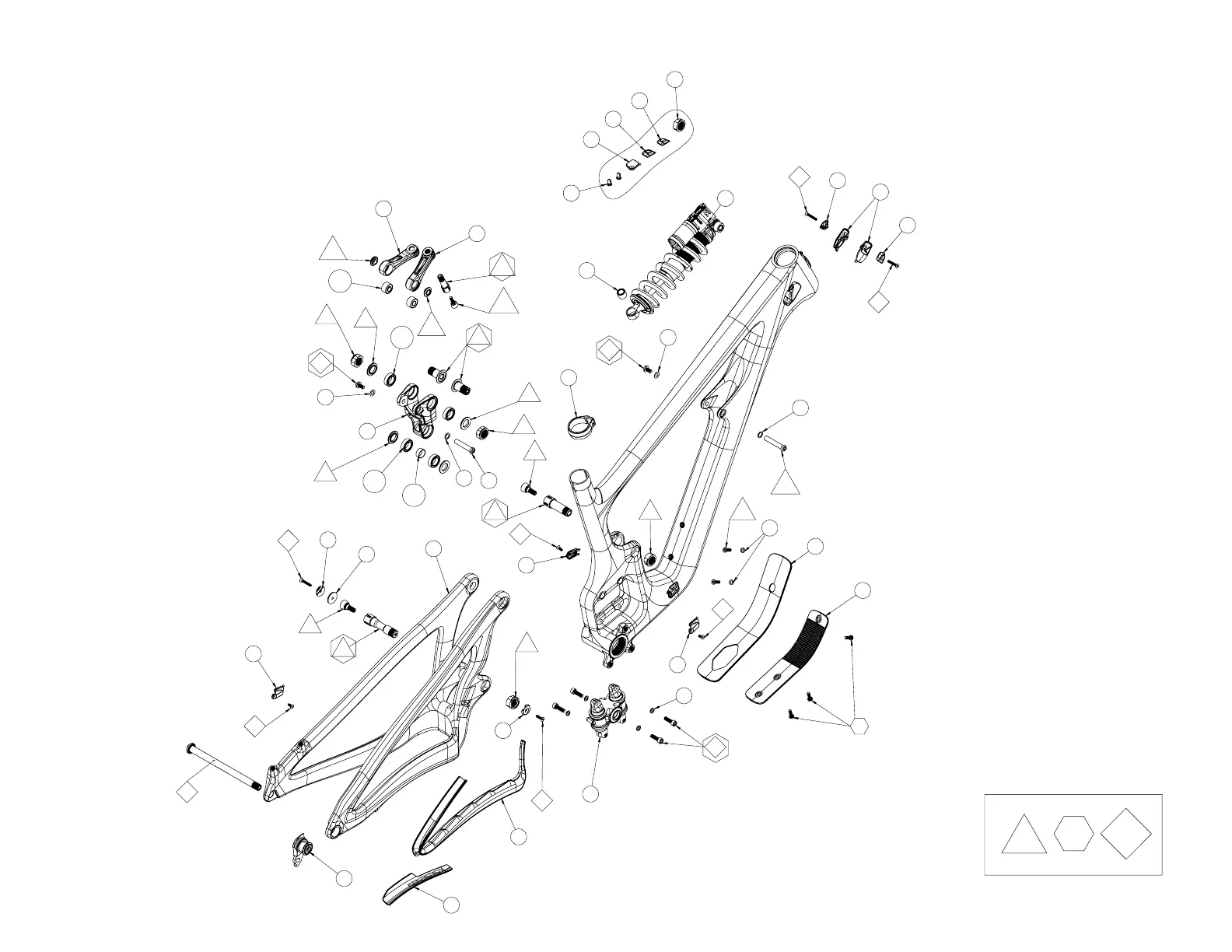

EXPLODED VIEW
3.10
3.11
3.12
3.23
3.8
3.7
3.25
3.18
3.21
3.31
3.27
3.26
3.25
3.2
1
3.27
3.31
3.4
3.9
3.20
3.19
3.16
3.15
3.22
4
3.1
3.9
3.6
3.8
3.24
3.32
3.31
3.27
3.13
3.3
3.17
3.2
3.5
3.5
3.21
3.14
3.20
3.19
3.2
3.5
3.30
3.29
3.24
3.24
3.28
1.1
2.1
3.33
3.35
EXTRA ITEMS SUPPLIED IN KIT
3.36
3.34
3.29
3.2
3.37
3.38
PREP KEY
GREASE
LOCTITE
NYLON
PATCH
ITEM NO. STOCK CODE DESCRIPTION
TORQUE
[NM]
UNIT QTY.
1
SB120 FRONT TRIANGLE ASSEMBLY
1
1.1
SB120 FRONT TRIANGLE ASSEMBLY
1
1.1.4.6.9 1
2
SB120 SWINGARM ASSEMBLY
1
2.1
SB120 SWINGARM
1
3
SB120 SMALL PARTS ASSEMBLY
1
3.1 300030361 COLLET AXLE, 15MM X 58.5L, M15X1.5 20 1
3.2 300030362
COLLET NUT, M15, 9.5 THICK, ROUND
CAP
4
3.3 300030364
SHOULDER SCREW, 15 X 27.35L, M15
THREAD, SS PIVOT
20 2
3.4 300030376 COLLET AXLE 15MM, 43.5L 20 1
3.5 300030365 RACE EXTENDER, 25 X 15.1 X 3.35 4
3.6 300030366
CLAMP BASE, 23MM X 3.5T, BRAKE
HOUSING
1
3.7 300030367
COLLET NUT, M15 X 1.5, SHIFTER HOSE
CLAMP
1
3.8 300030368
CLAMP CAP, HOUSING
2
3.9 300030378
COLLET WEDGE SUB-ASSEMBLY 15MM,
M4 THREADED WEDGE BOLT
14 2
3.10 300030057 SHCS, M6 X 1.0, 20L 12 4
3.11 300030214 WASHER 6.3 X10.0 X 1.0 MM 4
3.12 200020422
ASSY, SWITCH INFINITY,
MECHANISM, FACTORY SERIES
1
3.13 300030375
SHOCK EXTENDER BEARING
EXTENSION
2
3.14 200020420
SB120 LINK ASSEMBLY
1
3.14.1 300040539
SB120 LINK
1
3.14.2
HNA00000BA0
0000000000
BEARING, 3802-2RS, 15 X 24 X 7 4
3.14.3 300030369 SPACER, 15.2 X 17 X 7.3L 1
3.15 200020421 ASSY, SHOCK EXTENDER, SB120 1
3.15.1 300040543
SHOCK EXTENDER, SB120, 25MM
1
3.15.2 300020032
BEARING, 398 MAX DBL, 8 X 19 X
10/11
2
3.16 300030377
SHOULDER SCREW, M10 X 23L, SHOCK
EYELET
12 1
3.17 300030372 BOLT, FEMALE, 8 X 41.0, M6 THREAD 1
3.18 300030371 BOLT, FEMALE, 8 X 45.0, M6 THREAD 1
3.19 300030370 SCREW, MALE, M6X12.0MM 10 2
3.20 300030062 WASHER 6.5 X 12.5 X 0.5 MM 2
3.21 300030069 WASHER 8.5 X 12.5 X 0.5 MM 2
3.22 300030374 SHOCK EYELET SPACER 1
3.23 300030174 SCREW, FH, M4 X 0.7, 16L 2.5 1
3.24 300030177 SCREW, FH, M4 X 0.7, 25L 2.5 3
3.25 300030357 SHCS, LOW PROFILE, M5 X 0.8, 16L 5 5
3.26 300030358
WASHER 5.2 X 8.8 X 1.0 MM, STAINLESS
ED BLACK
2
3.27 300040518
COVER-CABLE PORT, SINGLE, RIGHT
EXIT
3
3.28 300040522 CLAMP, HT PORT DOUBLE, PA6 1
3.29 300040521 CLAMP, HT PORT SINGLE, PA6 2
3.30
300040524
CABLE PORT COVER, HEAD TUBE, 2
PIECE
2
3.31 300030173 SCREW, FH, M4 X 0.7, 10L 2.5 3
3.32 300060080 SRAM UNIVERSAL HANGER 25 1
3.33 300060078 ASSY, YETI SEAT CLAMP, BOLT ON, 31.6 1
3.34 300040523 COVER, HT PORT, BLIND, PA6 1
3.35 200020418 DT GUARD, MY23 OUTER, PA/ABS 1
3.36 300040542
COVER-CABLE PORT, BLANK, RIGHT
EXIT
1
3.37 300040510 FRAME PLUG, CABLE PORT 2
3.38 100425009 AXLE, M12X1 X 174L, BOLT-ON, BLACK 15 1
4
SB120 SHOCK SUB ASSEMBLY 1
REVISIONS
REV DESCRIPTION DATE
A INITIAL RELEASE 5/20/2022
B
ITEMS 3.37, 3.38 ADDED; ITEM 3.36 S/C WAS 300040518, IS NOW
CORRECTED TO 300040542; ITEM 3.12 STOCK CODE ADDED
5/26/2022
A A
B B
C C
D D
E E
F F
G G
H H
16
16
15
15
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS IN MILLIMETERS
SIZE:
TITLE:
DWG. NO.
D
LENGTH
<5
5-20
20-100
>100
ANGLE
SCALE: 1:4
SHEET 1 OF 1
REV
ENGINEERING
DRAWN
APPROVAL STAMP
TOLERANCES
09228_Manual
B
ALL MODIFICATIONS MUST BE APPROVED BY YETI CYCLES
TOL.
0.1
0.2
0.5
1
0.5
DATE
5/26/2022
G. ARAMAYO
P. RUSSELL
EXPL, SB20 ASSY, MANUAL
