3
SWITCHBOARD INSTRUMENTS
Yo kogawa offers a complete line of switchboard instruments to
meet your every needs.
Model are available 110 mm and 80 mm square size 250° to mea-
sure all electrical quantities.
All switchboard instruments in the series feature rugged, friction
free and shock resistant taut-band suspension elements.
All model of AC instruments except 80 mm size wattmeters and
varmeters are self-contained transducer needless external trans-
ducer boxes.
The built-in transducer system offer many advantages including
low cost, linear scales, greatly reduced volt-ampere loss.
Yo kogawa switchboard instruments offer a variety Models, such
as from single phase to three phase four wire instruments, as well
as model for balanced and unbalanced circuits. All instruments
except synchroscope are complied with JIS C 1102.
Features
■ RMS rectifier type AC instruments
■ Platform scale --- No shadow on scale and readable, even
from sharp angles
■ Interchangeable scales save time
■ Easy to read linear scales and wide deflection angles
■ Taut-Band suspension --- eliminate friction and protects
against shock
■ Unti-framable case and terminal board
■ Provide terminal protect cover for safety
Specifications
In accordance with Japan Industrial Standard JIS C 1102: 2007
■ Accuracy --------------------------------- See next page
■ Full Scale Deflection Angle ---------- 250°(360° for Synchroscope)
■ Full Scale Length ---------------------- Approx. 196mm (7.7") for 110mm SQ
140mm (5.5") for 80mm SQ
■ Position of Use-------------------------- Vertical (Scale)
■ Pointer ------------------------------------ Lance type Pointer, Black
■ Operating Temperature Range ----- 0 to 40 °C
■ Operating Humidity Range ---------- 25 to 80 %RH
■ Storage Temperature Range -------- –10 to 50°C
■ Storage Humidity Range ------------- 25 to 80 %RH
■ Dielectric Strength --------------------- Between electrical circuit and the case: 3320V AC for 5 seconds
Between current circuit and voltage circuit: 2600V AC for 5 seconds
For Wattmeters, Varmeters and Power factormeters
(2000V AC for 2185A, 2186A and 2187A)
■ Insulation Resistance ----------------- More than 10 MΩ/500V DC between electrical circuit and the case,
current circuit and voltage circuit.
More than 5MΩ/500V DC between current circuit and voltage circuit.
For Wattmeters, Varmeters and Power factormeters
■ Safety Requirements------------------ Structural requirements are in accordance with JIS C 1010 for safety of
voltage test, insulation and other.
Reinforced insulation, between electrical circuit and case
Indoors, Altitudes up to 2000m, Pollution degree 2
Measurement category III
(Measurement category is not applied for non- JIS products.)
Maximum working voltage:600V

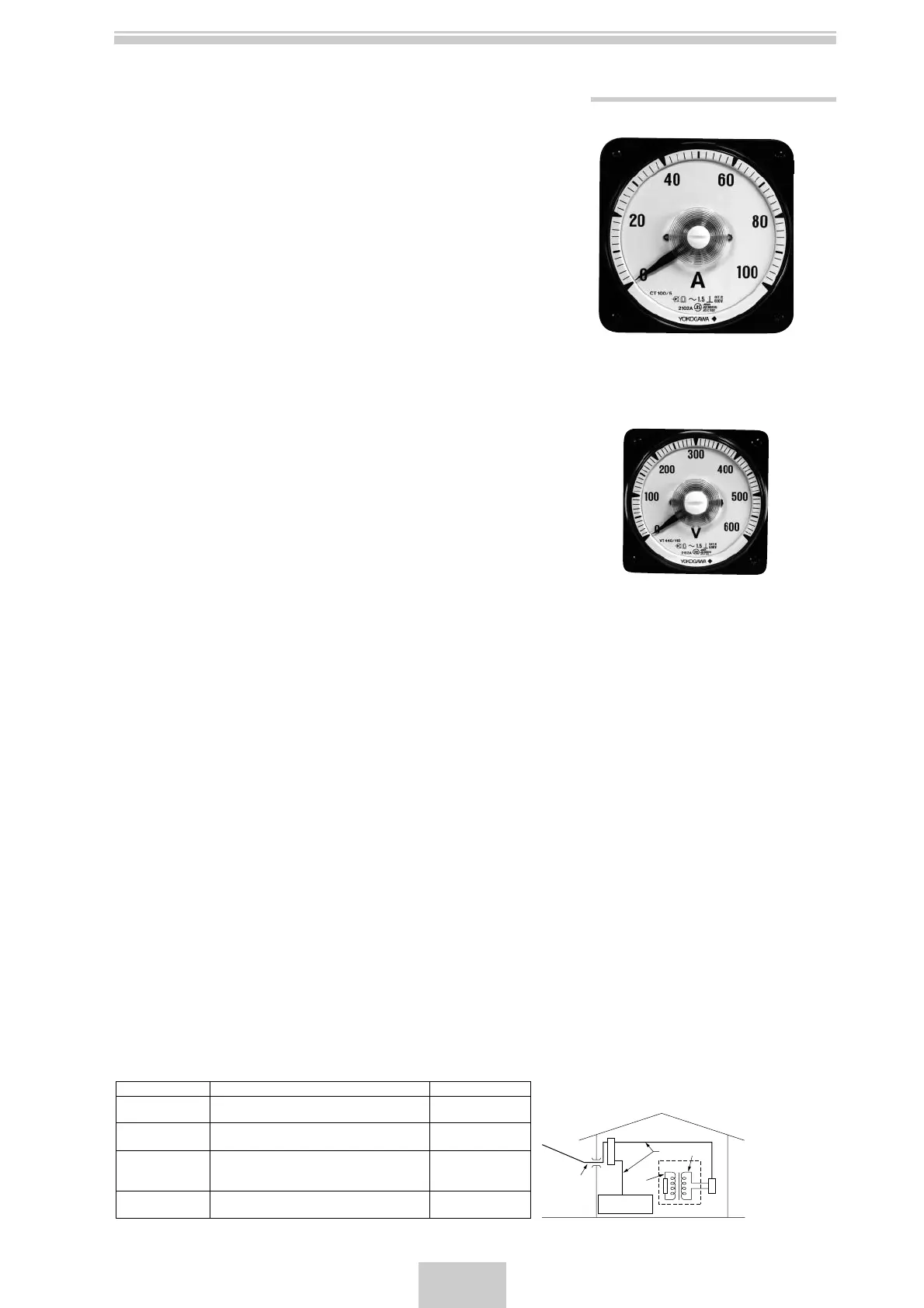

Type 2181A to 2188A
80 mm square size miniature switchboard instru-
ments series high space utility.
Type 2101A to 2109A
110 mm square size switchboard instruments Se-
ries. Plastic case with safety terminal protection cover.
Entrance
Cable
Internal Wiring
CAT.III
CAT. I
CAT. IV
T
CAT.II
Distribution
Board
Fixed Equipment,
etc.
Equipment
Outlet
Measurement Category
CAT. I
CAT.II
CAT.III
CAT.IV
Description
For measurements performed on circuits not
directly connected to MAINS.
For measurements performed on circuits directly
connected to the low voltage installation.
For measurements performed in the building
where distribution panels and circuit breaker, etc
are installed.
For measurements performed at the source of
the low-voltage installation.
Remarks
Appliances, portable
equipments, etc.
Distribution board,
circuit breaker, etc.
Overhead wire, cable
systems, etc.
Measurement Category
