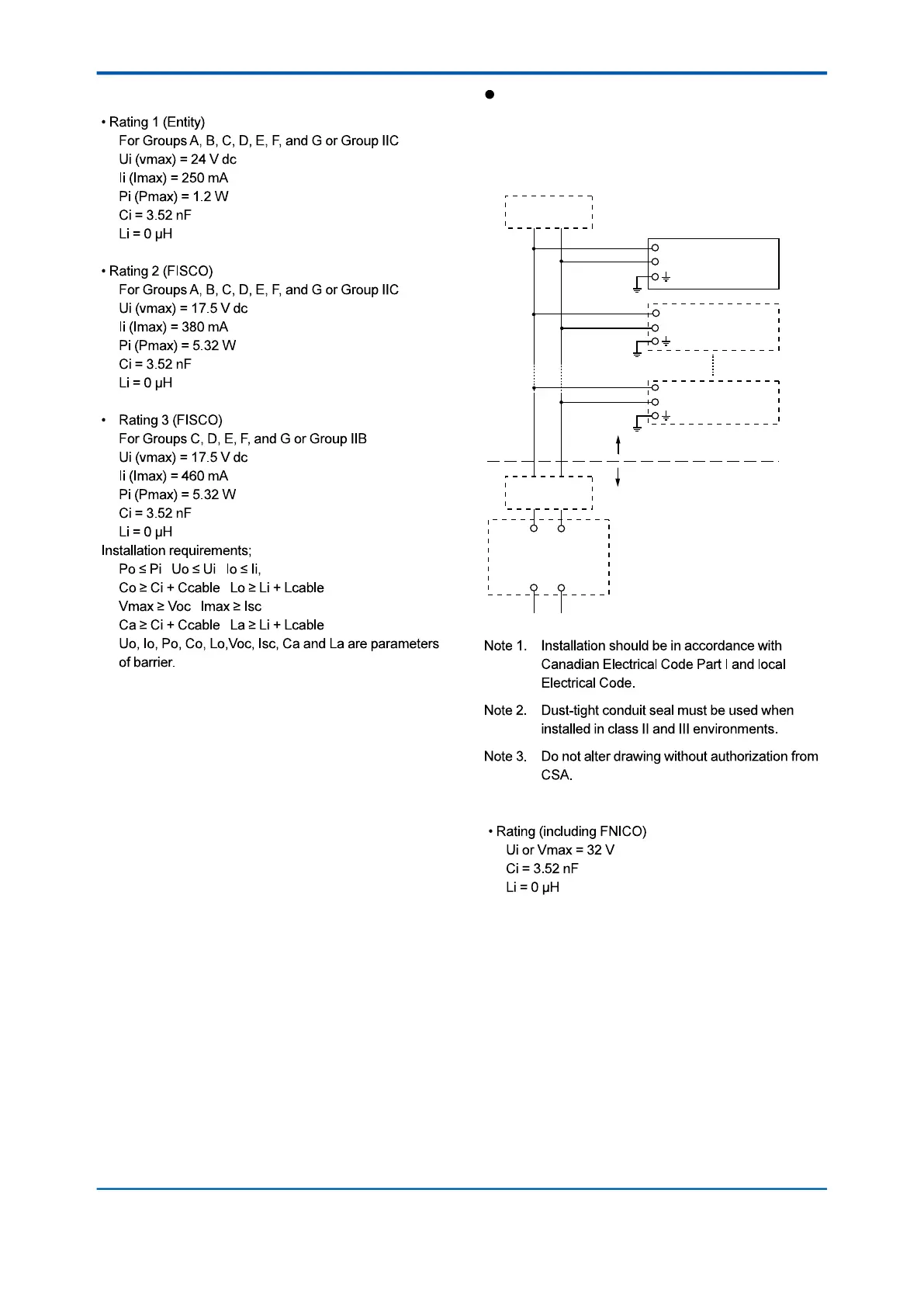

<2. Handling Cautions>
16
IM 01C25A01-01E
Electrical Data:
or
or
Caution for CSA Non-incendive Type.
(Following contents refer to “DOC. No.
ICS018)
Installation Diagram for Non-incendive or Type of
protection “n” (Division 2 Installation)
Non-Hazardous location
Hazardous location
F0230.ai
Terminator
CSA Certified
Equipment [nL]
Pressure
Transmitter
SUPPLY
Terminator
+
Transmitter
+
Transmitter
+
+
+
Electrical Data:
