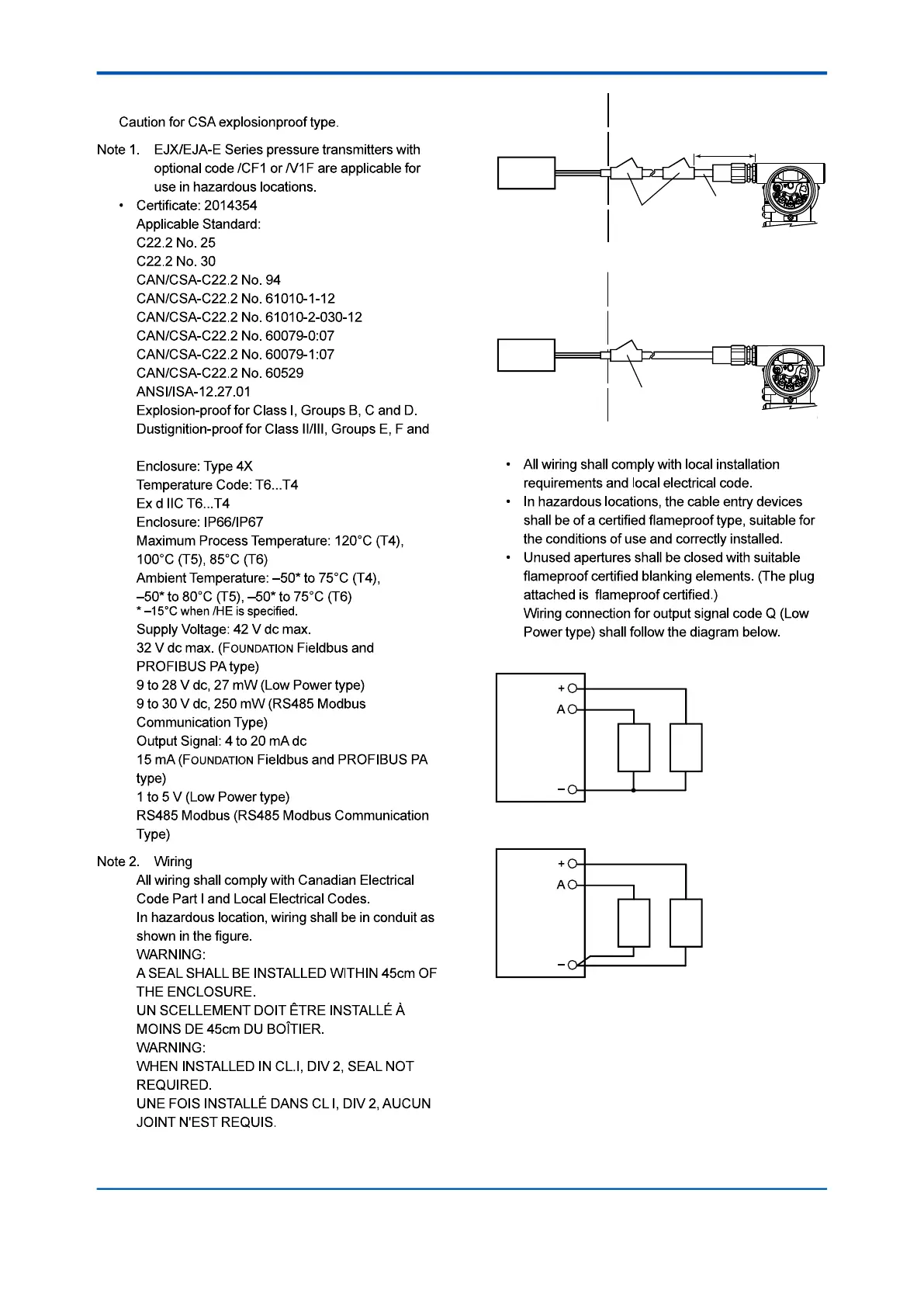

<2. Handling Cautions>
17
IM 01C25A01-01E
c. CSA Explosionproof Type
G.
Non-hazardous
Location Equipment
42 V DC Max.
4 to 20 mA DC
Signal
Non-Hazardous
Locations
Hazardous Locations Division 1
45 cm Max.
Sealing Fitting
Conduit
Transmitter
F0208.ai
Non-Hazardous
Locations
Hazardous Locations Division 2
Non-hazardous
Location Equipment
42 V DC Max.
4 to 20 mA DC
Signal
Sealing Fitting
Transmitter
F0209.ai
F0219.ai
Three-Wire Connection
Pressure Transmitters
Power Supply
Voltmeter
SUPPLY
SUPPLY
+
+
Four-Wire Connection
Pressure Transmitters
Power Supply
Voltmeter
SUPPLY
SUPPLY
+
+
