4.3.6 LowPower-Ω(LP-Ω)
This function is for measuring the resistance of parts on a printed board under low measurement
current.
InLowPower-Ωmeasurement,upto5,000countsaredisplayedandthemeasurementrange
isfrom5kΩto5MΩ.
1)Turnthefunctionswitchtothe“Ω”position.
 PresstheSELECTkeytosetLP-Ωmode.“LP-Ω”appearsonthedisplay.
2) Plug the testing leads into the input terminals.
3)Connectthetestingleadstotheresistanceandthenreadthevaluewhenit
stabilizes.

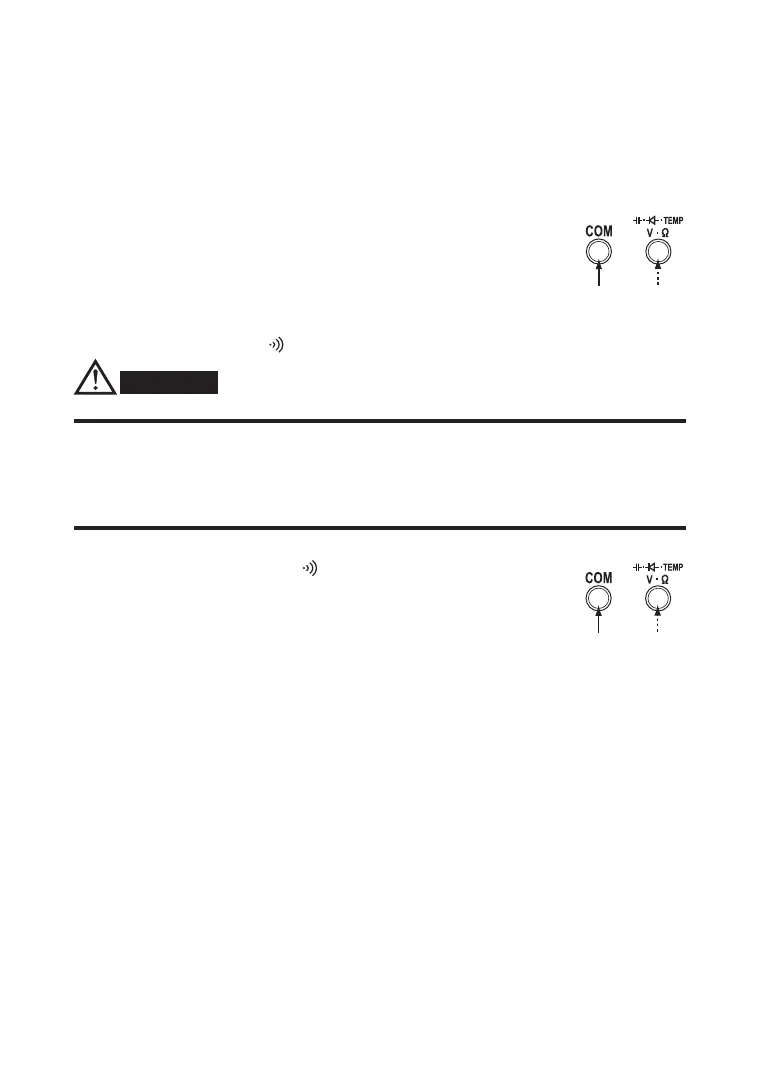

Testing leads
RedBlack
4.3.7 Continuity Check ( )
CAUTION
To avoid damage to instrument
Turn off the power to the circuit under test before starting measurement in order to prevent any
excessive voltage from being applied to the instrument.
1) Turn the function switch to the “
” position.
2) Plug the testing leads into the input terminals.
3)Connect the testing leads to the circuit under test. If the circuit is
continuous (no more than approximately 100
Ω
), the buzzer sounds.
Testing leads
RedBlack
