79
4.2
Components
n

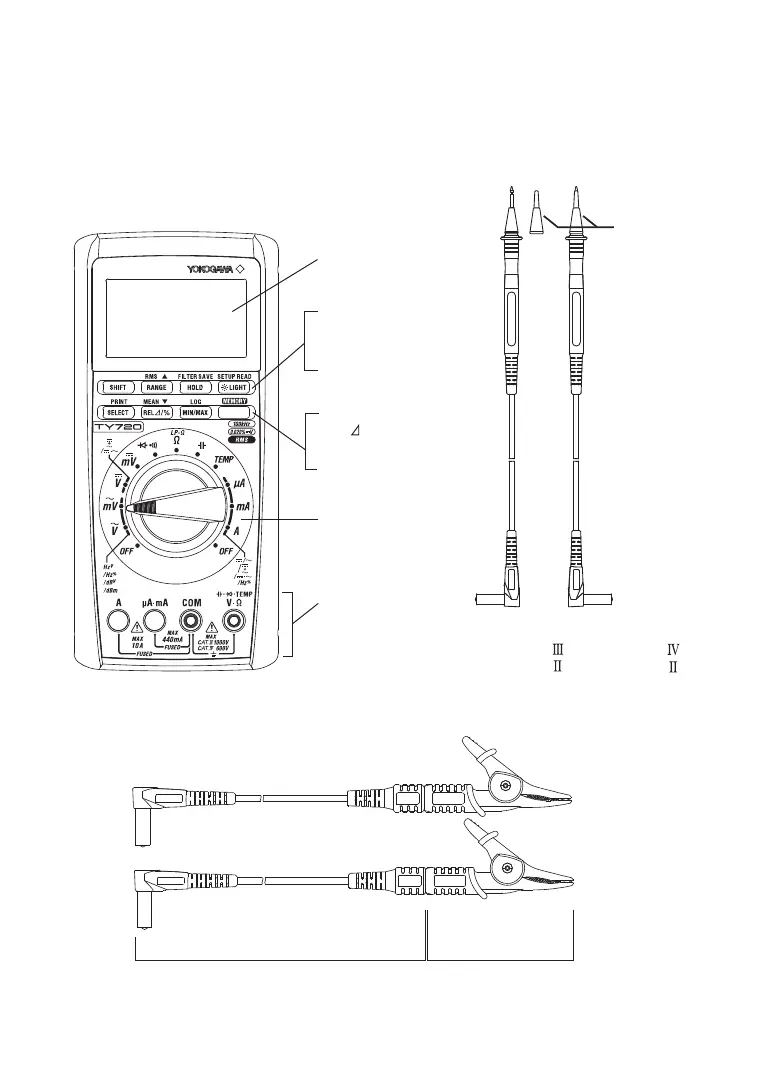

Panel Description
Display (LCD)
Function switch
Input terminal block
SHIFT key
RANGE key
HOLD (SA
VE) key
LIGHT (READ) key
RE
SELECT (PRINT) key
L
/% key
MIN/MAX (LOG) key
MEMOR
Y
key
n
T
esting leads with alligator clip(optional accessory)
Black
Red
Cable
Alligator clip
Red
■ T
esting leads 98073
Caps of T
esting leads
Black
With:
1000V10A CAT.
/600V 10A CAT.
Without: 1000V10A CAT.
/600V 10A CAT.
23
25
Table of Contents
Default Chapter
2
About this Manual
2
Operating Environment
4
Table of Contents
7
1 Overview
10
2 Measurement Category
11
3 Specifications
12
General Specifications
12
Accuracy
15
4 Operation
23
Precautions before Measurement
23
Components
24
Measuring Instructions
29
Ac Voltage Measurement
29
DC Voltage Measurement
29
DC+Ac Voltage Measurement
30
DC, Ac Voltage Dual Display
30
Resistance Measurement
30
Low Power-Ω
31
Continuity Check
31
Diode Test
32
Temperature Measurement
33
Current Measurement
34
DC+Ac Current Measurement
35
DC, AC Current Dual Display
36
Capacitor Measurement
36
Frequency Measurement, Duty Cycle Ratio
37
Function to Change RMS Detection To/From MEAN Detection Mode
38
Function To Turn The Filter On/Off
38
Auto Hold Function
39
Peak Hold Function
40
Relative And Percentage Calculation
40
Decibel Calculation
41
Min/Max/Avg Function
42
Memory Function
43
Auto Power Off Function
46
Set-Up Function
47
Additional Functions Simply Set When Power On
50
Averaging Function
50
Display Mode
51
LCD Check
51
User Calibration Function
52
Battery and Fuse Replacement
57
Battery Replacement
57
Fuse Replacement
58
Calibration and Maintenance
59
Disposing the Product
59
4
Based on 1 rating
Ask a question
Give review
