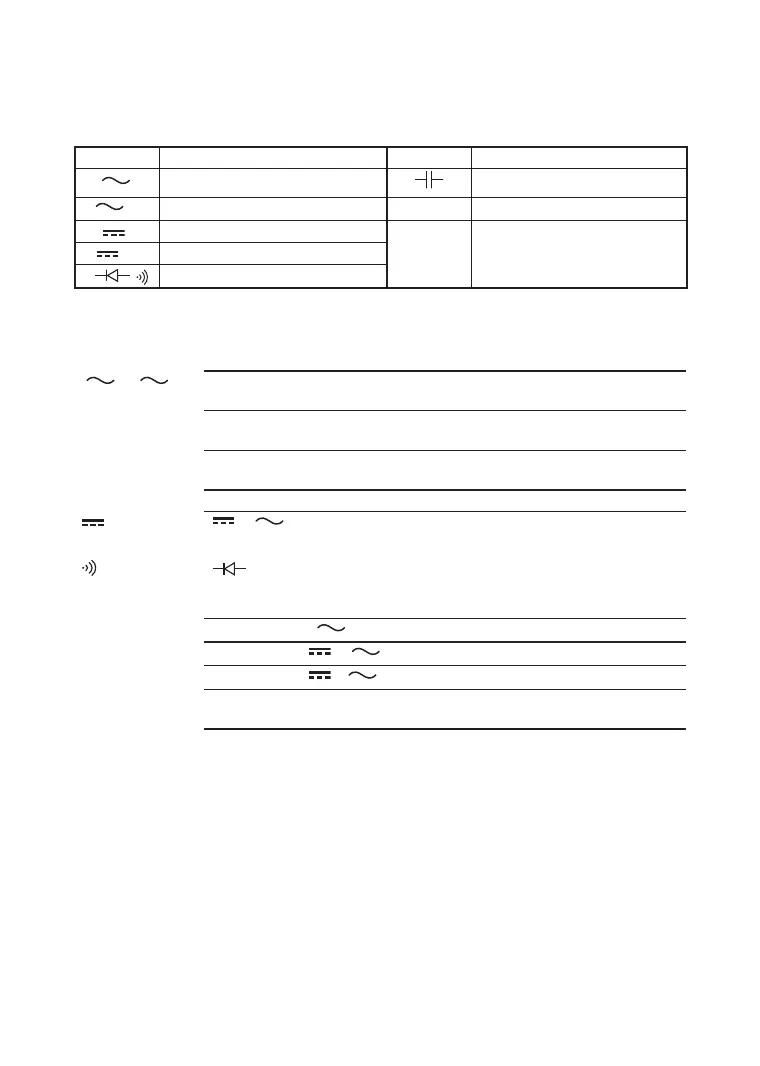

1) Function switch
Turns off the power or select the measurement mode (function).
OFF Turns off the power. Ω Resistance measurement
V AC voltage (V) measurement Capacitor measurement
mV AC voltage (mV) measurement TEMP Temperature measurement
V DC voltage (V) measurement
μA
mA
A
DC/AC current measurement
mV DC voltage (mV) measurement
Continuity check, Diode Test
2) SELECT key
Pressing this key in each measurement modes (function)
described above selects other measurement modes (function).
V, mV
1 HzV
: Frequency measurement
(Voltage value is displayed.)
2 Hz%
: Frequency measurement
(Duty cycle ratio)
3 dBV
: dBV measurement
(Voltage value is displayed.)
4 dBm : dBm measurement
V
+ (DC+AC)measurement,(DC,AC)Dualdisplay
Ω LP-Ω(ModelTY720only)
Diode Test
µA/mA/A Pressing this key in each measurement modes (function) described above
selects other measurement modes (function).
1
: AC voltage measurement
2
+ :(DC+AC)measurement
3
• : (DC, AC) Dual display
4 Hz%
: Frequency measurement
(Duty cycle ratio)
