YOKOGAWA UT130 Technical Information

2-6
<Toc> <Ind>
TI 05C01E02-01E 1st Edition : Oct. 31, 2001-00
2.4 Other Items to Specify
■ Quality Inspection Certificate (QIC) and Traceability
The Quality Inspection Certificate (QIC) of the product at shipping is prepared.
And the Traceability, which certificates that the measuring instruments and generator
used for the product inspection conforms to the inspection of national standards, is also
prepared.
● Quality Inspection Certificate(QIC)
Model: DOCTC
● Calibration certificate (traceability)
“Traceability declaration to the national standards” and “Explanation of the Yokogawa’s
internal system for traceability”
Model: Q62188-B
■ Auxiliary Equipment and Spare Parts
● 250Ω Resistor
When a measured input signal is 4 to 20mA DC, the temperature controllers (UT150/
UT152/UT155) receive it after converting to a 1 to 5V DC signal.
Model Description
X010-250-2
Resistor with M3.5 crimp-on terminal lugs
12
13
Note: Connecting a 250‰ resistor to the terminals is optional.
Model: X010-250-2(resistor with M3.5 crimp-on terminal lugs)
*When receiving 4-20mA DC current signals,
set the PV input type to 1-5V DC (range code "22")

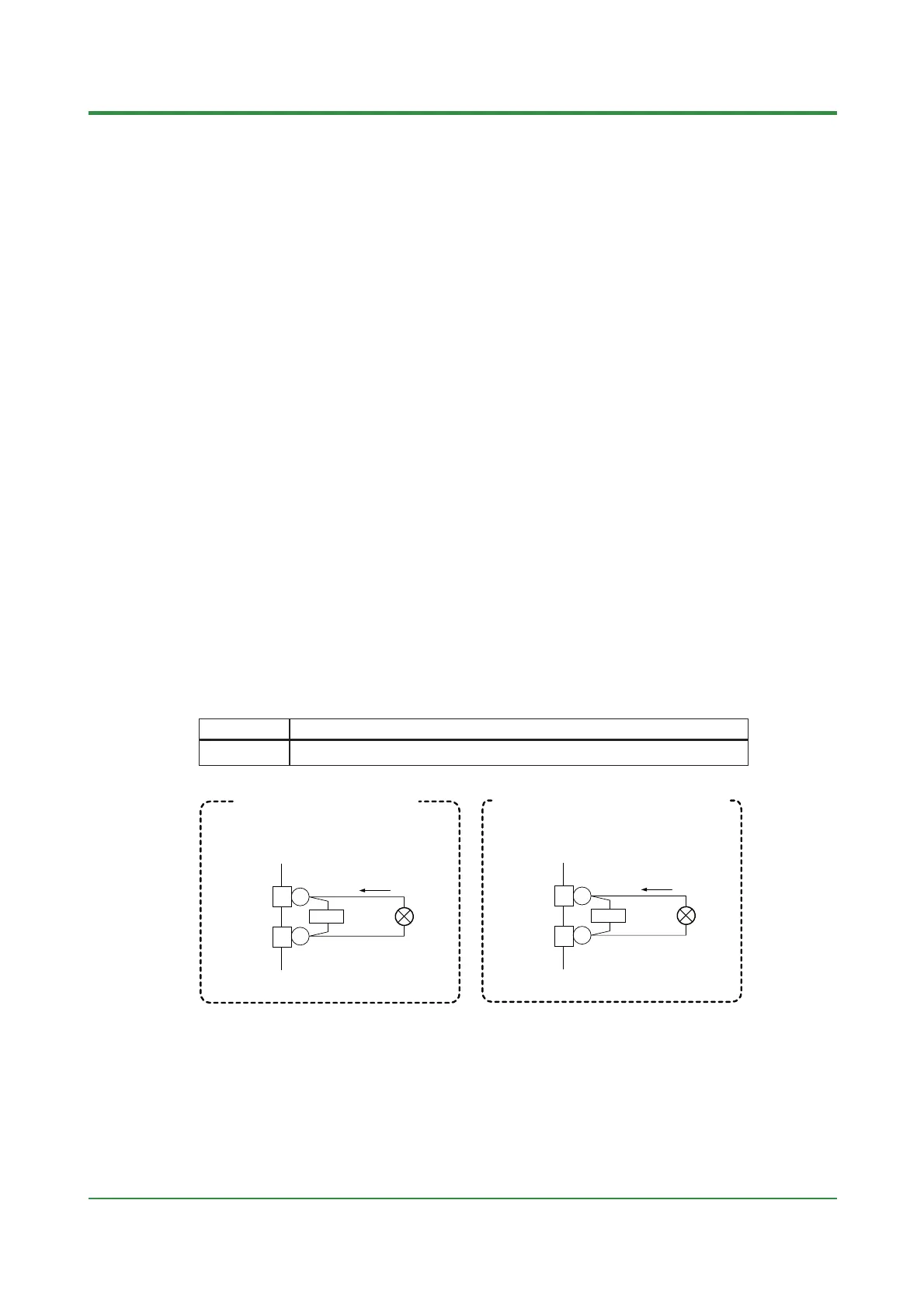

Receiving 4-20mA DC Current
Signals with UT152/UT155
4-20mA
7
8
Note: Connecting a 250‰ resistor to the terminals is optional.
Model: X010-250-2(resistor with M3.5 crimp-on terminal lugs)
* When receiving 4-20mA DC current signals,
set the PV input type to 1-5V DC (range code "22")
Receiving 4-20mA DC Current
Signals with UT150
4-20mA
250Ω
+
—
+
—
250Ω
● Heater Disconnection Sensor (for 1 to 80A)
The heater current sensor used here is the “CTL-6-S-H” or “CTL-12-S36-8” sensor of
U.R.D., Ltd.
This sensor is to be purchased by the users themselves.
Model: CTL-6-S-H or CTL-12-S36-8
