4.3 Setting Target Setpoint (SP)
4.3.1 Setting Target Setpoint (SP) of UT130
The following operating procedure describes an example of setting “200°C” for the
target setpoint.

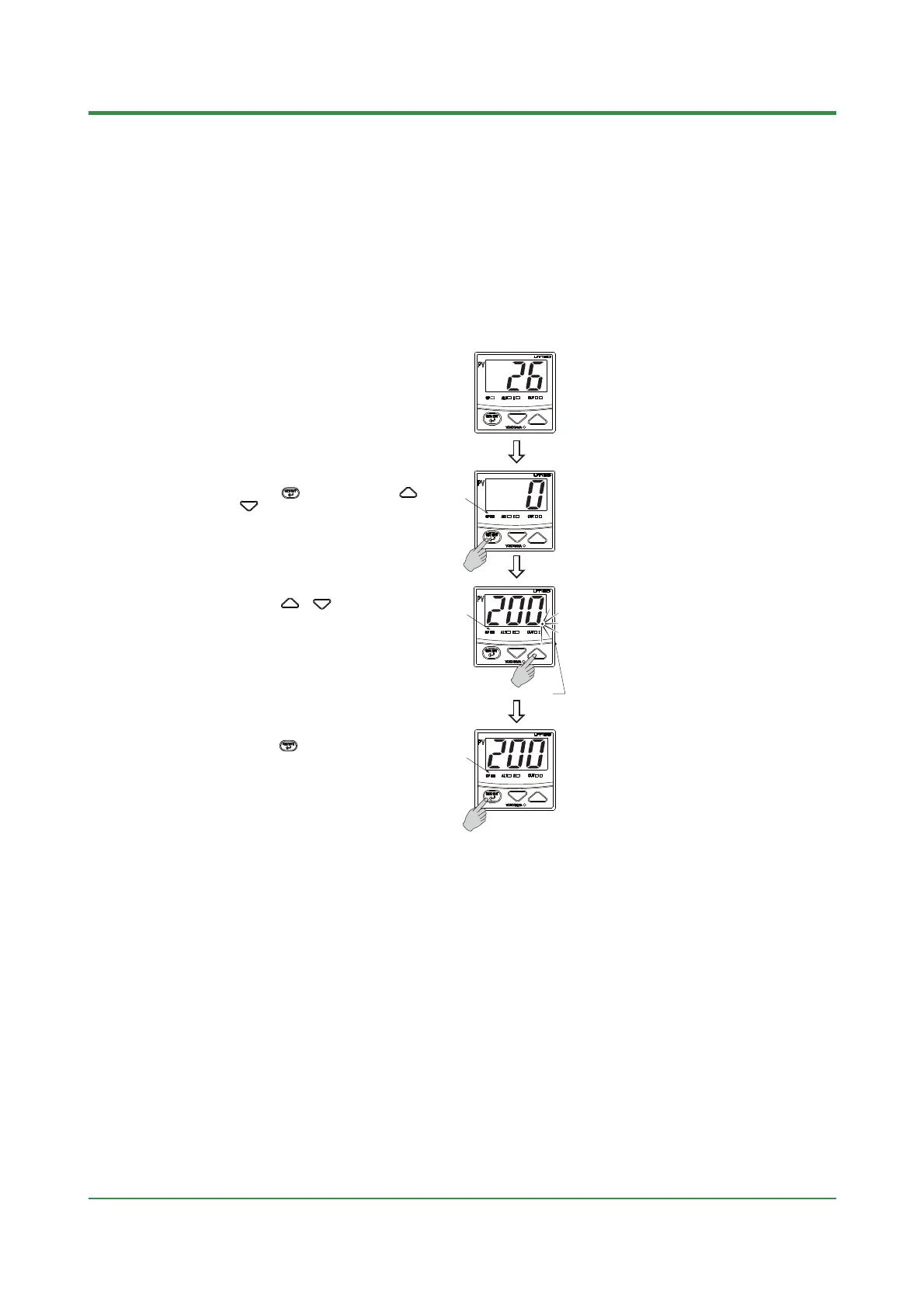

Step 1:
Bring the operating display into view.
The measured input value appears on Data
display.
UT130
Display example
Step 2:
Press the key once, or press the or
key to display the target setpoint (SP).
(SP lamp is lit.)
Step 3:
Press the or key to set the required
setpoint for the target setpoint.
In this example, "200°C" is set for the target
setpoint.
Step 4:
Press the key once to register the setpoint.
The period goes out, then the setting
(changing) of target setpoint is completed.
Note 1:
Measured input value (PV) or target setpoint (SP)
appears in the operating display.
The action of SP display lamp shows the status of
display.
(1) SP display lamp is OFF: PV display (operating
display)
(2) SP display lamp is ON: SP display (operating
display)
(3) SP display lamp flashes slowly: Displays
parameter symbol
(4) SP display lamp flashes rapidly: Changing a
parameter setpoint
SP display
lamp is lit.
Flashes during change.
SP display
lamp is lit.
SP display
lamp is lit.
<Operating Procedure>
