4.4.2 Setting Alarm Setpoint
NOTE
Be sure to confirm the alarm type before setting the alarm setpoint. If the alarm type is changed
after setting the alarm setpoint, the alarm setpoint is initialized.

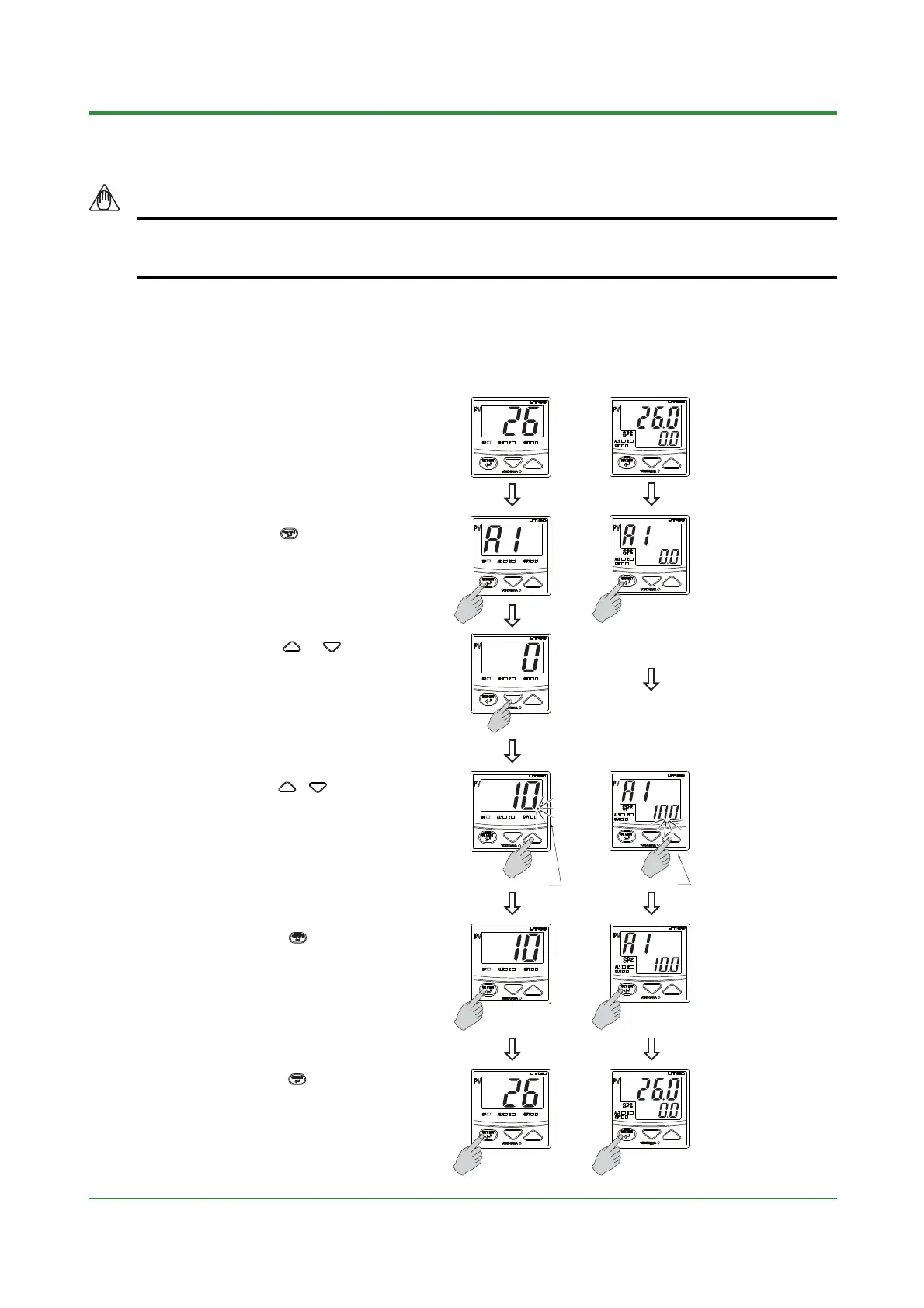

The following operating procedure describes an example of setting “10°C” for the alarm
1 setpoint.
Step 1:
Bring the operating display into view.
UT130
Display example
UT150/UT152/UT155
Display example
Step 2:
Press the key for 3 seconds or more to
display the parameter "A1".
The parameter "A1" appears only for the
controller with the "/AL" or" /HBA" option.
The parameter "CTL" appears for the
controller without the "/AL" or" /HBA" option,
and in this case, the alarm function is not
Step 4:
Press the or key to display "10".
Step 5:
Press the key once to register the
setpoint.
Flashes during change.
Flashes during change.
Step 6:
Press the key for 3 seconds or
more to return to the operating display.
Step 3 (for UT130 only):
Press the or key once to display
the setpoint.
<Operating Procedure>
