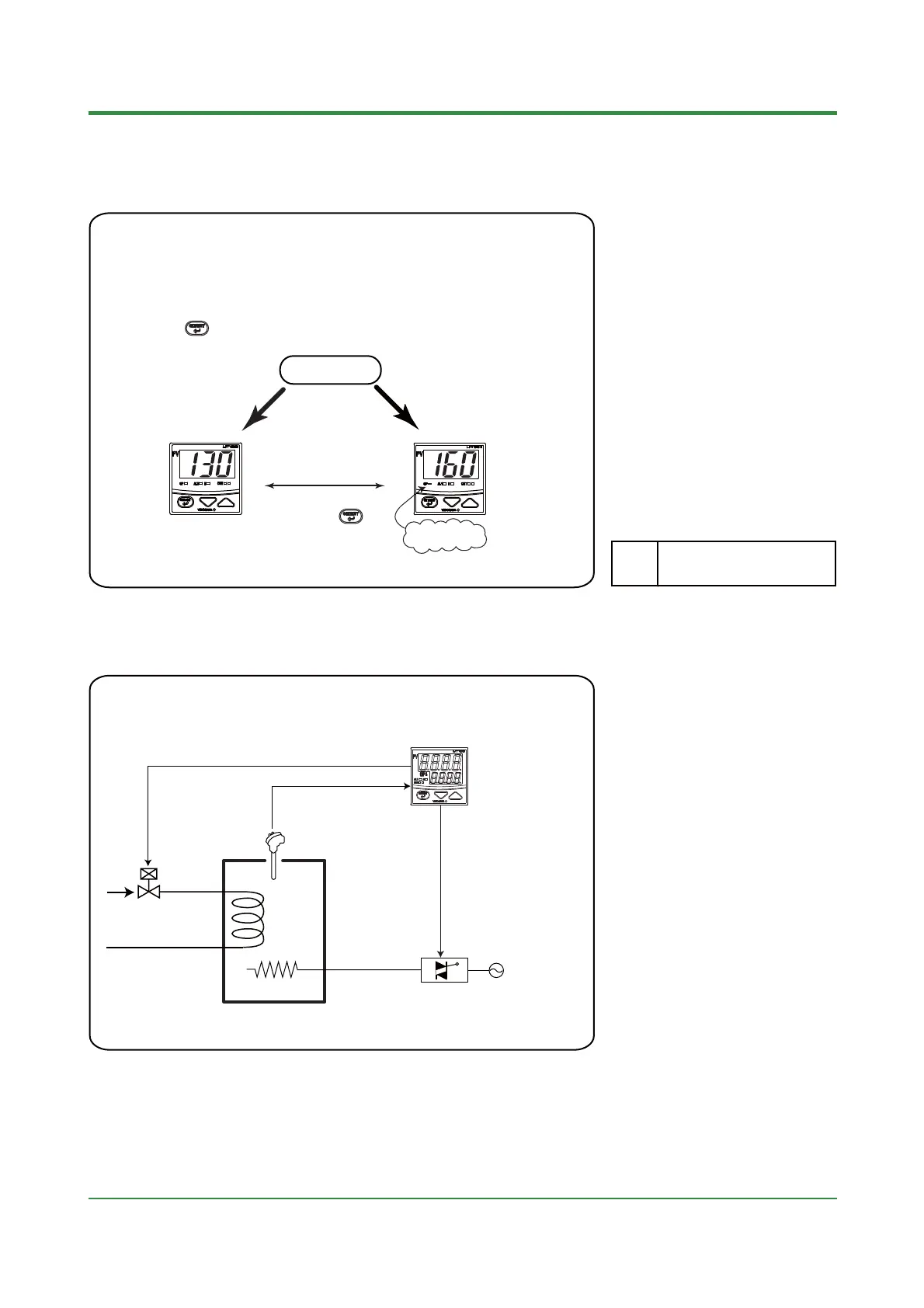

5.11 Selecting Priority of PV/SP Display at Power on
(for UT130 Only)
0: Measured value (PV) display
1: Target setpoint (SP) display
DSP
Parameter Range
The priority of PV or SP display on operating display can be selected because
UT130 has only one data display.
The data (PV or SP) selected in the parameter "DSP" is displayed at power on or
when returning to the operating display from the parameter setting display by
pressing the key for at least 3 seconds.
PV display
SP display
SP display lamp is on
during SP display.
To switch between PV and SP
display, press the key.
Power on
Parameter "DSP"= 0
Parameter "DSP"= 1
5.12 Performing Heating/Cooling Control
•
In heating/cooling control, the controller
outputs the result of PID computation
after splitting it into heating-purpose and
cooling-purpose signals.
It is used for the control of heater with
heater and cooler.
Heater
Furnace
Thyristor
Thermocouple
Cooling water
Heating-side
control output
Cooling-side
control output
PV input
