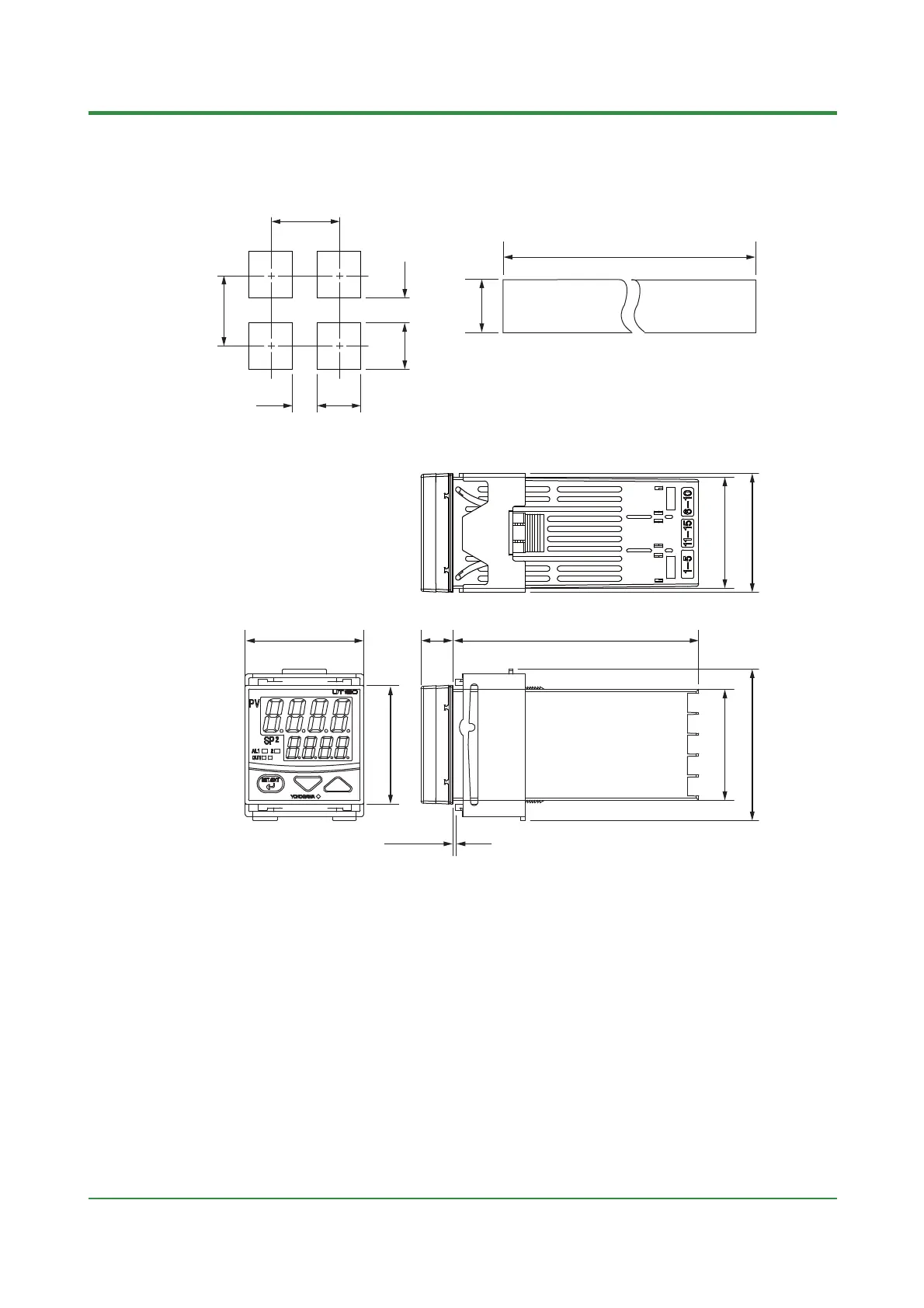

■ UT150 Panel cutout dimensions and external dimensions
max. 61
Panel thickness
max. 44.8
max. 44.8
max. 44.8
10012
1 to 10
Unit: mm
1. General Mounting
min. 70
min. 70
45
+0.6
0
45
+0.6
0
(25)
(25)
[(N—1) x 48 + 45]
+0.6
0
+0.6
0
45
2. Side-by-side Close Mounting
N is the number of controllers.
If N 5, then measure the actual length.
‡
48
48
(Splash-proof construction is unavailable)
*IP65 is unavailable.

YOKOGAWA UT130 Specifications

General

Brand	YOKOGAWA
Model	UT130
Category	Temperature Controller
Language	English
