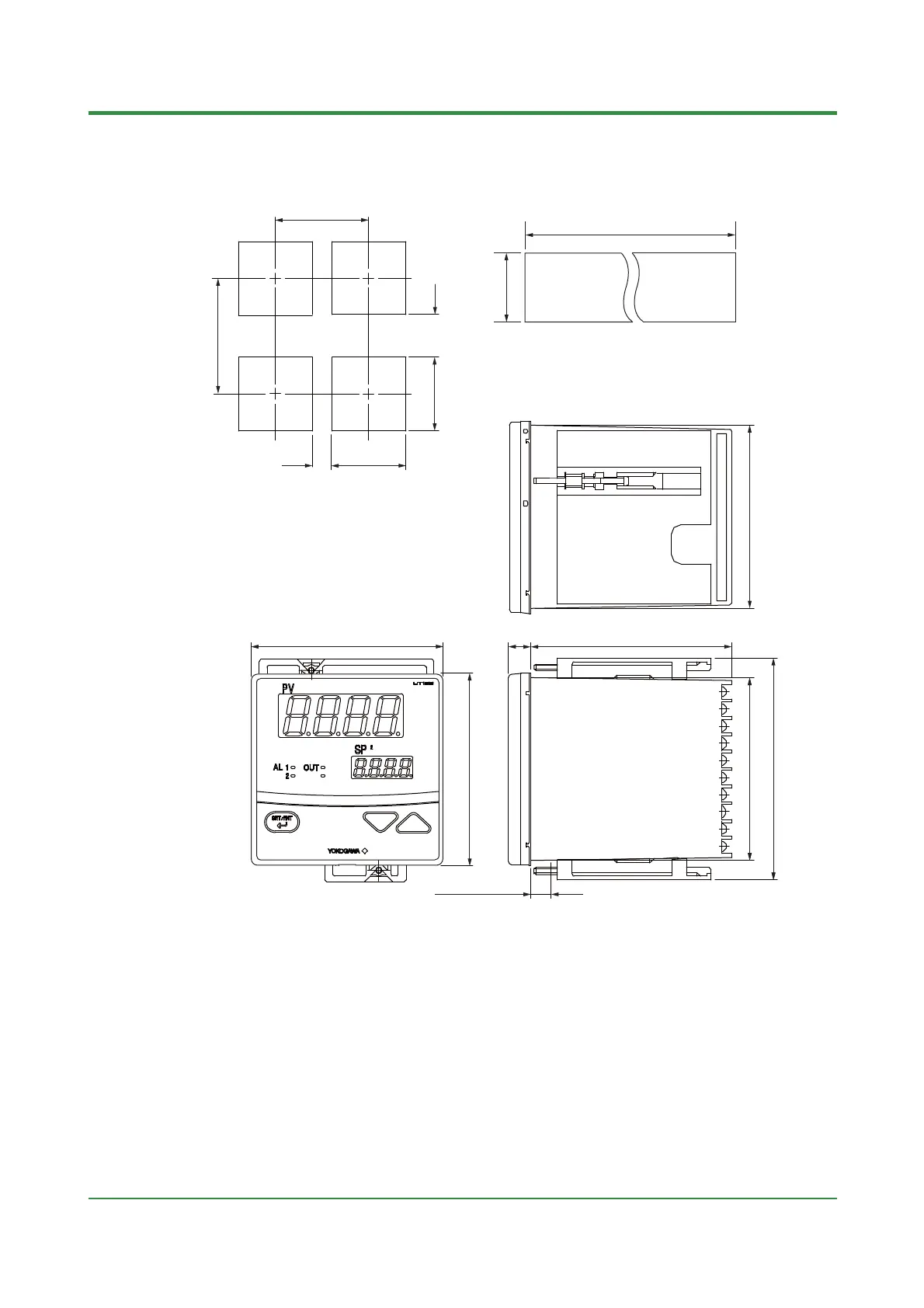

■ UT155 Panel cutout dimensions and external dimensions
Unit: mm
1. General Mounting 2. Side-by-side Close Mounting
min. 117
min. 145
92
+ 0.8 0
92
+ 0.8
0
(25)
(53)
[(N—1)x96+92]
+0.8
0
+0.8
0
92
N is the number of controllers.
If N 5, then measure the actual length.
max. 91.8
96
1-1051-6041-5031-4021-3011-20
96
11
100
max. 91.8
max. 112
Panel thickness
1 to 10
(Splash-proof construction is unavailable)
*IP65 is unavailable.
‡

YOKOGAWA UT130 Specifications

General

Brand	YOKOGAWA
Model	UT130
Category	Temperature Controller
Language	English
