Component Names and Functions
1
2
3
4
5
6
7
App
Index

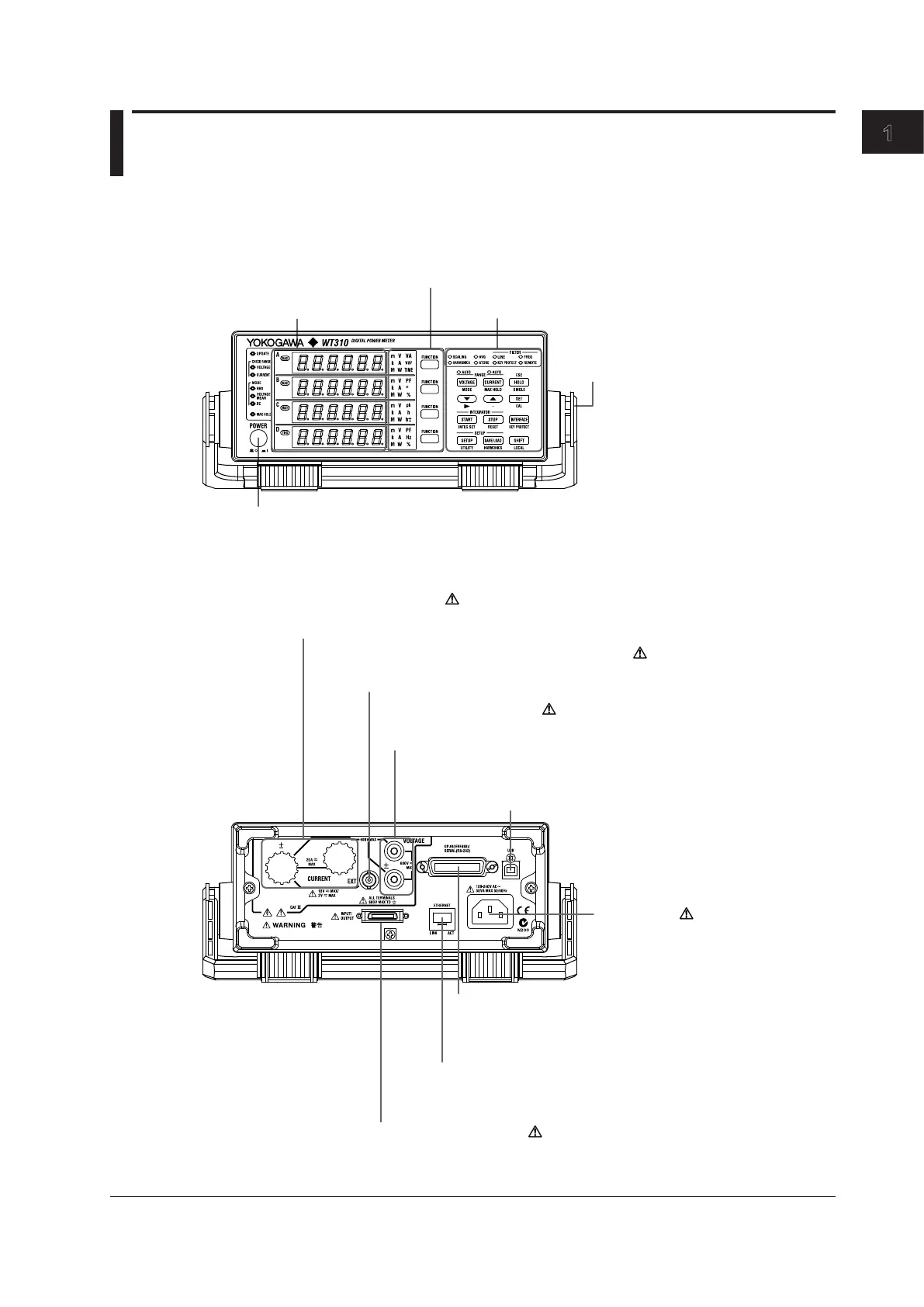

1.1 Front Panel, Rear Panel, and Top Panel
WT310/WT310HC
Front Panel
Power switch
→ section 2.4
Handle
Used to carry the
WT310/WT310HC/WT330
→ section 2.1
7-segment LED
display
→ section 1.2
Function and unit indicators
→ section 1.2
Keys
→ section 1.4
Rear Panel
Power inlet
Power connection → section 2.3
GP-IB or RS-232 connector
Used to communicate with the WT310/WT310HC/WT330
through the GP-IB or RS-232 interface
→ Communication Interface User’s Manual
External I/O connector
For connecting D/A output and remote control cables
→ chapter 5
For connecting voltage measurement cables
→ sections 2.8 to 2.11
Voltage input terminals
Current input terminal
For connecting current measurement
cables → sections 2.8, 2.9, and 2.11
External current sensor input connector
For connecting cables from an external current sensor
→ section 2.10
Ethernet port
Used to connect the WT310/WT310HC/WT330 to a network
→ Communication Interface User’s Manual
USB port for PCs
Used to connect the WT310/WT310HC/WT330 to
a PC that has a USB port
→ Communication Interface User’s Manual
