Operating the WT310/WT310HC/WT330

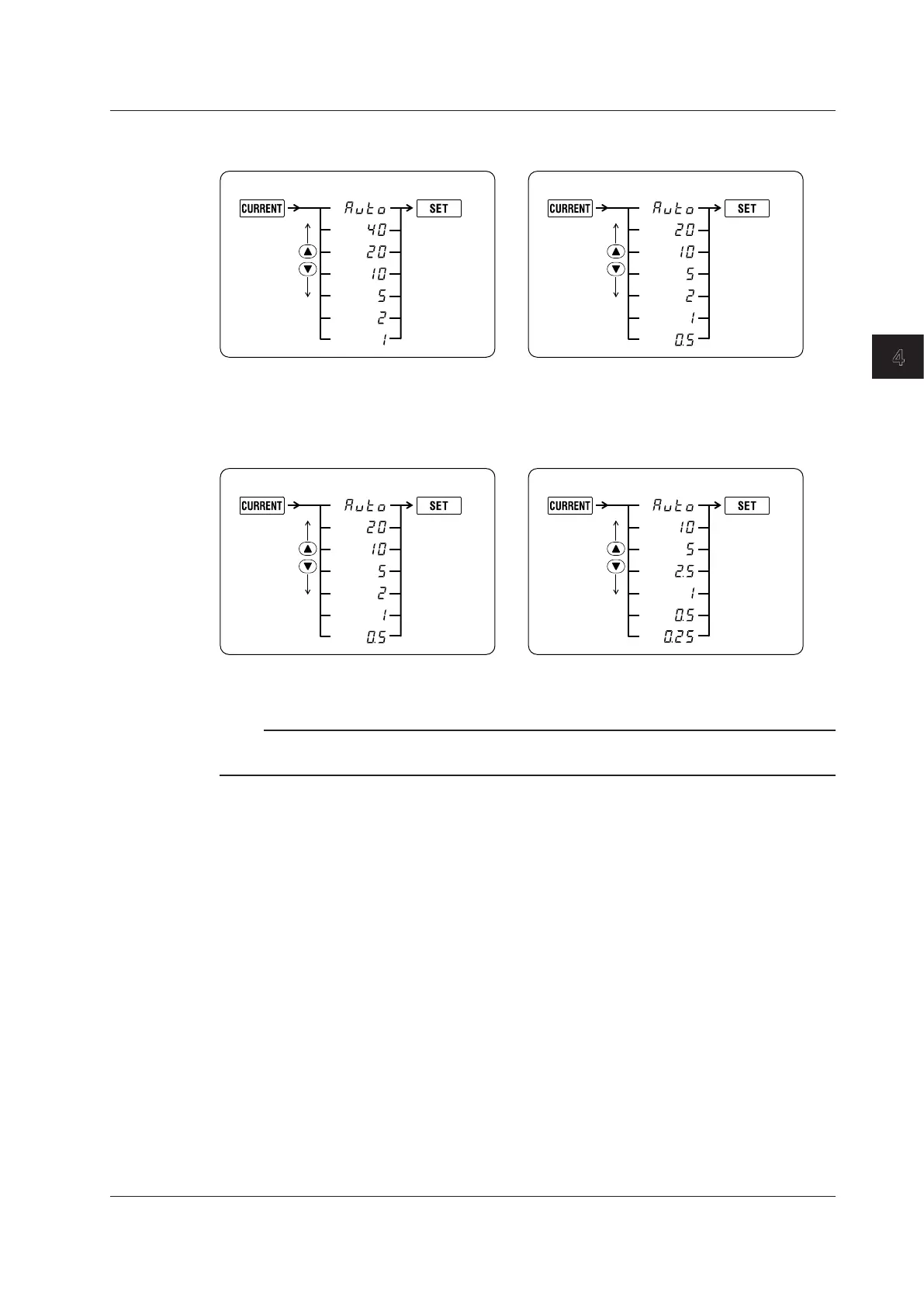

WT310HC Current Ranges
(Display C)1. 3.
Confirm the
setting.
(Display C)1. 3.
Confirm the
setting.
When the Crest Factor Is Set to 6When the Crest Factor Is Set to 3
The unit is A. The unit is A.
2.2.
There are more ranges to choose from on models with the /EX1 or /EX2 option. For details, see section 2.4
in the User’s Manual, IM WT310-01EN.
WT330 Current Ranges
(Display C)1. 3.
Confirm the
setting.
(Display C)1. 3.
Confirm the
setting.
When the Crest Factor Is Set to 6When the Crest Factor Is Set to 3
The unit is A. The unit is A.
2. 2.
There are more ranges to choose from on models with the /EX1 or /EX2 option. For details, see section 2.4
in the User’s Manual, IM WT310-01EN.
Note
In addition to the above operation, you can also change the current range without displaying the current
range setup menu. For details, see section 2.3 in the User’s Manual, IM WT310-01EN.
4.1 Setting the Measurement Ranges

YOKOGAWA WT310 Specifications

General

Model	WT310
Category	Digital Power Meter
Current Measurement Range	0.5 mA to 20 A
Weight	Approx. 3.5 kg
Voltage Measurement Range	15 V to 600 V
Frequency Range	100 kHz
Basic Accuracy	0.1%
Power Accuracy	0.1%
Display	LCD
Interfaces	USB, RS-232, GP-IB
Input Elements	1
Dimensions	213 mm x 88 mm x 346 mm
