Table 7.1 Display Items
Item
1st display
item
2nd, 3rd
display item
Display
Oxygen
concentration
Oxygen concentration during measurement
Air ratio
Current computed air ratio
Moisture content
Moisture content (%H
2
O) in the exhaust gas
Output item 1
oxygen analyzer (See *1 below.)
Output item 2
oxygen analyzer (See *1 below.)
AO output 1
Current value output from analog output 1
AO output 2
Current value output from analog output 2
Favorite
3rd display item
only
*1: If an analog output damping constant is set, the oxygen concentration display then includes these settings.
l Favorite settings
(1) "Display settings" > "Favorite settings"
(2) "Favorite settings" can have up to four items.

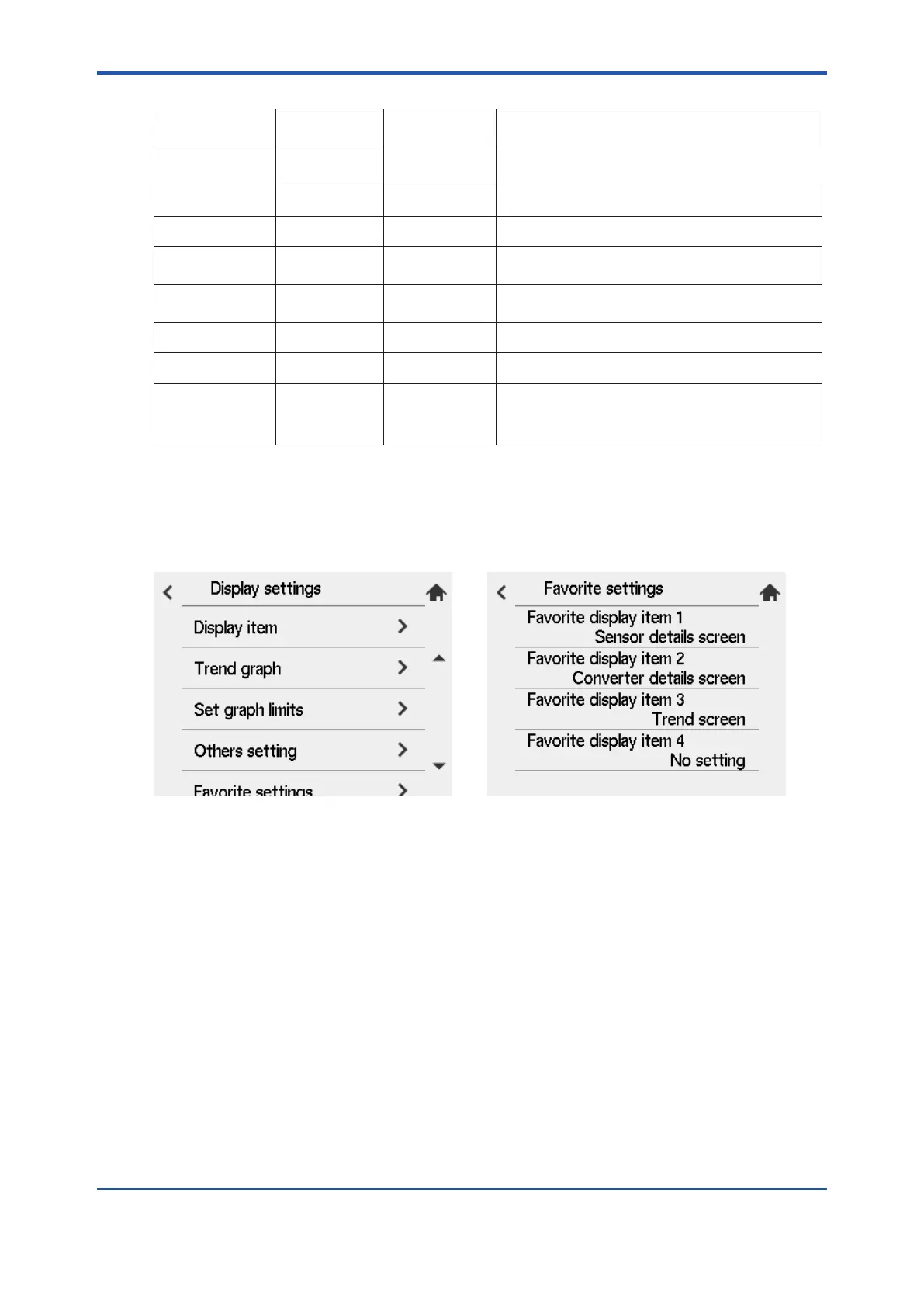

Figure 7.9 Favorite settings
l About the Air ratio:
the fuel) to (the amount of air actually supplied).
concentration in the exhaust gas. The air ratio may be expressed mathematically by:
m = { 1 / ( 21- Oxygen concentration ) } 21
gas (CH
4
, CO, H
2
, etc.).
