<11. Inspection and Maintenance>
11-6
IM 11M12G01-02EN 1sh Edition : Mar. 25, 2021-00
25
3
4
5
6
7
8
9
10
11
12
13
14
15
16
14
13
17
18
19
20
21
22
23
24
24
24
26
34
27
28
30
29
31
33
32
CELL +
TC +
TC -
TCCELL CJ
1 2 3 4 5 6
87
H
T
R
A
A
2
Arrow View
Figure 11.5 High Temperature Humidity Analyzer

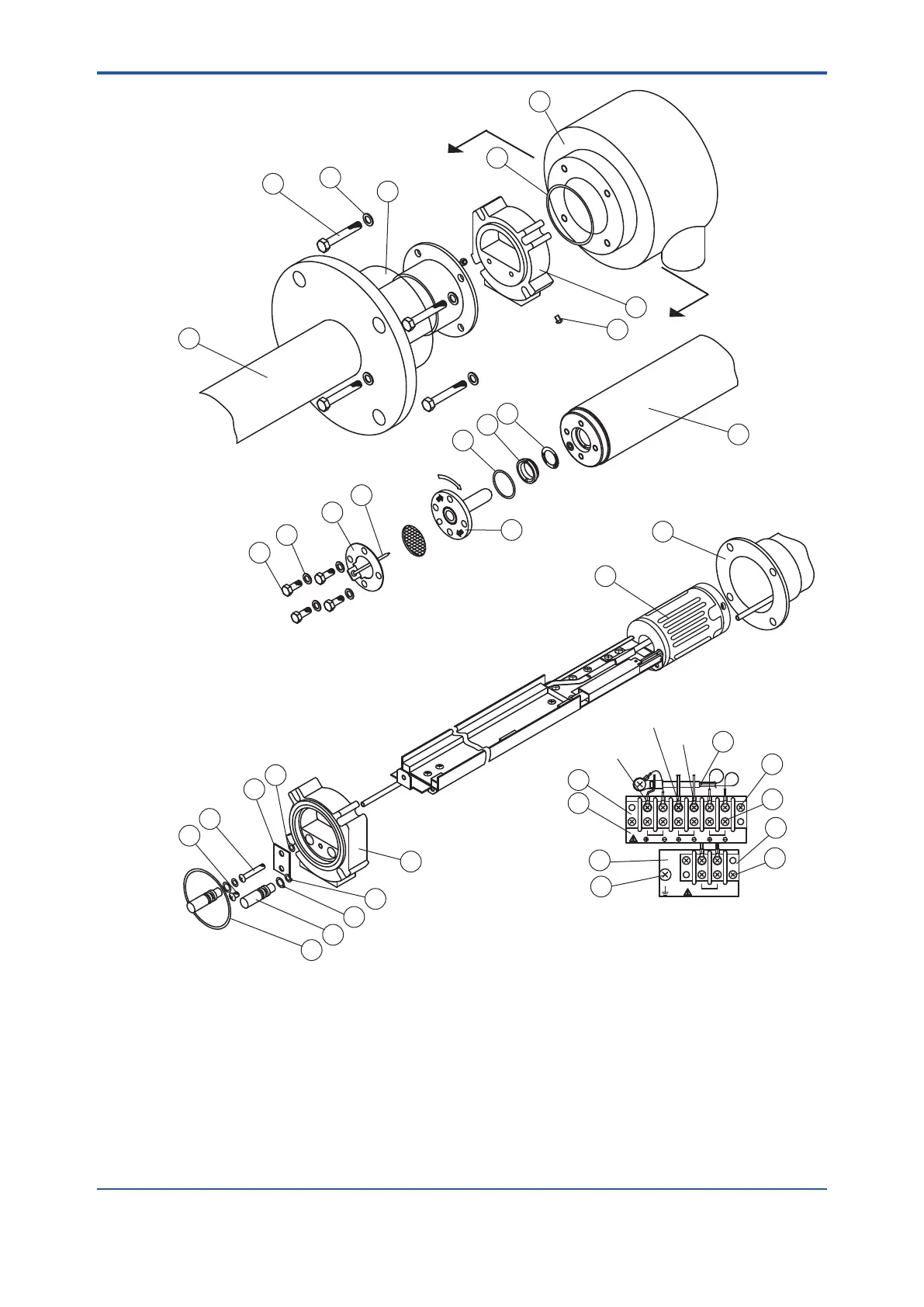

Exploded View of Detector (When pressure compensation speciîš¿ed)
n Replacement of heater strut assembly (ZR22G : Style S2 and after)
Refer to Figure 11.4 as an aid in the following discussion.
Remove the cell assembly (6), following Section 11.1.2, earlier in this manual. Open the terminal
box (16) and remove the three terminal connections – CELL +, TC + and TC -.Before disconnect
the HTR terminals, remove the terminal block screw (28). Keeping the other terminal remaining
to be connected. Disconnect the two HTR connections. (These terminals have no polarity.)
To Next Page
