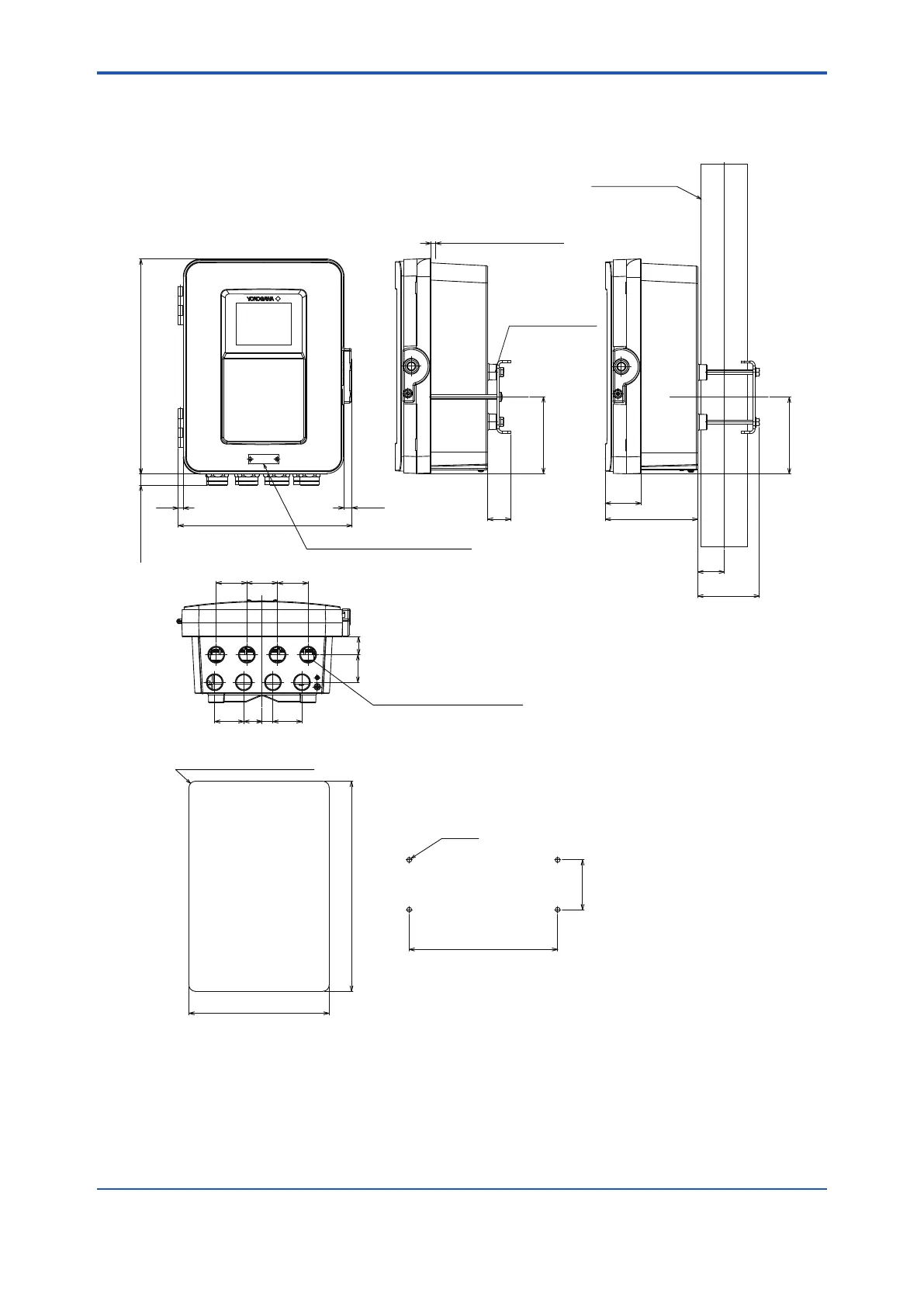

l External Dimensions
Unit: mm
280.6
6.5
227
10.5
14.8 (1/2 NPT)
Stainless steel tag plate (option)
8 - G1/2, *8 - 1/2 NPT etc
(Wiring connection) (Female)
*: 1/2 NPT with plug
1 to 6 (Panel Thickness)
2B mounting pipe
30
46.9
120.9
80.5
34.7
100
100
40 40 40
23
36
38
24
14
38
4-R8 to R10 or 4-C5 to C8
194
65
274
+2
183
+2
0
0
4 - Ø6
Wall mountingPanel Cut-out
4 -
Ø6
for Wall mounting
