YOKOGAWA ZR22G

  <2.Specications>
2-37
IM 11M12G01-02EN 1sh Edition : Mar. 25, 2021-00
324
496
225
180

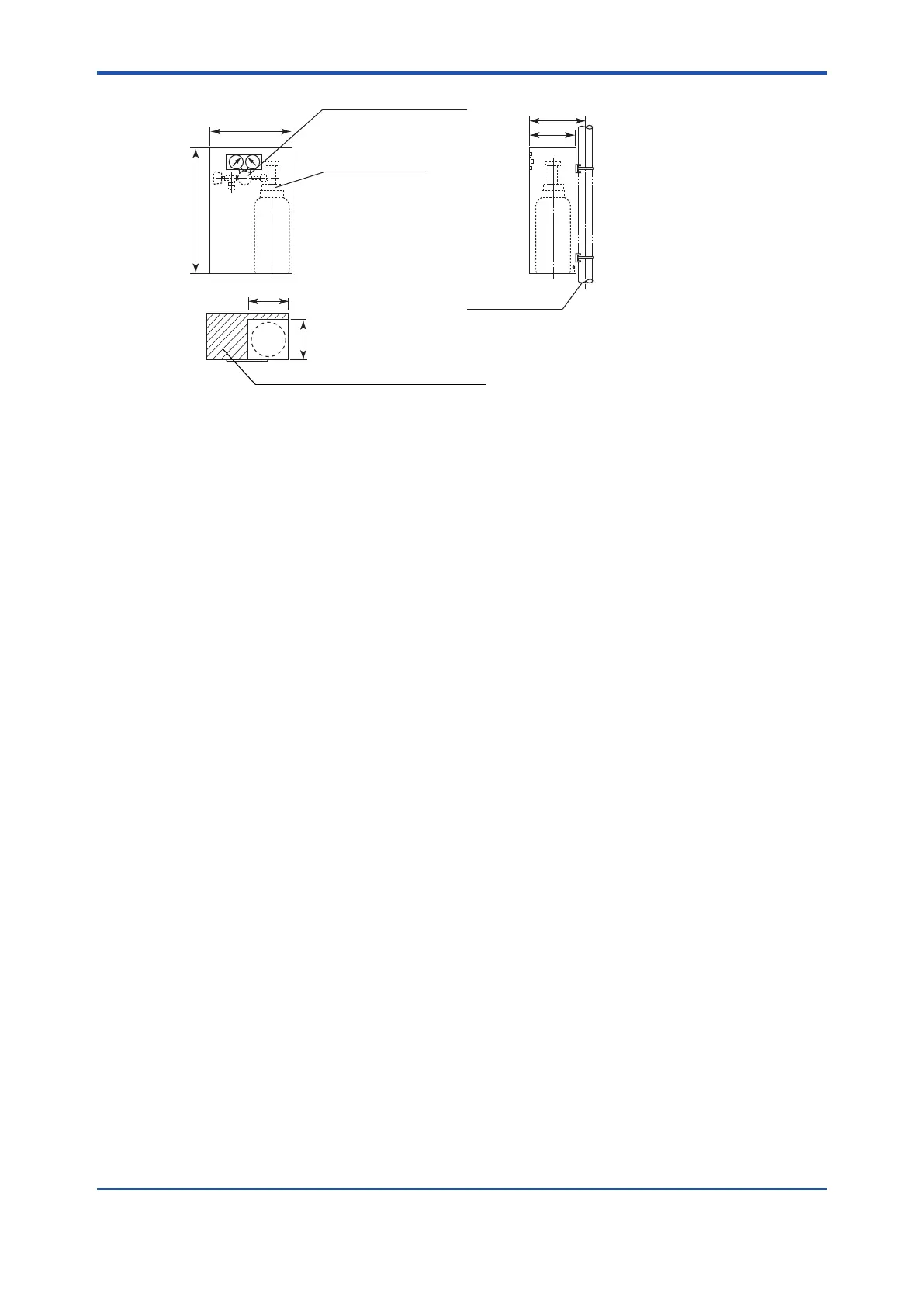

Pressure reducing valve
Zero gas cylinder
2B mounting pipe
( Ø60.5 )
(G7001ZC)
( G7013XF / G7014XF )
F2-15E.ai
(Note)The zero gas cylinder and the reducing valve are not included in the E7044KF (case assembly)
(158.3)
(160)
The oblique line is an opening portion.
