YOKOGAWA ZR22G User Manual

<3. Installation>
3-9
IM 11M12G01-02EN 1sh Edition : Mar. 25, 2021-00

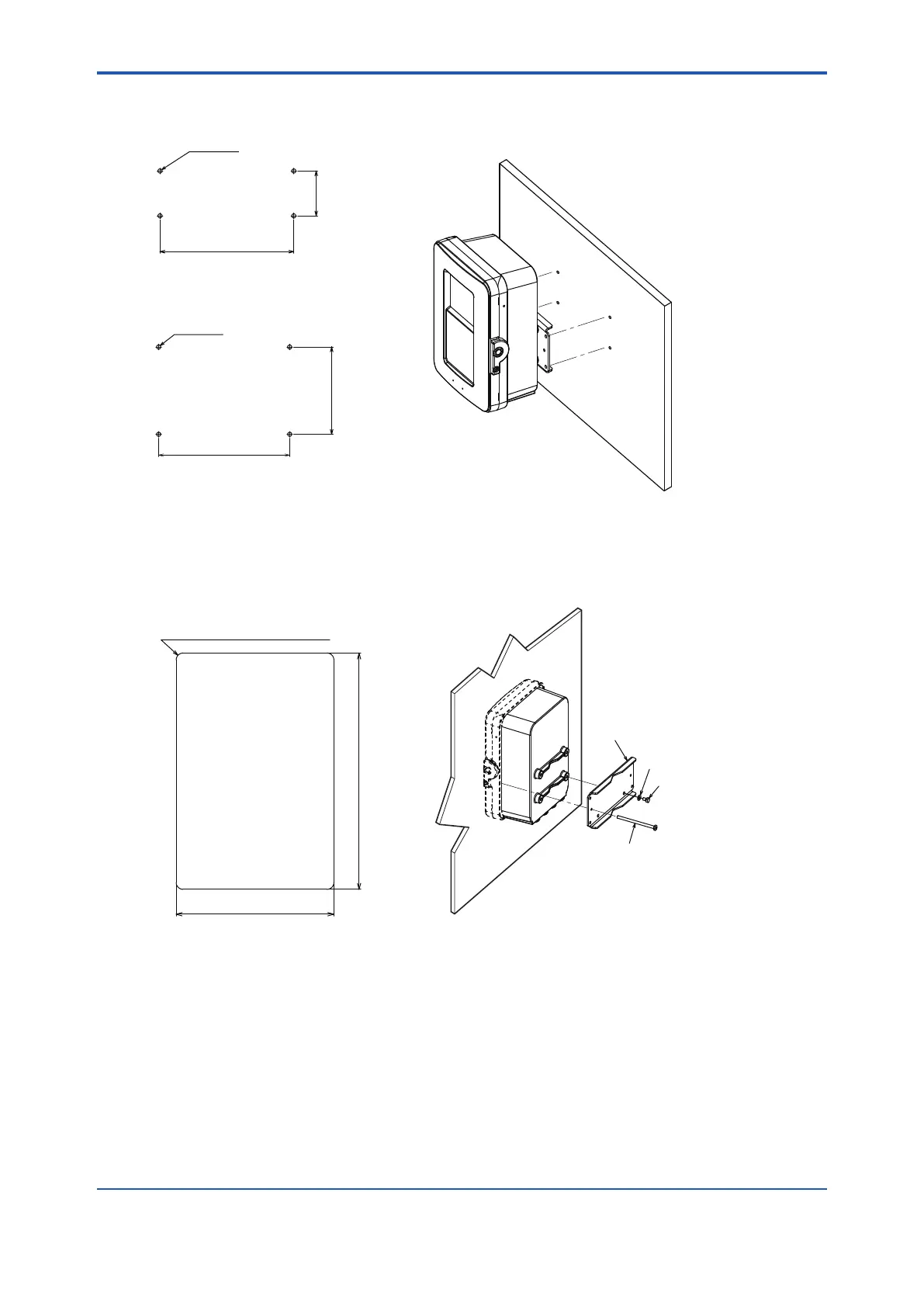

<Wall Mounting>
(1) Drill mounting holes through the wall as shown in Figure 3.10.
194
65
4 - ø6 hole
4 - ø6 hole
190
126.5
Wall mount hole （/BR）
Wall mount hole
Figure 3.10 Mounting holes Figure 3.11 Wall Mounting
(2) Mount the converter. Secure the converter on the wall using four screws.
<Panel Mounting>
(1) Cut out the panel according to Figure 3.12.
274
+2
183
+2
0
0
4-R8 to R10, or 4-C5 to C8
Mounting fitting
Washer
Screw
Clamp screw
Figure 3.12 Panel cutout sizes Figure 3.13 Panel mounting
 
(3) Insert the converter case into the cutout hole of the panel.
 
 

