The Other YN-622C User Guide
28/08/2013 Page 11 of 23
CANON FLASH CONTROL MENUS
The camera’s flash control menus are the main interface for using the 622s. The menus change
interactively as selections are made. The 622 controls or disables some menu items.
• For 6D, 5D III, 650D and other new models, select the optical pulse transmission menu.
• See the third page of this section for the new Quick Flash Control panel.
Confirmation of Setting
When a change to the camera menu is successfully applied to a remote flash, the AF-Assist Beam
of its 622 receiver will flash twice when the [Set] button is pressed, to indicate that the change was
successful.
• Press [SET] after making a menu value change. Don’t have to redo the setting!
• The confirmation light will be emitted only if the remote 622 has C.Fn 8 enabled.
Starting menu item
• Flash Control (or External Speedlite Control)
First menu
• Flash Firing Enable or disable the 622 transmitter.
• External flash func.setting 622 is identified as an external flash.
• External flash C.Fn setting FEB auto cancel – locked Enabled.
FEB sequence – locked.
AF-assist beam firing – Enabled or Disabled.
• Clear ext. flash C.Fn set.

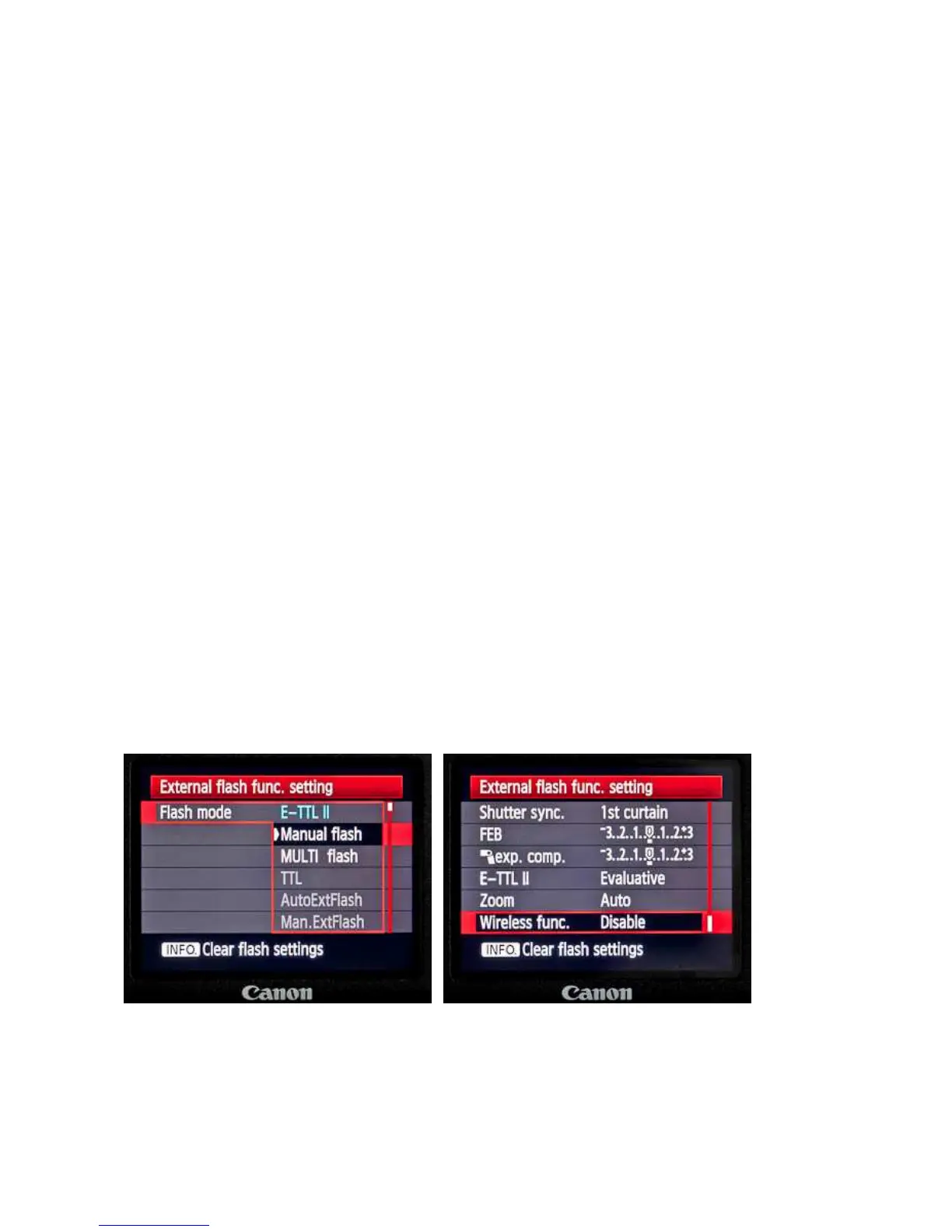

External flash function menu
• Flash mode E-TTL II, Manual, MULTI. (TTL, Auto external, Manual external disabled.)
• Shutter sync 1st curtain, 2nd curtain (if Wireless Disabled), Hi-speed
• FEB 6 stops in range -6 to +6. Interacts with FEC.
• FEC Flash FEC -2 to +2 (later cameras -3 to +3). Interacts with on-flash settings.
• E-TTL II Evaluative, Average
• Zoom Auto, 24 28 35 50 70 80 105mm (later cameras 200mm)
• Wireless Enable, Disable
• [INFO] Clear Speedlite settings.
To Next Page
