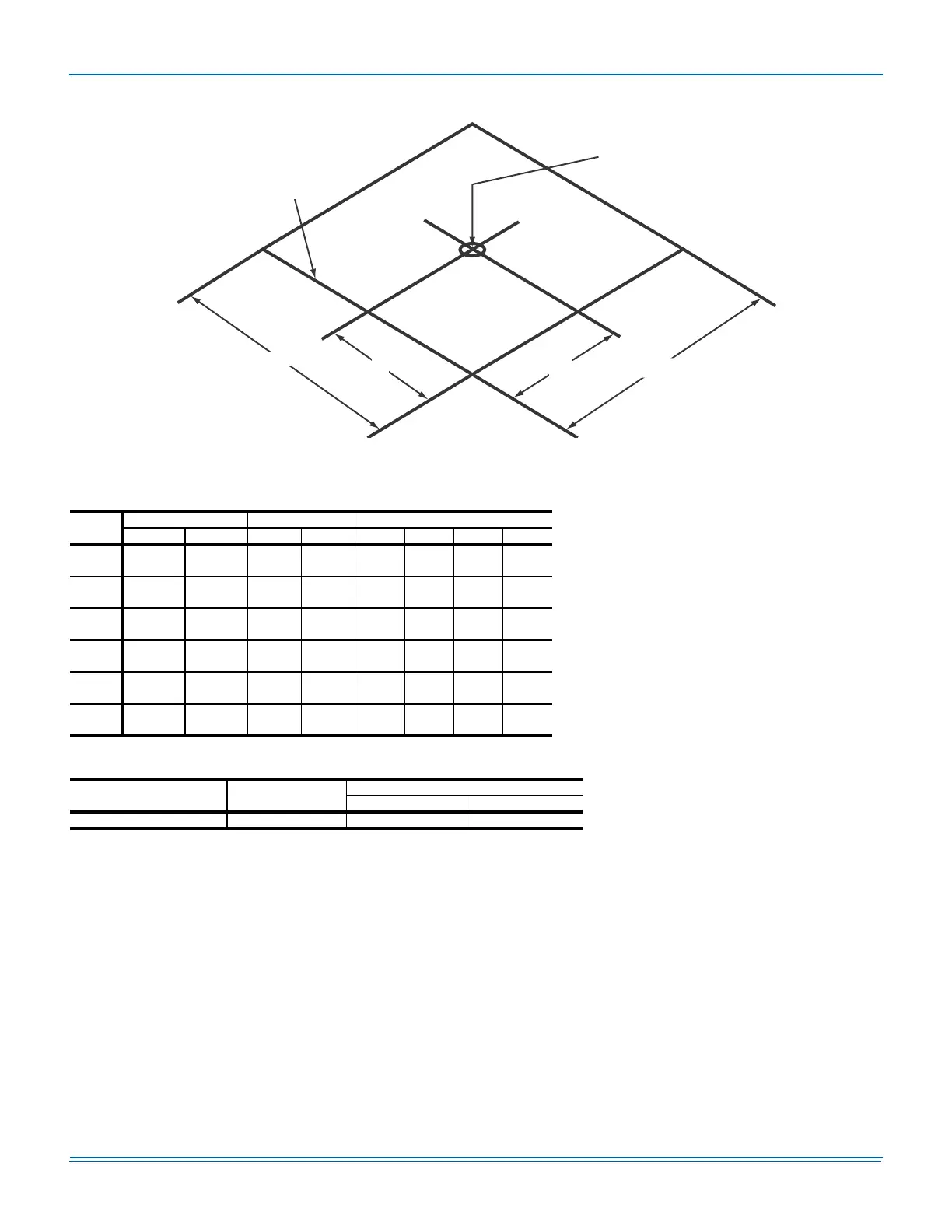

Figure 2: Unit 4 Point Load Weight
X
CENTER OF
GRAVITY
49-1/8
FRONT
OF
UNIT
Y
47-1/4
"D"
"C"
"B"
"A"
Table 2: Weights and Dimensions
Size
(Tons)
Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.)
Shipping Operating X Y ABCD
024
(2.0)
383 378 23.8 20 77 77 112 112
030
(2.5)
403 398 24 20 81 81 119 117
036
(3.0)
407 402 24 20 81 82 120 119
042
(3.5)
465 460 22.7 21.3 105 95 124 137
048
(4.0)
470 465 22.7 21.3 106 96 125 138
060
(5.0)
485 480 23 21 106 99 132 142
Table 3: Unit Accessory Weights
Unit Accessory Model
Weight (lbs.)
Shipping Operating
Add Economizer All 45 40
