York AFFINITY DNZ060 - Dimensions Front and Bottom; Dimensions Back and Bottom

508258-YIM-E-0412
8 Johnson Controls Unitary Products

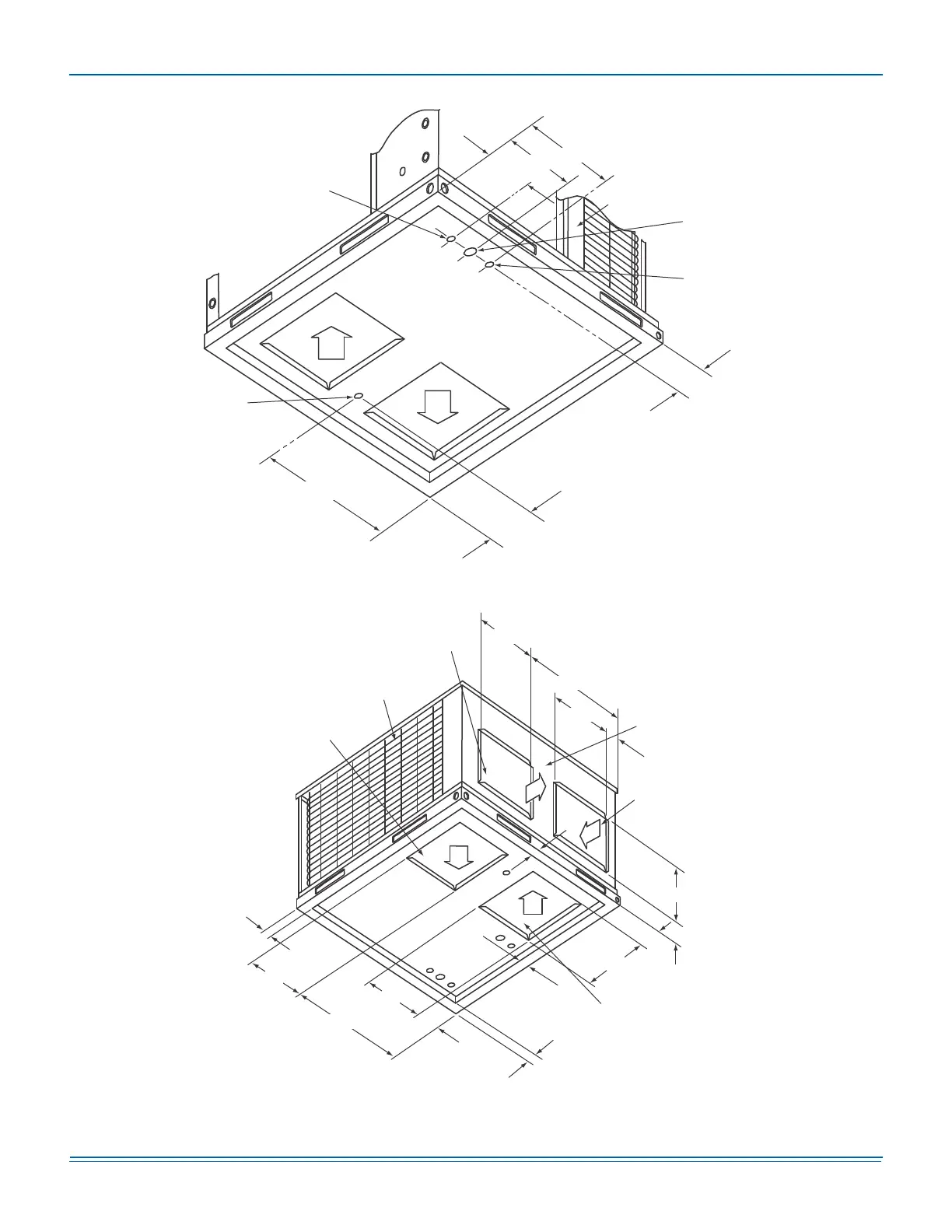

Figure 4: Dimensions Front and Bottom
Figure 5: Dimensions Back and Bottom
6
19-1/4
11-7/8
8-7/8
FRONT
GAS SUPPLY 1-5/8"
DIA. KNOCKOUT (1/2"
NPTF CONNECTION)
LOW VOLTAGE
CONN. 7/8" DIA.
KNOCKOUT
4-5/8
26-3/4
CONDENSATE
DRAIN 3/4" NPTF
HIGH VOLTAGE
CONN. 1-3/32"
DIA. KNOCKOUT
4
14-1/2
28-3/8
14-1/2
BACK
3-3/8
SIDE RETURN
AIR OPENING
14-1/2
4-1/4
3-1/2
15
1-3/4
1-3/4
BOTTOM RETURN
AIR OPENING
15
28-9/16
15
1-3/4
BOTTOM SUPPLY
AIR OPENING
*CONDENSER
COIL
SIDE SUPPLY
AIR OPENING
