P5415484
21
1. Press and hold “Menu” while in the normal mode (when
the unit is in operation).
The menu is displayed.
Menu
Function 15
Total Heat Exchanger SET
VENTI
Louver Open/Close
03
/
05
Individual Louver Setting
15:10(Fri)
Entr RtrnSel.
OK Back
OK
Cancel INDV Louver SET
Individual Louver Setting
Individual Louver Setting
Entr RtrnSel.
Back
OK
Individual Louver Setting
01-01
01-02
01-03
Select unit to set.
01-04
Entr RtrnSel.
Back
3. Select “Individual Louver Setting” from the louver setting
and press “OK”.
4. Select the indoor unit to change the louver direction by
pressing “
” and press “OK”.
(This screen is NOT displayed when the number of
indoor unit connected with the controller is
one. In this case, "5" is displayed.)
5. Press “
” and select louver direction.
The selected louver is opened and the other louvers are
closed.
6. Press “Menu” while “Back/Help” is pressed.
The confi rmation screen is displayed.
7. Select “Yes” and press “OK”. The setting "5" is displayed
after the setting change is confi rmed.
If “No” is selected and “OK” is pressed, the screen
returns to "5".
● Regarding “Individual Louver Setting”, the louver
selected at "5" is set as number "1" and the other
louver number is automatically changed to clockwise
as shown at right.
OK
Individual Louver Setting:01-03
Adjust air direction & louver angle.
1 2 34
Adj.Sel.
Entr Rtrn
Back
Change louver outlet number?
(2 1, 3 2, 4 3, 1 4)
Louver Outlet Setting:01-03
Yes No
Sel.
Entr Rtrn
OK Back
2. Select “Individual Louver Setting” from the menu and
press “OK”.
The louver setting is displayed.

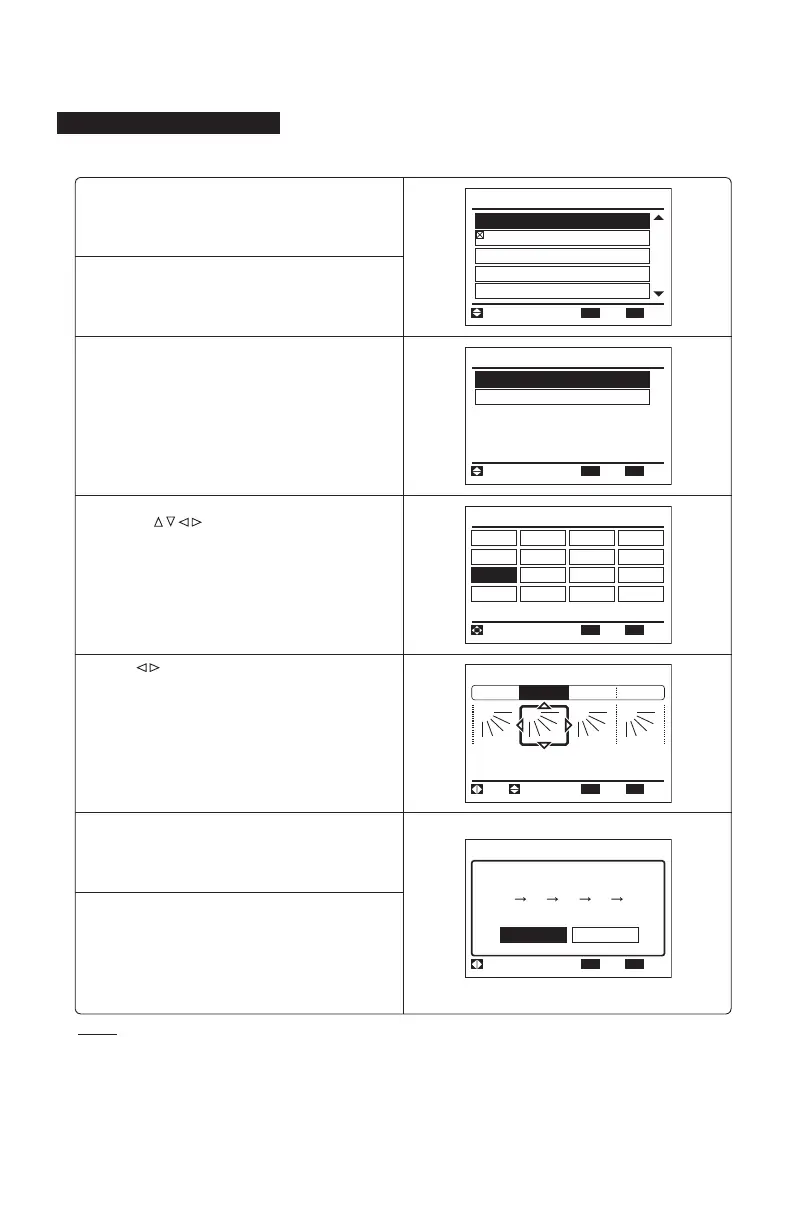

7. Individual Louver Setting
This setting is available only for an indoor unit equipped with just an individual louver.
Each louver angle can be set individually as shown in the following procedure.
NOTE:
This “Individual Louver Setting” is NOT available when two controllers are used in the same group.
(including a combination with a Wired Controller + Wireless Controller).
