York CIW01 - Function Selection and Input;Output Settings

P5415484
9
7. Select “Yes” and press “OK”.
The Test Run menu is displayed after the setting is
confi rmed.
If “No” is selected, the screen returns to "4".
• Setting from Test Run Menu
OK
Function Selection:01-03
b1 00
01
31
b2 00
b3 00
b4 00
b5 00
Item Setting
/
Adj. Entr Rtrn
Sel.
Back
Function Selection:01-03
01
31
b1 00
b2 00
b3 01
b4 00
b5 00
Item Setting
/
Adj. Entr Rtrn
Sel.
Back
OK Back
OK
Input/Output:01-03
Input 1 00 CN3 1-2
Input 2 00 CN3 2-3
Output1 00 CN7 1-2
Output2 00 CN7 1-3
Output3 00 CN8 1-2
Item Setting Connector
Adj.
Entr Rtrn
Sel.
Back
OK
Input/Output:01-03
Input 1 00 CN3 1-2
Input 2 00 CN3 2-3
Output1 01 CN7 1-2
Output2 00 CN7 1-3
Output3 00 CN8 1-2
Item Setting Connector
Adj.
Entr Rtrn
Sel.
Back

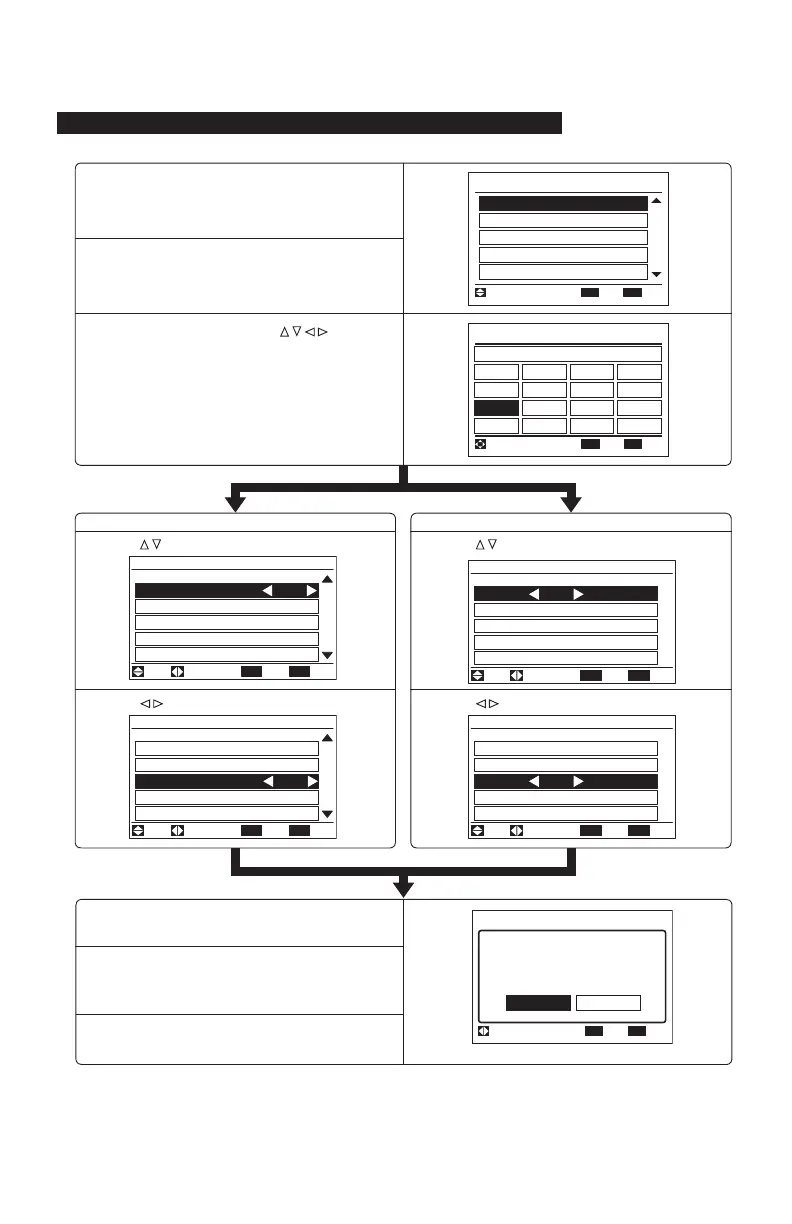

1. Press and hold “Menu” and “Back/Help” simultaneously
for at least 3 seconds during the normal mode (when unit
is not operated). The Test Run menu is displayed.
2. Select “Function Selection” or “Input/Output” from the
Test Run menu and press “OK”.
OK
Test Run Menu
Elevating Grille Setting
Input/Output
Thermistor Selection
Function Selection
01
/
03
Test Run
Entr Rtrn
Sel.
Back
OK
Function Selection
01-01
All
01-02
01-03
01-04
Entr RtrnSel.
Back
3. Select the indoor unit by pressing “ ” and touch
“OK”.
(This screen is NOT displayed when the number of an
indoor unit connected with the controller is
"1". In this case, "4" is displayed.)
Function Selection
4. Press “
” and select the item.
5. Press “ ” and change the setting.
Input/Output Setting
4. Press “
” and select the item.
5. Press “
” and change the setting.
OK
Confirm function
selection setting?
Function Selection:01-03
Yes No
Sel.
Entr Rtrn
Back
6. Press “OK” so that the confi rmation screen is displayed.
8. Press “Back/Help” on the Test Run menu to return to the
normal mode.
(Figure for Function Selection)
To set other units, press “Back/Help” at "4" and "5" so that the screen returns to "3".
(If the number of an indoor unit connected with the controller is "1", the screen returns to "1".)
6. Function Selection and Input/Output Setting from the Controller
