York DC180 - DC180-300 Unit Weights Imperial

5120416-XIM-C-0216
8 Johnson Controls Unitary Products

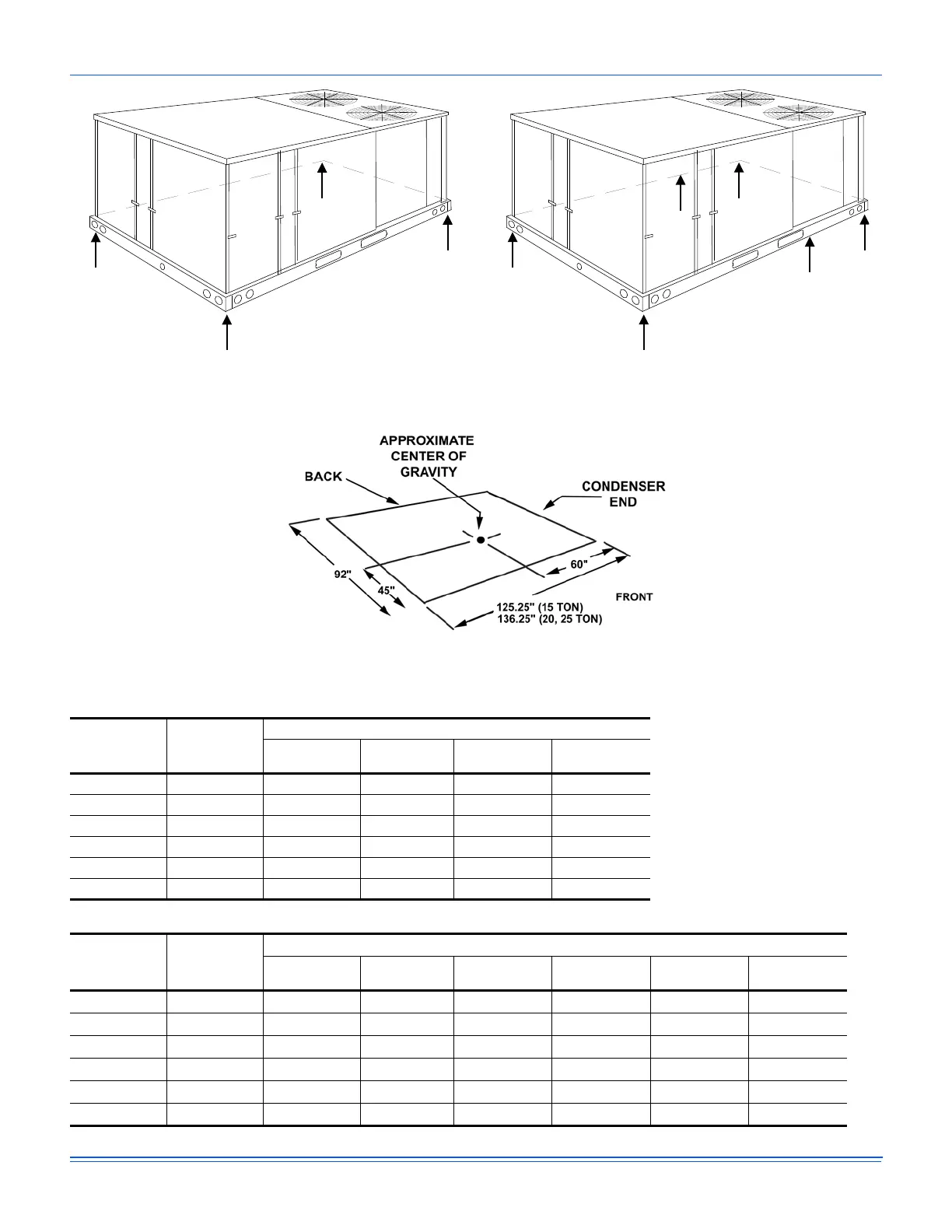

Figure 2: Unit 4 Point Load Weight Figure 3: Unit 6 Point Load Weight
Figure 4: Center of Gravity
A
B
C
D
FRONT
A
E
D
B
F
C
FRONT
Table 2: DC180-300 Unit Weights Imperial
Unit Size
Total
Shipping
Weight
4 Point Loads (lbs)
ABC D
180 Gas 2300 539 563 612 586
240 Gas 2500 538 563 715 684
300 Gas 3130 615 671 962 882
180 Elec 2100 492 514 558 536
240 Elec 2300 295 517 658 630
300 Elec 2890 487 619 646 508
Unit Size
Total
Shipping
Weight
6 Point Loads (lbs)
ABC D E F
180 Gas 2300 351 367 392 416 399 375
240 Gas 2500 334 350 426 502 481 407
300 Gas 3130 418 438 533 628 603 510
180 Elec 2100 320 335 358 380 364 343
240 Elec 2300 307 322 392 462 442 375
300 Elec 2890 415 471 528 551 492 433
