Copper Fin Condenser Coils
WEIGHT DISTRIBUTION AND ISOLATOR MOUNTING POSITIONS

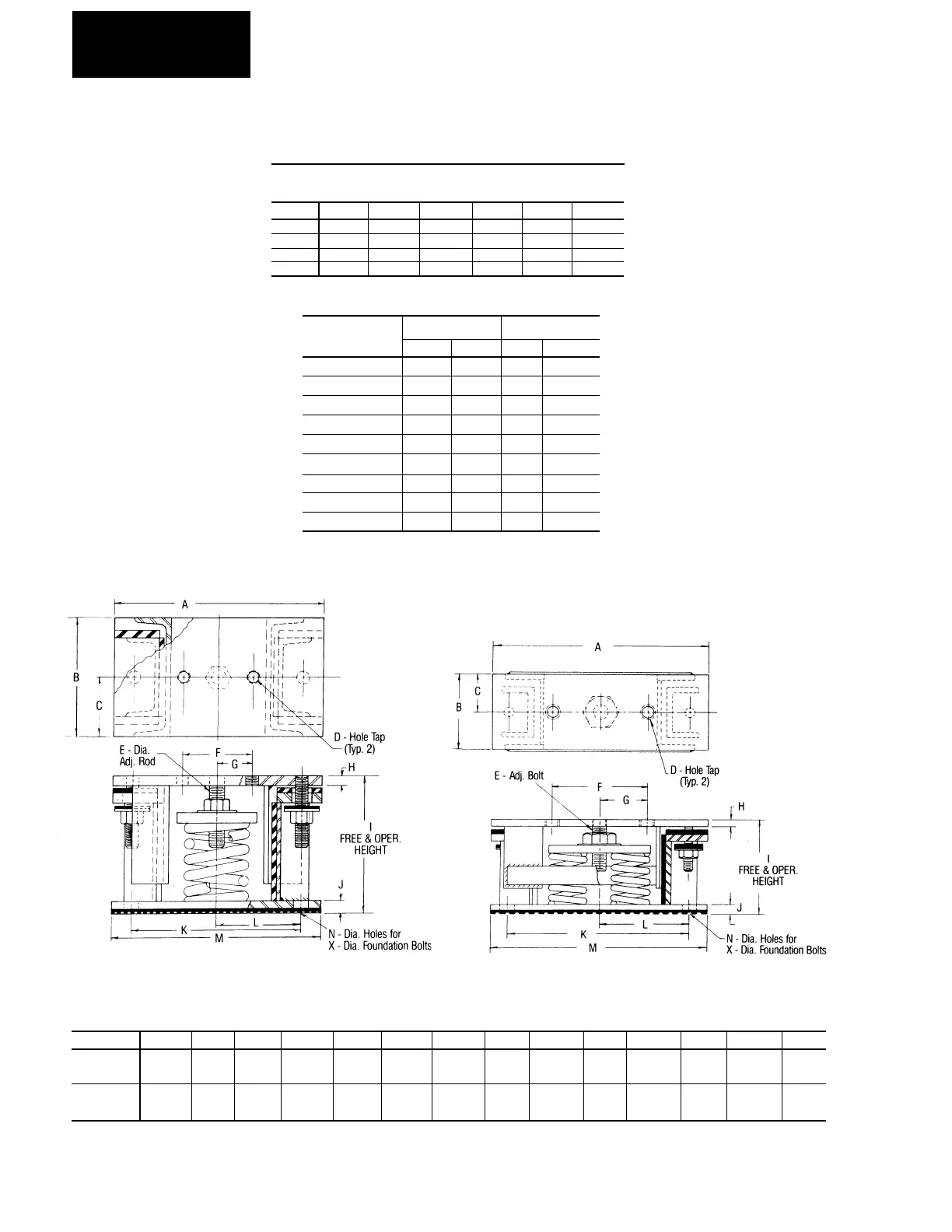

FIG. 26 – ISOLATOR DETAILS
Technical Data
ABCDEFGHI JKLMN/X
AWMR-1
10-1/2 6 3
5/8
3/4 3-1/2 1-3/4 1/2 9 5/8 8-1/2 4-1/4 10-1/2
3/4
50-553 11NC 5/8
AWMR-2
15 6 3
3/4
1 7-1/2 3-3/4 1/2 9-1/2 5/8 14-1/2 7-1/4 17
3/4
50-553 10NC 5/8
DIMENSIONS - (In.)
60 HERTZ, COPPER FINS, SEISMIC ISOLATOR SELECTIONS -
VMC MODEL # AWMR - (SEE TABLE BELOW)
YCAS A B C D E F
0283 -1-551 -1-532 -1-530 -1-532 -1-532 -1-531
0303 -1-551 -1-532 -1-530 -1-532 -1-532 -1-531
0323 -1-551 -1-551 -2-531 -2-551 -1-551 -1-551
0343 -1-551 -1-551 -2-531 -2-551 -1-551 -1-551
ISOLATOR
MAX LOAD DEFL.
TYPE & SIZE
lbs. kg in. mm
AWMR-1-53 1000 453.6 2 51
AWMR-1-530 1150 521.6 2 51
AWMR-1-531 1276 578.8 2 51
AWMR-1-532 1500 680.4 2 51
AWMR-1-551 1676 760.2 2 51
AWMR-1-552 1900 861.8 2 51
AWMR-1-553 2200 997.9 2 51
AWMR-2-531 2552 1157.6 2 51
AWMR-2-532 3000 1360.8 2 51
