York MILLENIUM YCAS Series - Compressor Components

87
YORK INTERNATIONAL
FORM 201.18-NM6
COMPRESSOR COMPONENTS

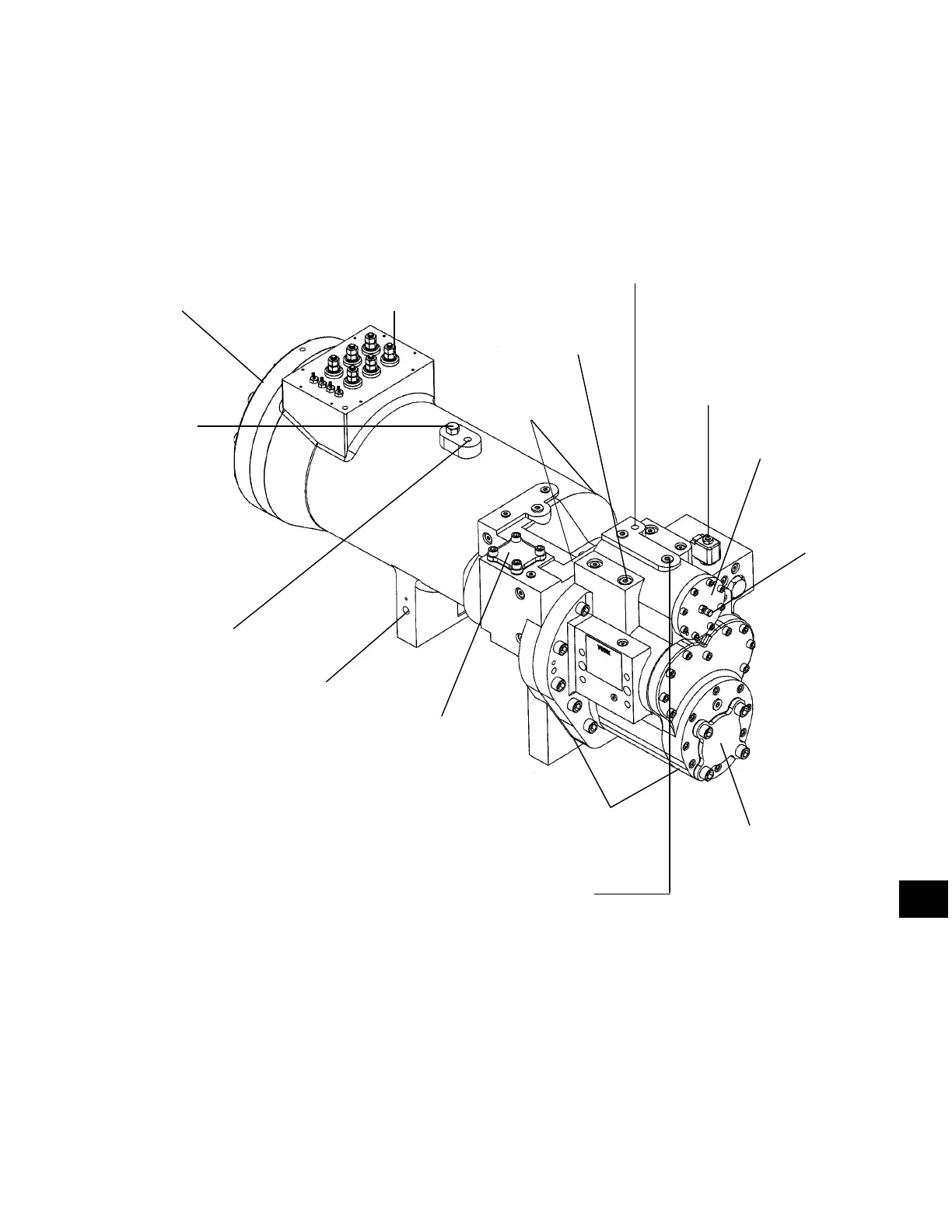

FIG. 30 – COMPRESSOR COMPONENTS
7
SUCTION GAS IN
MOTOR TERMINALS
LIFTING LUG
THREADED HOLE
OIL
HEATER
ECONOMIZER
GAS IN
DISCHARGE
CASE
OIL INLET
FROM CONDENSER
CODING COIL
DISCHARGE GAS OUT
OIL FILTER
BLEED &
EVACUATION
POINT
OIL FILTER
COVER PLATE
CAPACITY CONTROL SOLENOID
(CAPACITY CONTROL, 3 WAY VALVE,
IS LOCATED UNDER THE SOLENOID)
LIFTING LUG
THREADED HOLE
OIL PRESSURE
TRANSDUCER
LOCATION
ROTOR CASE
STATOR
LOCKING
BOLT
LD03668
