York YCAS - Fig. 22 - Elementary Wiring Diagram

To Next Page

To Previous Page

YORK INTERNATIONAL

FORM 201.19-NM6 (804)

Technical Data

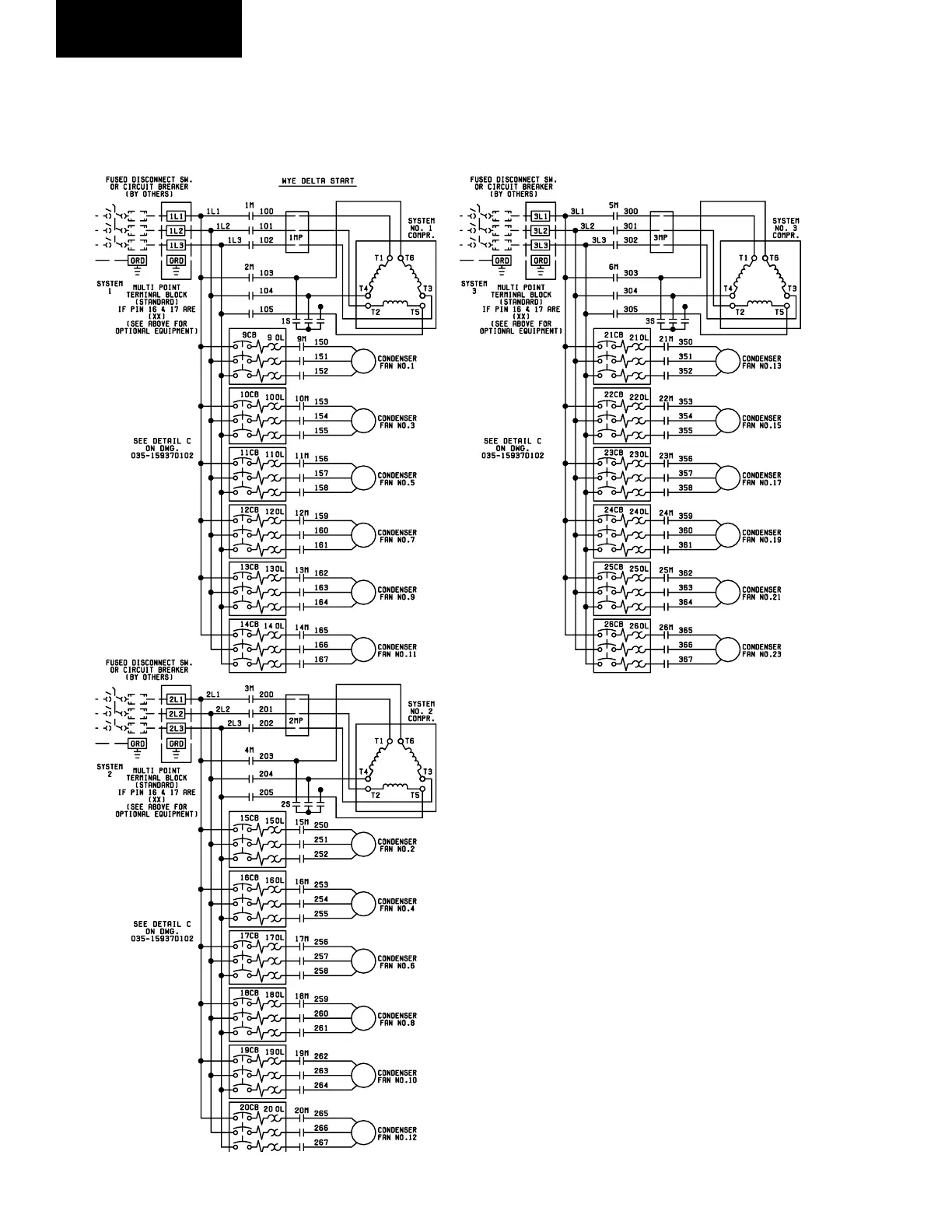

FIG. 22 – ELEMENTARY WIRING DIAGRAM – WYE DELTA START 3 COMPRESSOR

ELEMENTARY WIRING DIAGRAM

YCAS0693 - YCAS0953 (3 COMPRESSOR)

WYE DELTA START

035-15937-10

Rev - A

LD09353
