York YCAS - Fig. 24 - Elementary Wiring Diagram Dxst Direct Drive Control Circuit

To Next Page

To Previous Page

YORK INTERNATIONAL

FORM 201.19-NM6 (804)

Technical Data

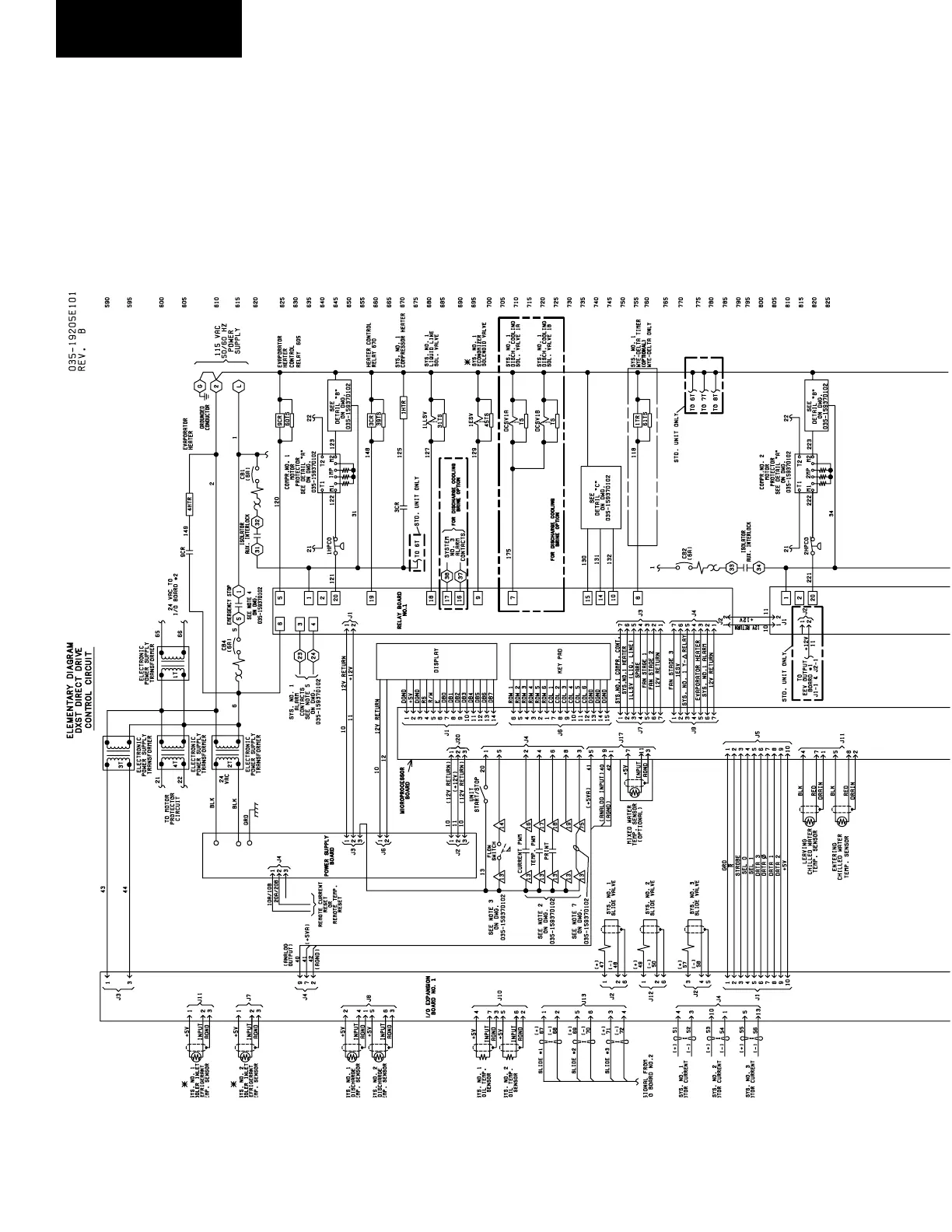

FIG. 24 – ELEMENTARY WIRING DIAGRAM DXST DIRECT DRIVE CONTROL CIRCUIT

LD09354

ELEMENTARY WIRING DIAGRAM

YCAS0693 - YCAS0953 (3 COMPRESSOR)

Main Page
