SECTION 2 – OPTIVIEW CONTROL CENTER
FORM 160.69-O1
ISSUE DATE: 9/30/2012
2
CUSTOM VIEW SCREEN
Overview
This screen allows up to 10 Service Technician select-
ed parameters to be displayed. These parameters are
selected from a list on the Custom View Setup Screen.
This allows the Service Technician to display param-
eters pertinent to a particular problem during trouble-
shooting. At completion of the service call, the display
can be cleared or the parameters can be left there for
monitoring by operations personnel.
Display Only
None
Programmable
Print
Access Level Required: VIEW
This generates a listing of the parameters displayed on
this screen.
Navigation
Home
Access Level Required: VIEW
Causes an instant return to the Home Screen.
History
Access Level Required: VIEW
Causes an instant return to the History Screen.
Setup
Access Level Required: SERVICE
Causes a jump to the sub-screen that allows selection
of the parameters to be displayed.

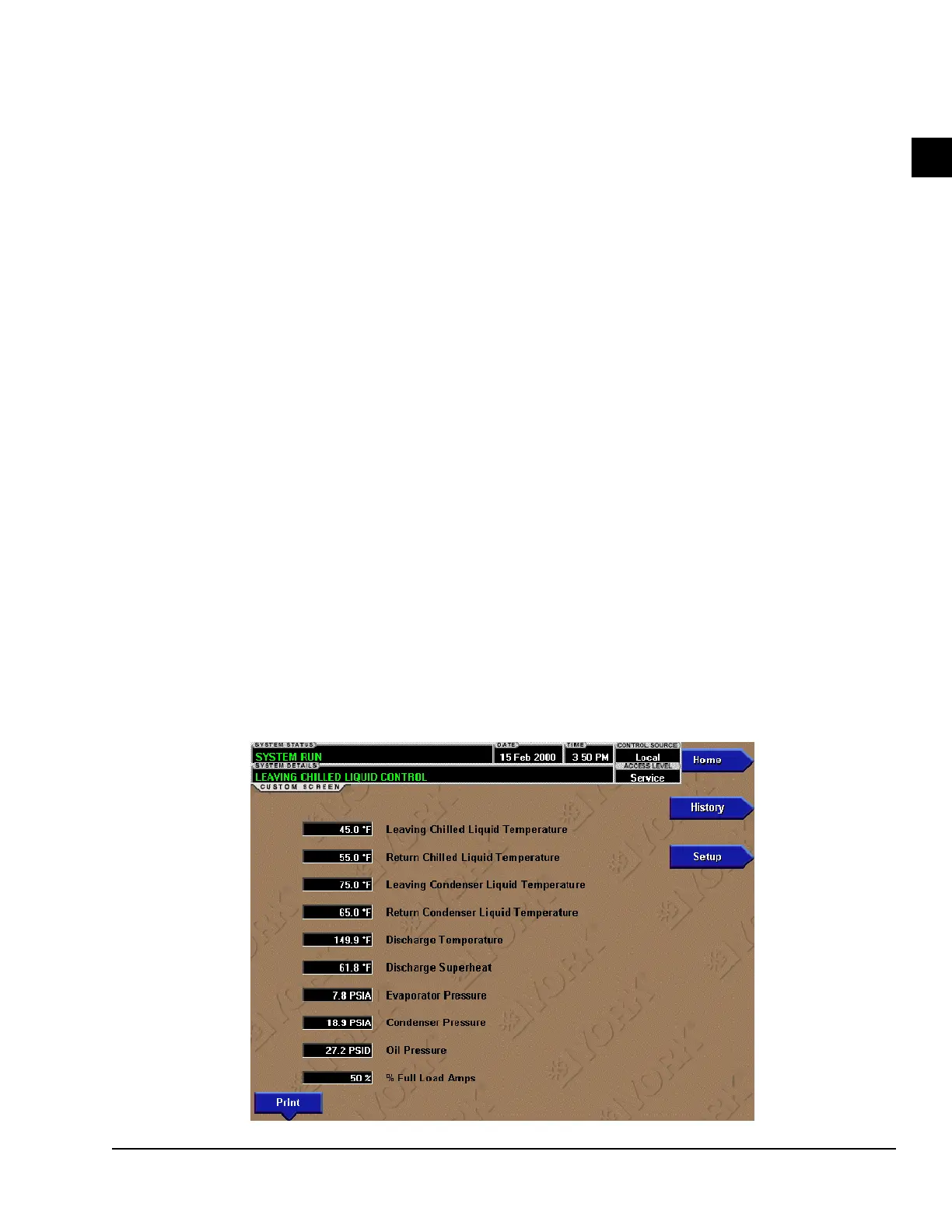

FIGURE 41 - CUSTOM VIEW SCREEN
00324VIPC
