York YD360 Series User Manual

5012886-YIM-B-0517
16 Johnson Controls Unitary Products
Piping And Electrical Connection Sizes

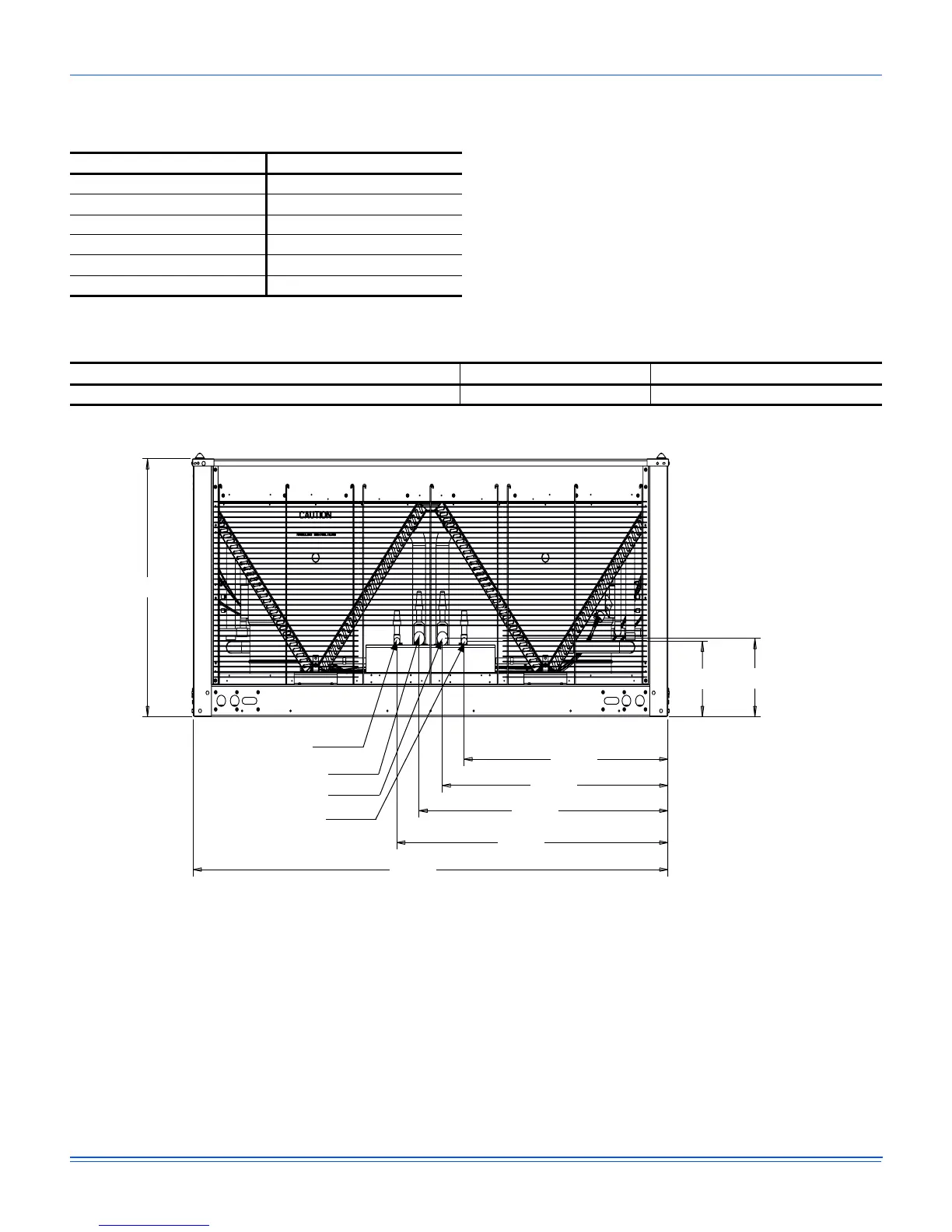

Figure 9: 30 Ton Piping Connections
Table 7: Piping And Electrical Connection Sizes (30/40/50T) (Inches)
CONNECTION ENTRY SIZE
SUCTION LINE SYS #1 1-5/8 OD
LIQUID LINE SYS #1 7/8 OD
SUCTION LINE SYS #2 1-5/8 OD
LIQUID LINE SYS #2 7/8 OD
POWER WIRING KNOCKOUT SEE TABLE 8
CONTROL WIRING 7/8 HOLE
Table 8: Electrical Power Knockout Sizes (Inches)
CONNECTION ENTRY 30-40-50T/230V 30-40-50T/460-575V
POWER WIRING 2-1/2” 1-1/2”
Liquid (Sys 2)
Suction (Sys 2)
Liquid (Sys 1)
Suction (Sys 1)
37.518
88.140
50.313
46.190
41.859
37.826
10.984
11.385
