JOHNSON CONTROLS
96
FORM 150.72-ICOM6
ISSUE DATE: 12/29/2017
SECTION 5 – TECHNICAL DATA

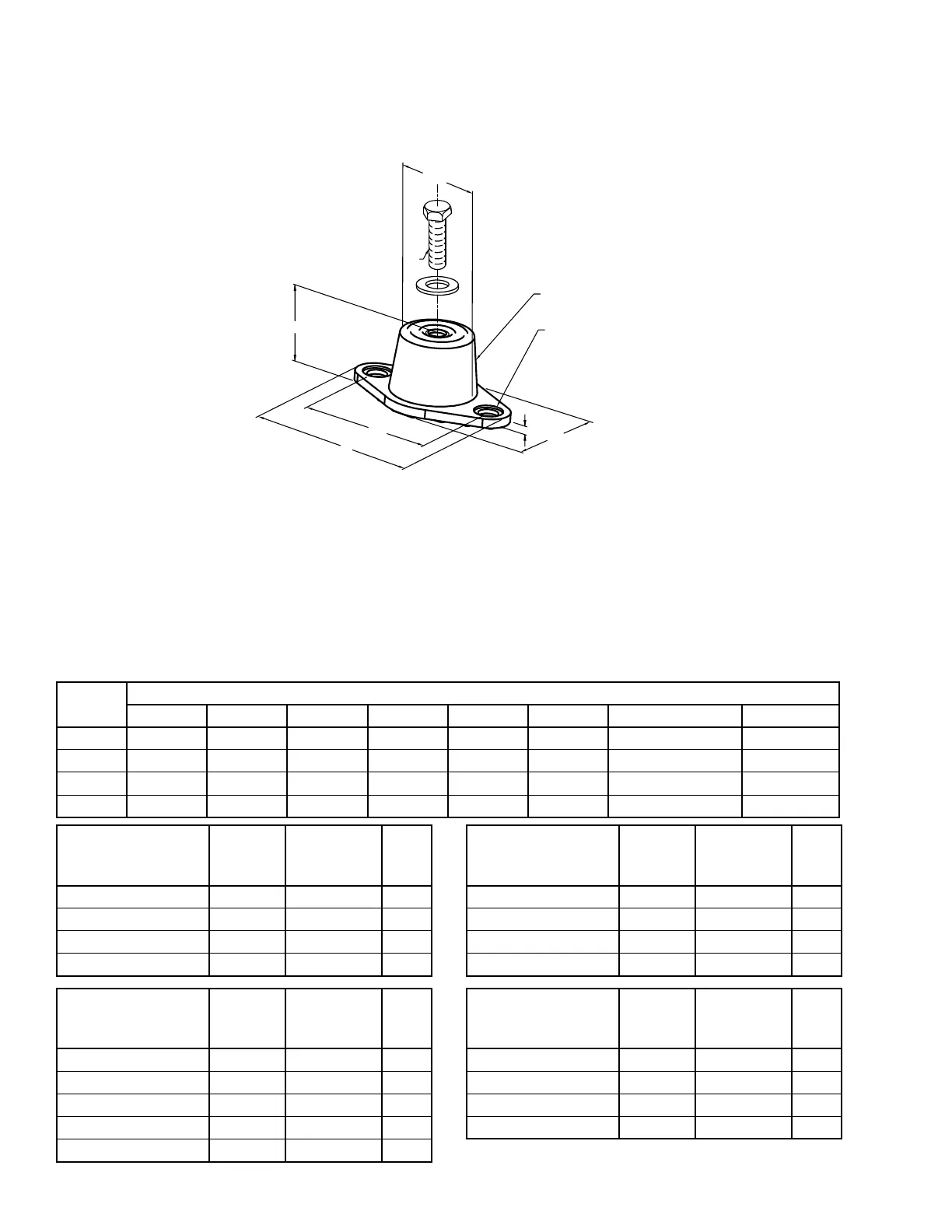

NEOPRENE ISOLATOR CROSS-REFERENCE
LD13760A
RD-Style
Isolators
L
AL
DW
BT
HF
ø AD THRU
TYP 2 PLACES
MOLDED
DURULENE
CD
W
Notes:
1. All dimensions are inches, interpreted per ANSI Y14.
2. Refer to Page 98 for installation instructions.
3. Mount molded in weather resistant duralene compound as standard. Also available in other materials
such as natural rubber, extreme high temperature silicone, high-damped silicone, nitrile and EDPM.
4. AL = Mounting hole center to center spacing.
5. HF = Free height of mount, prior to loading. Operating height calculated by the free height less the
static deflection under load. All dimensions for reference only.
6. Hardware zinc-electroplated.
1. All dimensions are inches, interpreted per ANSI
Y14.
2. See next page for installation instructions.
3. Mount molded in weather resistant duralene com-
pound as standard. Also available in other materi-
als such as natural rubber, extreme high tempera-
ture silicone, high-damped silicone, nitrile and
EDPM.
4. AL = Mounting hole center to center spacing.
5. HF = Free height of mount, prior to loading. Op-
erating height calculated by the free height less
the static deection under load. All dimensions
for reference only.
6. Hardware zinc-electroplated.
MOUNT
TYPE
DIMENSION DATA (INCHES)
L W HF AL AD BT CD DW
RD1-WR 3.13 1.75 1.25 2.38 0.34 0.19 5/16-18 UNC X 3/4 1.25
RD2-WR 3.88 2.38 1.75 3.00 0.34 0.22 3/8-16 UNC X 1 1.75
RD3-WR 5.50 3.38 2.88 4.13 0.56 0.25 1/2-13 UNC X 1 2.50
RD4-WR 6.25 4.63 2.75 5.00 0.56 0.38 1/2-13 UNC X 1 3.00
MODEL
NUMBER
RATED
CAPACITY
(LBS)
RATED
DEFLECTION
(IN)
DURO
(± 5)
RD2-LIGHT BLUE-WR 35 0.4 30
RD2-BROWN-WR 45 0.4 40
RD2-BRICK RED-WR 70 0.4 50
RD 2-LIME-WR 120 0.4 60
MODEL
NUMBER
RATED
CAPACITY
(LBS)
RATED
DEFLECTION
(IN)
DURO
(± 5)
RD3-Brown-WR 250 0.5 40
RD3-Brick Red-WR 525 0.5 50
RD3-Lime-WR 750 0.5 60
RD3 Charcoal-WR 1100 0.5 70
MODEL
NUMBER
RATED
CAPACITY
(LBS)
RATED
DEFLECTION
(IN)
DURO
(± 5)
RD2-LIGHT BLUE-WR 135 0.5 30
RD2-BROWN-WR 170 0.5 40
RD2-BRICK RED-WR 240 0.5 50
RD 2-LIME-WR 380 0.5 60
RD2 CHARCOAL-WR 550 0.5 70
MODEL
NUMBER
RATED
CAPACITY
(LBS)
RATED
DEFLECTION
(IN)
DURO
(± 5)
RD4-BROWN-WR 1500 0.5 40
RD4-BRICK RED-WR 2250 0.5 50
RD4-LIME-WR 3000 0.5 60
RD4 CHARCOAL-WR 4000 0.5 70
