York YLUA Series - Page 27

FORM 150.63-EG4 (1012)
27JOHNSON CONTROLS
New Model

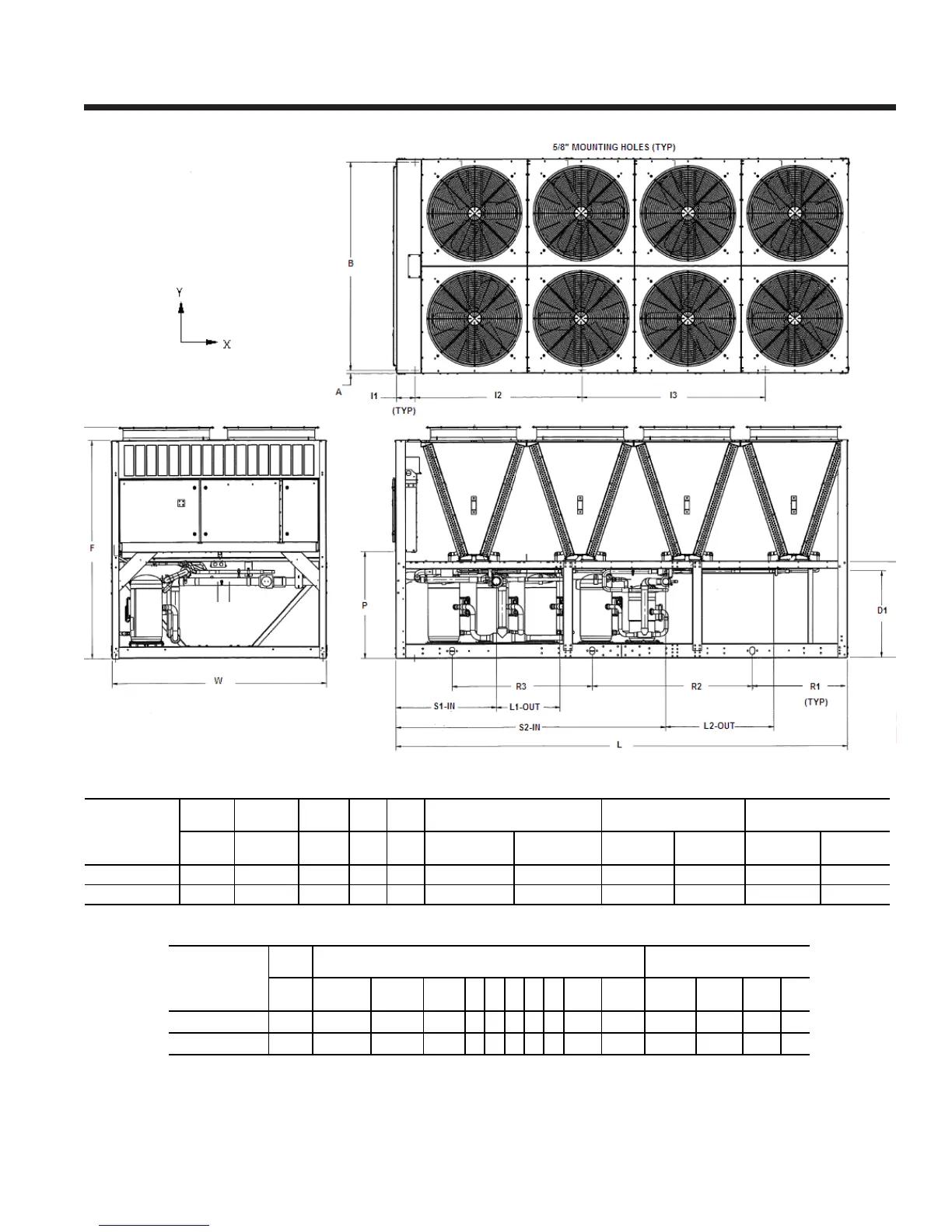

Length Width Height Connection Sizes
L W H F P Suction In Liquid Out Suction In Liquid Out
YLUA0468YE 187.5 88.3 95.3 89.7 43.9 3.1 / 2.7 1.4 / 1.1 41.4 26.5
111.3 44.7
YLUA0498YE 187.5 88.3 95.3 89.7 43.9 3.1 / 2.7 1.4 / 1.1 41.4 26.5
111.3 44.7
System 1 Dimensions System 2 Dimensions
Suction In 1 /
2
Liquid Out 1 /
2
New Model
Isolator Location Dimensions Rigging Hole Locations
D2 I1 I2 I3 I4 I5 I6 I7 I8 A B R1 R2 R3 R4
YLAA0468YE
35.5 7.6 69 80 1.4 85.5 39 66 58
YLAA0498YE
35.5 7.6 69 80 1.4 85.5 39 66 58
