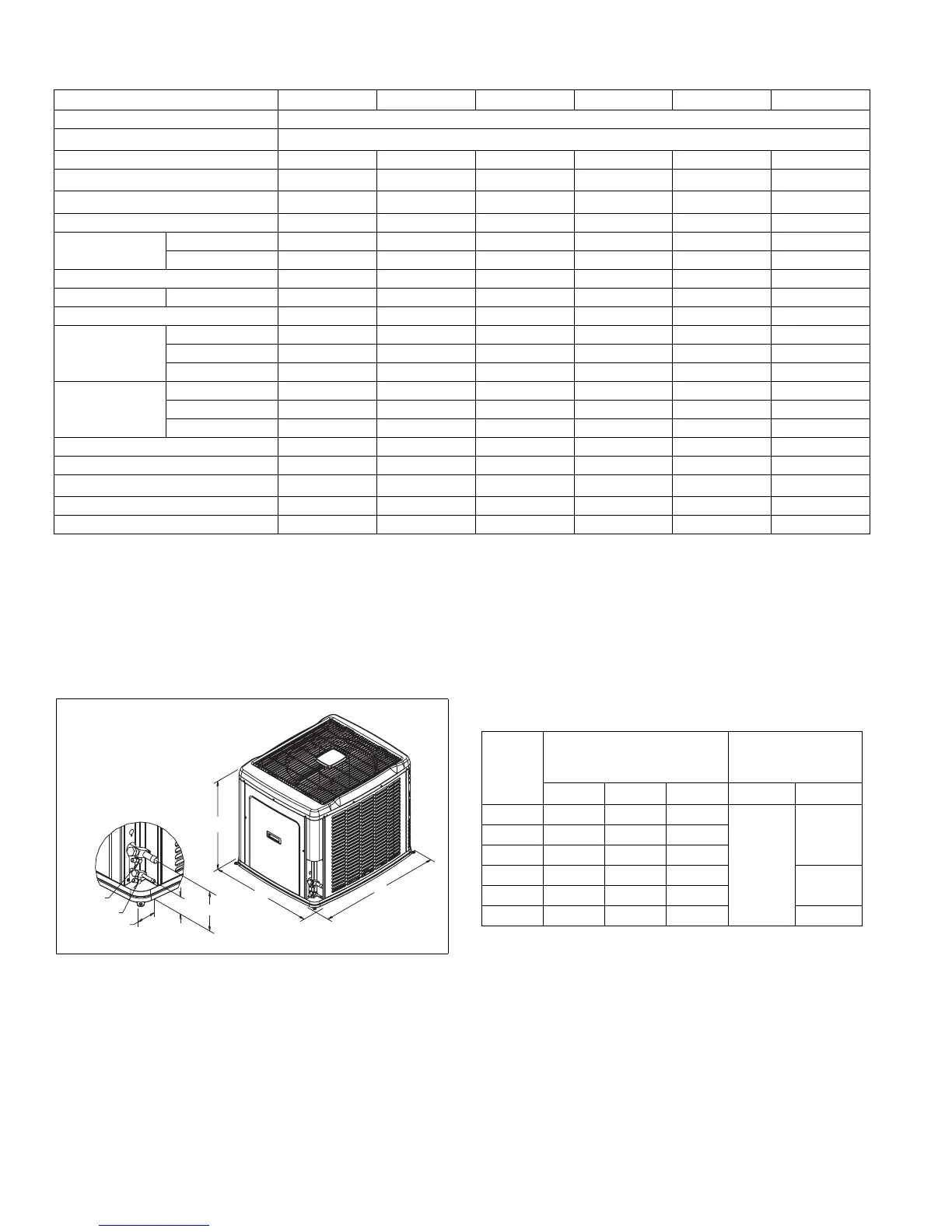

2 Johnson Controls Unitary Products
632151-YTG-A-1010
All dimensions are in inches. They are subject to change without notice.
Certified dimensions will be provided upon request.
* Adapter fitting required for 1-1/8” line set.
Physical and Electrical Data
Model
YZF02413(C) YZF03013(C) YZF03613(C) YZF04213(C) YZF04813(C) YZF06013(C)
Unit Supply Voltage 208-230V, 1 60Hz
Normal Voltage Range
1
187 to 252
Minimum Circuit Ampacity 17.5 17.3 22.6 26.1 26.9 33.8
Max. Overcurrent Device Amps
2
30 30 35 45 45 50
Min. Overcurrent Device Amps
3
20 20 25 35 30 35
Compressor Type Scroll Scroll Scroll Scroll Scroll Scroll
Compressor Amps
Rated Load 13.4 12.8 17 19.8 20.5 26
Locked Rotor 58.3 64 77 115 115 118
Crankcase Heater No No No No No No
Fan Motor Amps Rated Load 0.7 1.3 1.3 1.3 1.3 1.3
Fan Diameter Inches 24 24 24 24 24 24
Fan Motor
Rated HP 1/8 1/4 1/4 1/4 1/4 1/4
Nominal RPM 1075 850 850 850 850 850
Nominal CFM 2750 3800 3800 3800 3400 3700
Coil
Face Area Sq. Ft. 20.6 23.6 23.6 23.6 23.6 23.6
Rows Deep111122
Fins / Inch 22 22 22 22 22 14
Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8
Vapor Line Set OD (Field Installed) 3/4 3/4 3/4 7/8 7/8 1-1/8
Unit Charge (Lbs. - Oz.)
4
9 – 3 9 – 13 10 – 10 11 – 12 14 – 5 14 – 11
Charge Per Foot, Oz. 0.62 0.62 0.62 0.67 0.67 0.75
Operating Weight Lbs. 199 228 230 234 283 298
1. Rated in accordance with ARI Standard 110, utilization range “A”.
2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.
3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.
4. The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet,
add or subtract the amount of refrigerant, using the difference in length multiplied by the per foot value.
VAPOR
LIQUID
2-3/8
3-1/8
6-1/2
C
A
B
Unit
Model
Dimensions
(Inches)
Refrigerant
Connection
Service Valve Size
A B C Liquid Vapor
024 39-1/2 37 31
3/8”
3/4”030 39-1/2 42 34
036 39-1/2 42 34
042 39-1/2 42 34
7/8”
048 39-1/2 42 34
060 39-1/2 42 34 7/8”*
