Page - 22/50 AFGZP0BA – SMART CONSOLE - User Manual

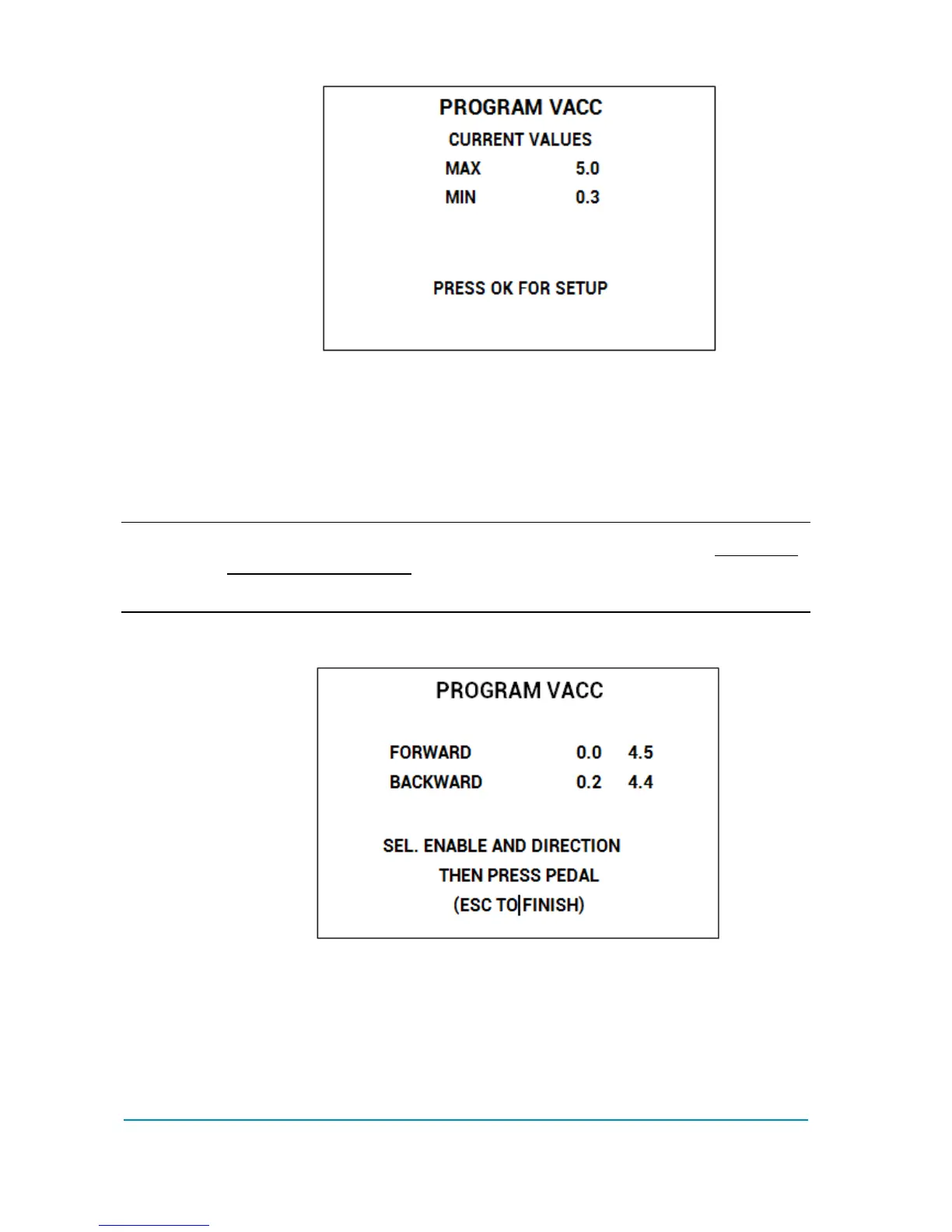

When OK is pressed PROGRAM VACC procedure will start: console will invite
you:
To select the Enable switch, if any
To select the direction switch (either forward or backward)
To press the pedal up to its maximum excursion.
Displayed values will vary accordingly to operator inputs.
4 Sequence above can slightly vary depending on controller firmware. Anyway the
logic will remain the same: before programming the min/max values, execute any
starting sequence which is necessary, then press the pedal/push the joystick
When ESC is pressed, console will ask if programmed values must be saved or
discarded.
END CONNECTION
To end connection, just return to the HOME SCREEN: at this point it is possible
to remove the cable from the target controller.
If cable is removed while it is inside other menu, the console will return a NO
COMMUNICATION alarm.
