3.7 DESCRIPTION OF POWER CONNECTIONS

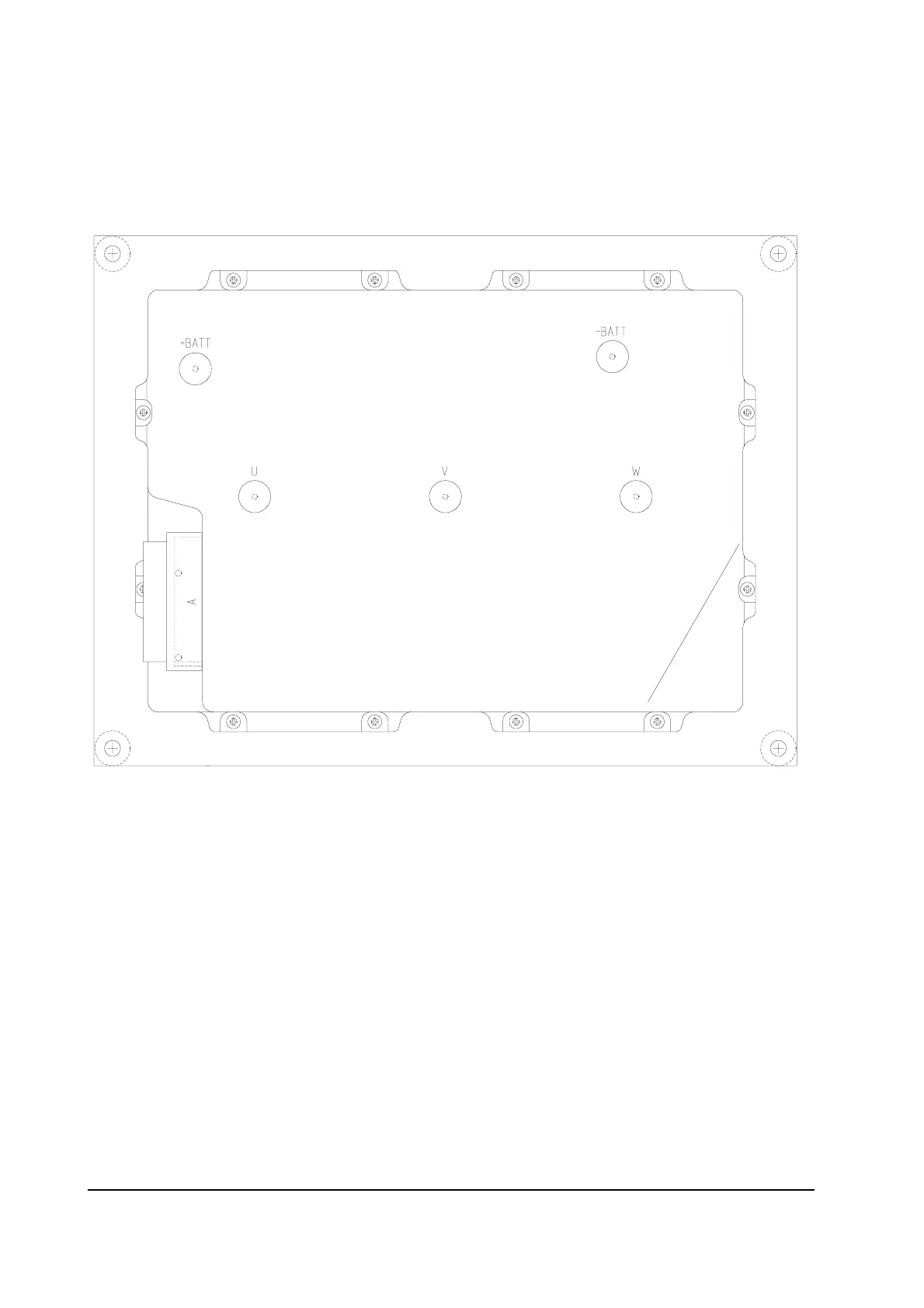

View of the power bars:
-BATT Negative of the battery.
+BATT Positive of the battery.
U; V; W Connection bars of the three motor phases; follow this sequence and the indica-
tion on the motor.
