Page 29
4 PROGRAMMING & ADJUSTMENTS USING DIGITAL CONSOLE
4.1 ADJUSTMENTS VIA CONSOLE
Adjustment of Parameters and changes to the inverter’s configuration are made using the
Digital Console. The Console is connected to the “F” connector of the inverter (Minifit
connectors version).

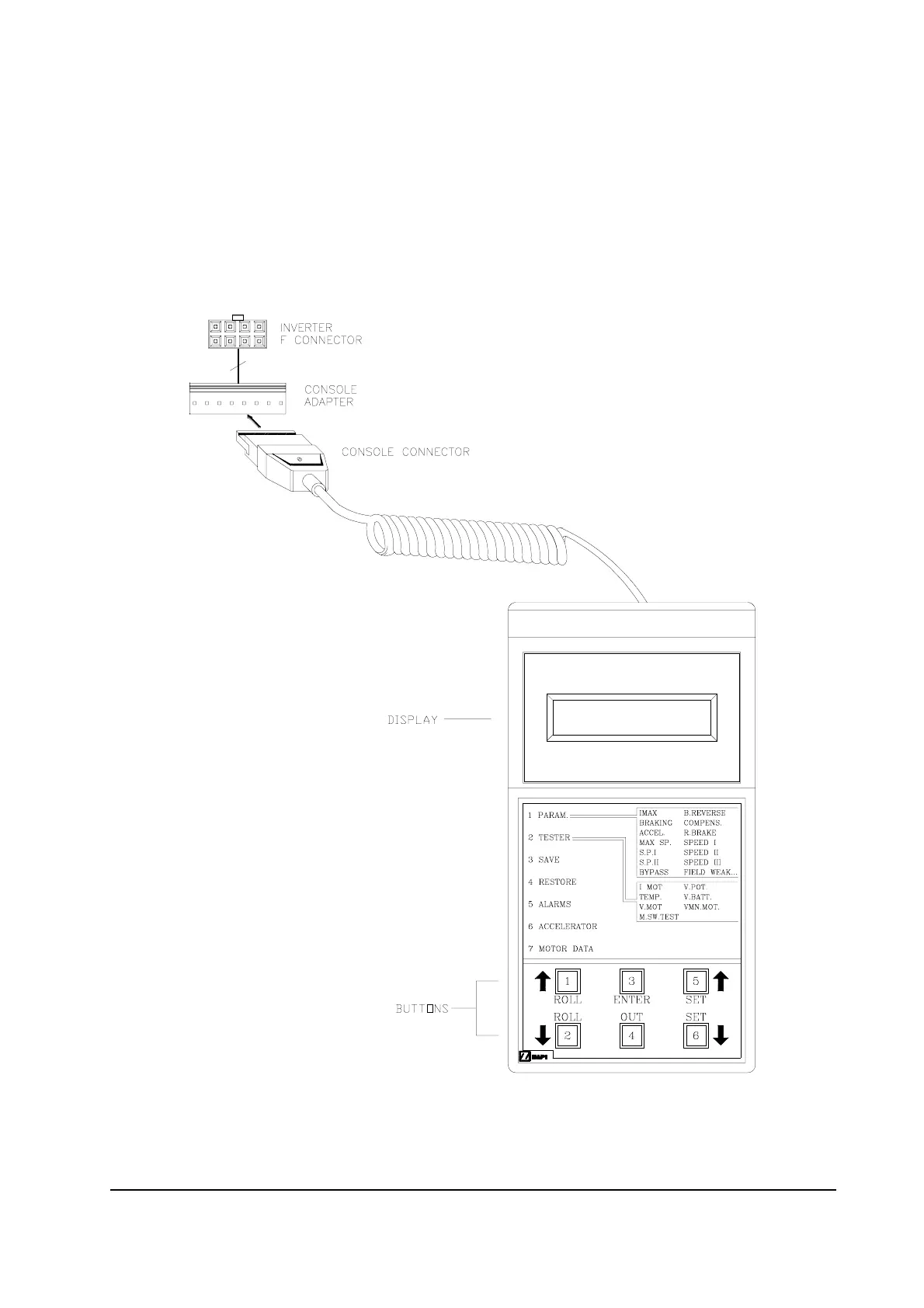

4.2 DESCRIPTION OF CONSOLE & CONNECTION
Digital consoles used to communicate with AC inverter controllers must be fitted with
EPROM CK ULTRA, minimum "Release Number 3.02".
